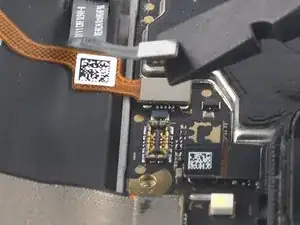

Battery Disconnection
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background
The Xiaomi Redmi Note 9S is an Android smartphone developed by Xiaomi Inc in 2020. It’s a mid-range phone, but it received generally good reviews from critics like Techradar.

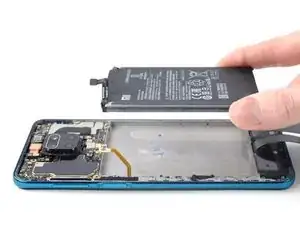

It contains up to 128 GB of internal storage and 6 GB RAM. Xiaomi Redmi Note 9 includes a 5020 mAh battery with permanent adhesive, making repair and replacement a bit difficult. It supports 18W fast charging, but no wireless charging.
Identification
This phone comes with three different color options: Aurora Blue, Glacier White, Interstellar Gray.
It features a 6.67-inch IPS LCD display and a plastic frame, with Gorilla Glass 5 front and a side-mounted fingerprint sensor. Additional features include accelerometer, gyro, and compass sensors.
Specifications
Release date: April 2020
Dimensions: 165.8 x 76.7 x 8.8 mm (6.53 x 3.02 x 0.35 in)
Weight: 209 g (7.37 oz)
Display:
- IPS LCD, HDR10, 450 nits (typ)
- 6.67 inches, 107.4 cm2 (~84.5% screen-to-body ratio)
- 1080 x 2400 pixels, 20:9 ratio (~395 ppi density)
Operating System: Android 10, MIUI 12
Processor: Qualcomm SM7125 Snapdragon 720G (8 nm)
Chipset: CPUOcta-core (2x2.3 GHz Kryo 465 Gold & 6x1.8 GHz Kryo 465 Silver)
RAM and Storage: 64GB/4GB RAM, 64GB/6GB RAM, 128GB/4GB RAM, 128GB/6GB RAM
Cameras:
- Rear-facing cameras:
- 48 MP, f/1.8, 26mm (wide), 1/2.0", 0.8µm, PDAF
- 8 MP, f/2.2, 119˚ (ultrawide), 1/4.0", 1.12µm
- 5 MP, f/2.4, (macro), AF
- 2 MP, f/2.4, (depth)
- Front-facing camera: 16 MP, f/2.5, (wide), 1/3.06" 1.0µm
Battery:
- Li-Po 5020 mAh
- Fast charging 18W
Sensors:
- Fingerprint (side-mounted)
- Gyro
- Accelerometer
- Electronic compass
Wireless Connectivity:
- Wi-Fi 802.11 a/b/g/n/ac, dual-band
- Bluetooth 5.0
- USB-C 2.0
