Apple USB Power Adapter Teardown

Geschrieben von: Juan Gonzalez

Veröffentlicht: 07/03/19

Kommentare: 0

Apple USB Power Adapter Teardown

Veröffentlicht: 07/03/19

Teardown

Einleitung

The Apple USB power adapter converts line power 100V-240V AC into a regulated 5V/1A DC supply. The 100V to 240V input voltage capability of the charger allows its use in different wall port supplies, making the charger adaptable.

Werkzeuge

Schritt 1

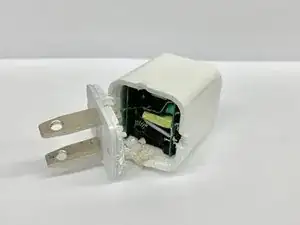

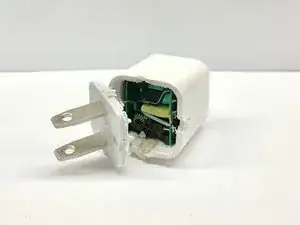

Use a hammer and a small chisel to carefully force the input panel open
Clamping the device helps prop the input panel open but, do not pull the panel away from the device forcefully, as there are small wires connected to the device components.
Be careful not to force the chisel into the device as you could damage internal components.

Schritt 2

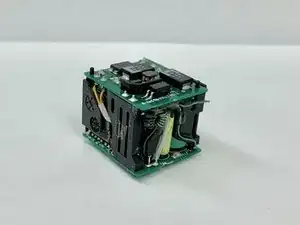

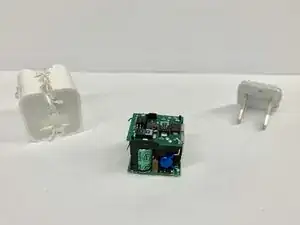

Use dyke and pliers to cut outside casing to pry open the shell and remove the circuitry.
Recommend using hand saw to cut around the plastic.
Be careful not to cut forcefully as to prevent the internal components from getting damaged.

Schritt 3

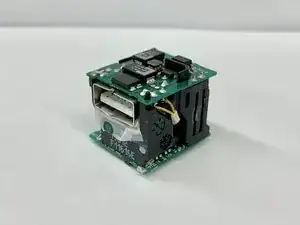

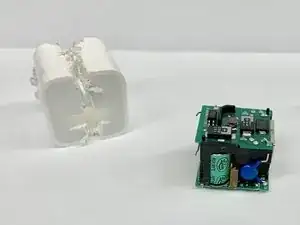

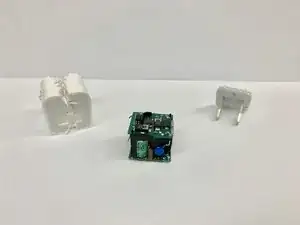

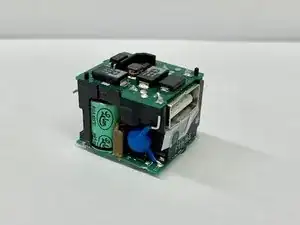

Isolate the internal electrical components from the casing
Recommend unsoldering the wires from the input panel.
For help desoldering connections, follow this useful guide on Wie man Lötverbindungen herstellt und entlötet.
Use caution when soldering. The heated tip may cause damage to the board, the components, or burn you.

Schritt 4

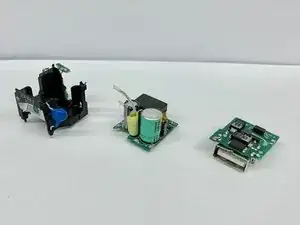

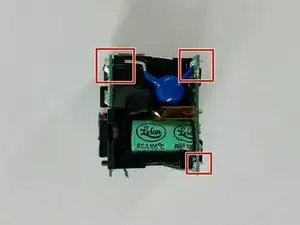

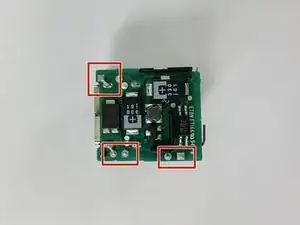

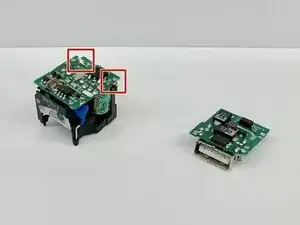

Unsolder components that connect to the bottom and top circuit boards.
Detach the top and bottom circuit boards from the plastic separator.
For help desoldering connections, follow this useful guide on Wie man Lötverbindungen herstellt und entlötet.
Use caution when soldering. The heated tip may cause damage to the board, the components, or burn you.
