The Parrot AR.Drone remote-controlled quadricopter recently landed on our teardown table.

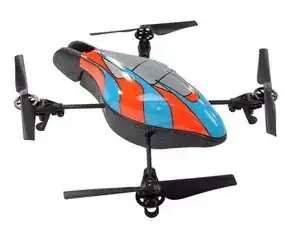

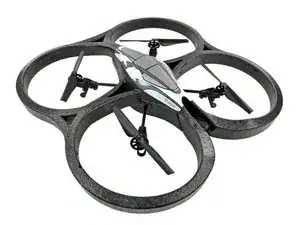

What's cooler than one quadricopter? Two quadricopters, of course! The AR.Drone comes with two hulls: an indoor unit with guards over the propellers (grey/white) and an outdoor unit (orange/blue).

You might notice the lack of a controller with this awesome gadget. That's because the controls are managed via an iPhone, iPod Touch, or iPad by using AR.Free Flight, an application available for download in the Apple App Store.

Android users can now enjoy the AR.Drone Android app from the Market!

Talk about repair-friendly; opening up the AR.Drone doesn't even require a screwdriver. (Compare this with some recent devices we have torn down!)

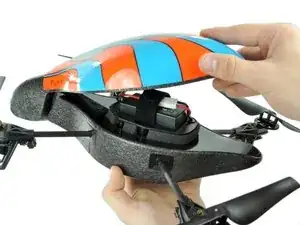

The hull is attached to the body by a pair of magnets; one in the hull and one on the body.

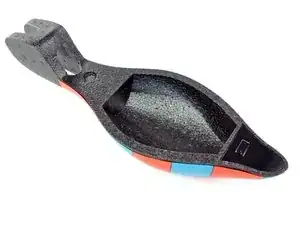

Much of the AR.Drone's body is made of expanded polypropylene (EPP), a common substance that is both extremely light and easily manufactured into complex shapes.

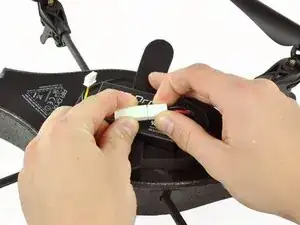

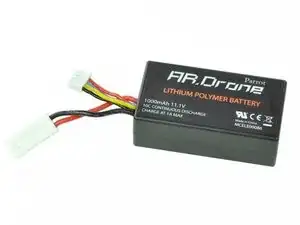

The 1000mAh 11.1V lithium polymer battery is attached via a connector, making it delightfully easy to remove.

The second connector is a balance charge connector, which ensures that each of the three battery cells is charging equally, thus optimizing capacity and prolonging battery life.

The battery contains a protection circuit module, which prevents it from discharging too rapidly, over charging, or short circuiting.

Parrot claims the battery will only last about 12 minutes after a full charge, which takes around 90 minutes. Taking your AR.Drone out to the park with only one battery won't get you much play time, unfortunately.

Next, we turn to the underside of the quadricopter.

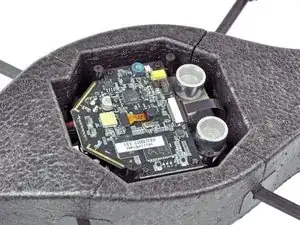

After removing four T6 Torx screws, the lower plate can be lifted off to reveal the motherboard and navigation board.

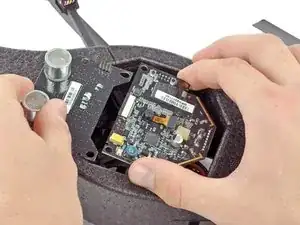

The navigation board is connected to the motherboard by eight pins and comes out without any hassle.

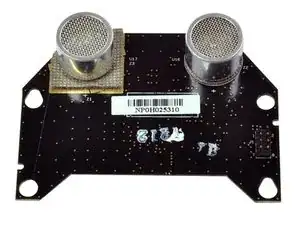

The two large mesh cylinders make up the ultrasound altimeter, which stabilizes the quadricopter within 6 meters of the ground.

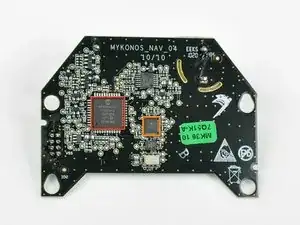

The back side of the navigation board contains the Microchip PIC24HJ16GP304 40MHZ 16-bit microprocessor.

The MEMS gyroscope, the Invensense IDG 500, is also found on this board.

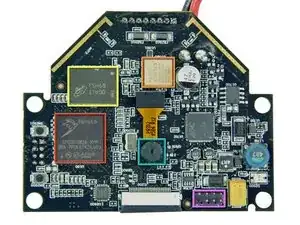

Front of motherboard:

Parrot 6 ARM9 468 MHz processor.

ROCm Atheros AR6102G-BM2D b/g Wi-Fi module.

Micron OGA17 D9HSJ

Vertical camera.

USB/serial port connector

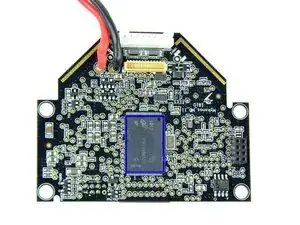

On the back:

Micron 29F1G08AAC

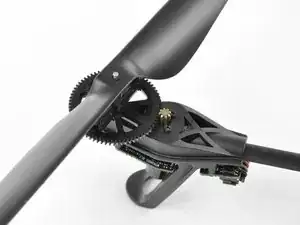

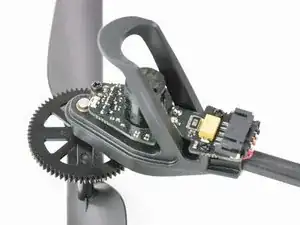

Each propeller assembly is made up of the propeller blade, gear, motor and motor controller board.

These are not your run-of-the-mill propellers. The design team behind these won a micro drone design contest put on by the French Army.

The propellers spin in different directions depending on the side they are mounted on, and are marked either C (clockwise) or A (anti-clockwise).

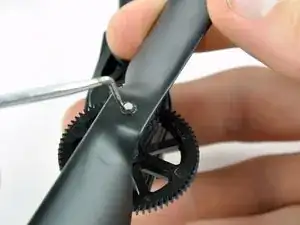

The propeller blade and gear are held in place by a small circlip on a stainless steel shaft.

Parrot sells a special circlip removal tool, but we opted for a pick we had lying around the office.

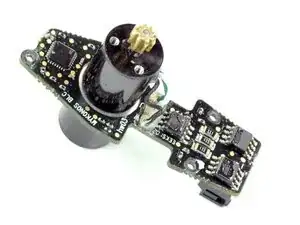

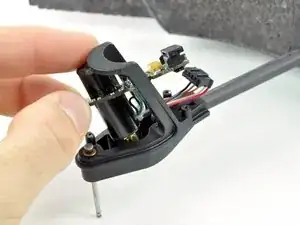

The four motors and their electronic controllers are each held to the central cross by six screws and a connector.

Each brushless motor runs at 28,000 RPM while the AR.Drone is hovering, and as fast as 41,400 during full acceleration.

The speed of the motor is managed by the electronic controller, which includes an 8-bit microcontroller and a 10-bit ADC.

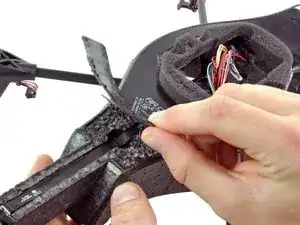

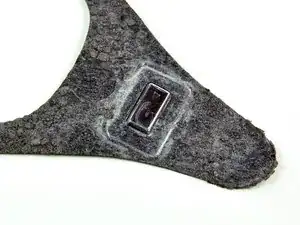

The arduous task of peeling the protection blister from the body reveals the camera ribbon cable and the second magnet that holds the hull in place.

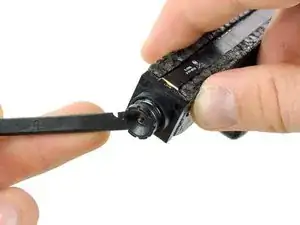

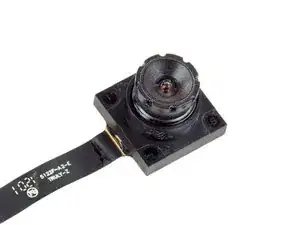

A little bit of prying and the front-facing VGA camera comes right off.

The 93 degree wide-angle camera can stream its video and images directly to your iPhone, iPad, or iPod Touch.

With a resolution of 640x480 pixels, we doubt anyone will be filming HD movies with the AR.Drone's camera.

With Augmented Reality, objects captured by the camera become part of the AR.Flying Ace game.

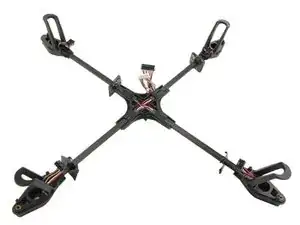

The central cross easily pulls right out of the foam shell.

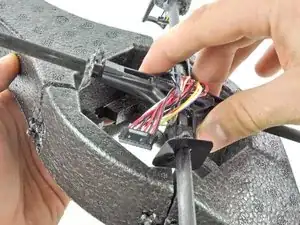

The two sets of wires in the central cross are responsible for controlling and providing power to the four motors.

The tubes of the cross are made of carbon fiber to save weight and provide plenty of structural rigidity.

The other plastic pieces are made of polyamide 6,6 (PA66), more commonly known as nylon.

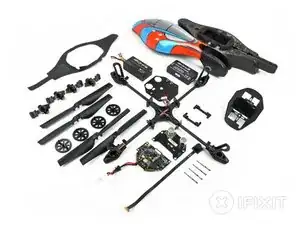

Parrot AR.Drone Repairability: 9 out of 10 (10 is easiest to repair).

The battery and upper case come off easily without removing a single screw.

Almost everything is attached via ribbon cable connectors and screws, making replacement much more feasible.

Parrot provides replacement parts and repair videos for common problems. Repair wouldn't be very easy without both of these.

The c-clips on each propeller assembly are very hard to remove without the correct tool.

It's a pain to reapply adhesive after removing all the adhered parts.
