iPhone 3GS Teardown

Geschrieben von: Luke Soules

Veröffentlicht: 19/06/09

Kommentare: 57

iPhone 3GS Teardown

Veröffentlicht: 19/06/09

Teardown

Einleitung

To get all the latest updates as we're doing the teardown, follow us on twitter! We also have some video clips uploaded through the iPhone 3GS courtesy of our fellow friend Richard Lai. Many thanks to our friends at MacWorld UK, who let us use their office and equipment for the teardown.

Werkzeuge

Schritt 1

We have the iPhone in hand!
We didn't have to travel quite as far as last year to get it. This year, it was only 5,400 miles away.
We lost the corporate jet due to the economic downturn. Our CEO had to settle for an Italian bi-plane. 47 hours later he was in London.
[Apple claims the iPhone 3GS is "up to 2x faster." Why is the 3GS faster? We'll find out soon enough. According to rumors, the 3GS has a 600 MHz processor, 50% faster than the processor in the iPhone 3G.

Schritt 2

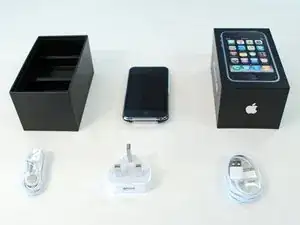

We won't bore you with a lengthly unboxing, since there's nothing new to see here.

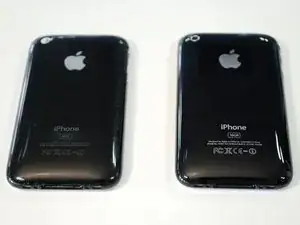

Which one's the 3GS? They look identical.
Apple doesn't make it easy to identify your iPhone 3GS, as they're all labeled just "iPhone." However, the 3G is model A1241, while the 3GS is model A1303.

Actually, it's pretty easy to tell. The iPhone 3G S has text on the back that is MUCH easier to read because it's white and not gray this time around.

dagamer34 -

Zitat von dagamer34:

Actually, it's pretty easy to tell. The iPhone 3G S has text on the back that is MUCH easier to read because it's white and not gray this time around.

Sorry thats wrong!! Its gray (silver) as well!!

geniusbar -

Where is the "magnetometer" or "compass". Is it software only application? SW only can't be *that* accurate!

divyamistry -

Schritt 3

The original iPhone was very difficult to open, but we expect the 3GS (like the 3G) to be quite serviceable. There are still two visible screws on the bottom of the phone, which is a good sign for easy opening.

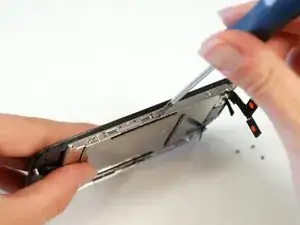

Remove the two bottom screws with a Phillips #00 screwdriver.

Schritt 4

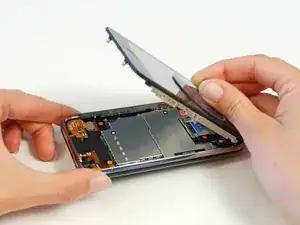

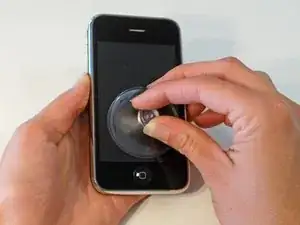

A small suction cup is your friend. A large suction cup may also be a fun toy.

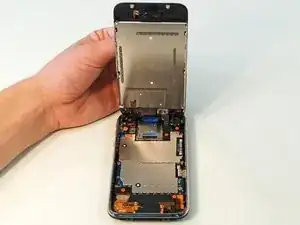

There are seven numbered connectors on the 3GS, up from six on the 3G. Connector number seven is in the lower right corner, just above the dock connector.

air gun/blow dryer if more then just the screen is coming up

vashtbh -

Schritt 5

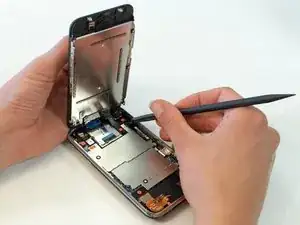

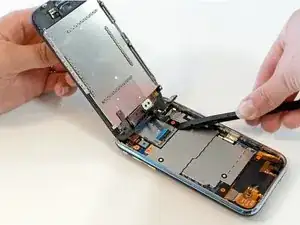

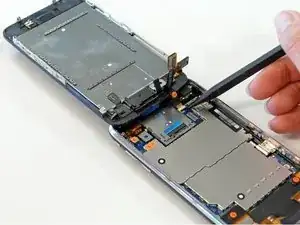

There are three cables holding the LCD and digitizer to the rest of the logic board. Disconnecting them is as easy as 1-2-3.
1: LCD panel
2: Digitizer
3: Ear speaker

Schritt 6

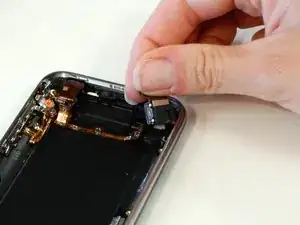

We're looking forward to the improved 3 megapixel camera on the 3GS. According to our good friend Richard Lai, "Camera quality is much improved from the 3G one, close up shots were possible down to about 5cm, brightness adjusts well when picking focus area."
Fortunately, as in both the original and 3G iPhones, the camera's a separate component, so removal is possible if necessary for security purposes.
In each image, the left photo is from the iPhone 3G, the right photo is from the iPhone 3GS.

Schritt 7

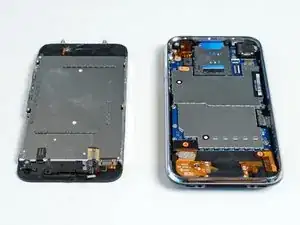

Here's the two halves.
All the chips on the logic board are hidden beneath two large EMI shields. We'll have those removed in just a bit.

Schritt 8

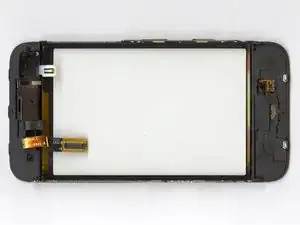

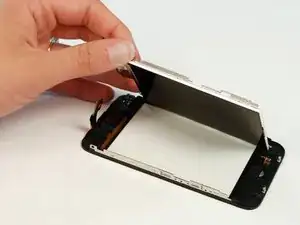

Just like the iPhone 3G, the LCD is pretty easy to replace. After removing 6 screws, the LCD simply lifts out.
On the iPhone 3G, we see a lot more cracked digitizers than cracked LCDs. Replacing the digitizer is a little more work, and requires breaking out a heat gun or hair dryer.

Schritt 9

Here's the fabled "Do not remove" sticker. It didn't stop us last year, and it's certainly not going to stop us this year.

Does removing that sticker mean apple wont work on your phone at all, my warranty is already gone

smitty92 -

Can i add the new style camera to my 3G phone?

blademan1331 -

Zitat von blademan1331:

Can i add the new style camera to my 3G phone?

Chances are slim to none that the new camera would work in the old iPhone 3G without modifying other hardware.

Miroslav Djuric -

Where is the Antenna on the 3GS located??

WcBones -

i need to remove the bezel

austin -

Does anyone know what that little metal stub in the very upper right hand corner of Step 11 picture does? Is it only meant to tuck behind the bezel to keep the motherboard down during assembly or does it have any function electronically? Mine fell of and I reattached it with a drop of solder underneath and now my PC doesn't recognize my phone. Not sure if it's something else or not.

Dmitry -

I believe the antena is at the top left by the headphone jack. But I could be wrong

austin -

Schritt 10

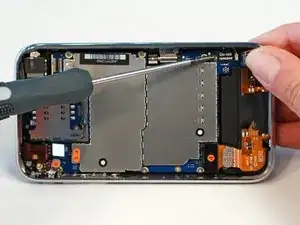

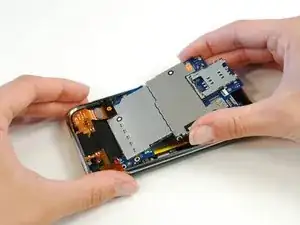

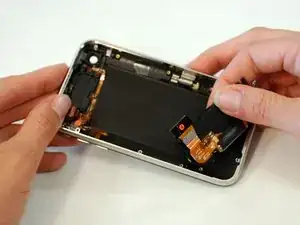

Removing the logic board. Like the 3G, there is a single large PCB with all components.

Schritt 11

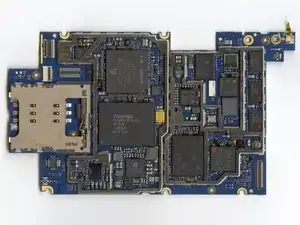

The main logic board. There's a lot packed in here.
The Apple-logo chip is the primary Samsung ARM processor.
The 16 GB of Toshiba flash are now on the front of the board, just below the Samsung ARM.
phoneWreck sent us a great component diagram (second picture). They performed a thorough chip analysis of the iPhone 3GS, so check out their site!

The Nor chip is listed as (Infineon-36MY1EE) all over the web but i am confused with INTEL it has the i sign on it which INTEL has on it please someone give details about it. Its INFINEON OR INTEL?

cell -

Zitat von cell:

The Nor chip is listed as (Infineon-36MY1EE) all over the web but i am confused with INTEL it has the i sign on it which INTEL has on it please someone give details about it. Its INFINEON OR INTEL?

The NOR chip wit "i" on it is from Numonyx (Intel and ST Flash Division Spin-off Company)

sun -

Very Nice! So what do u think the odds are for droppin a 3Gs board in a 3G? ;) Or is not even worth it

Vette -

Thanks for the teardown. Are there any distinctive marks on the camera that would shed more light on its origin and specs?

easp -

who is the provider for touch screen controller

pawan2019 -

Zitat von sun:

The NOR chip wit "i" on it is from Numonyx (Intel and ST Flash Division Spin-off Company)

Thanx mate

cell -

Zitat von Vette:

Very Nice! So what do u think the odds are for droppin a 3Gs board in a 3G? ;) Or is not even worth it

firmware issues

smitty92 -

the block diagram provided by phonewreck is incomplete and only shows the 3G chips for the RF and excludes the GSM/EDGE components. not a thorough job. they need to redo it.

ejlwireless -

What about the compass? Is it integrated to GPS or is a dedicated IC?

HQuest -

Schritt 12

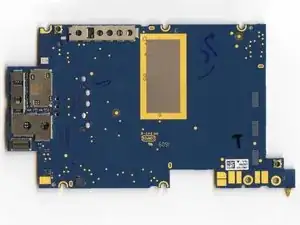

The other side of the logic board. You can see the battery contact pads in the lower right corner. Apple was again kind enough to not solder the battery to the logic board.

Can you publish a high res picture of the other side of the logic board showing the open shildings where the bluetooth parts are? I can see two still shielded areas there on the left side and on the top side of the PCB.

StefRi -

the tiny shields are vital for iphone power up?

esteban david cabrera mogro - 28/12/14

Schritt 13

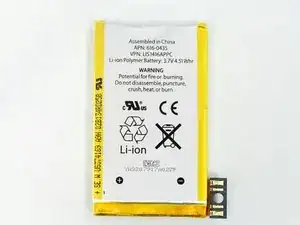

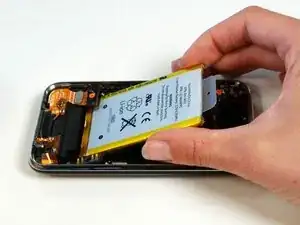

Apple promises improved battery life with the 3GS. The battery is listed as 3.7V and 4.51 Whr. This comes out to 1219 mAh, compared to 1150 mAh on the 3G. That's only a 6% increase.

As far as the battery itself goes, is there a replacement unit that will fit in the iphone, yet offer greater battery life. The problem I imagine is physical size versus charge density and heat released by the battery.

Any ideas or help?

id10t -

Schritt 14

Video recording is a long-overdue feature of the iPhone 3GS. The 3GS records video at 640x480 resolution and 30 fps.
The video recording quality appears acceptable, although not exceptional. You can see a video (taken using another iPhone 3GS) of us opening the phone.

You guys know who made the image sensor? Trying to figure out if it's OmniVision's TrueFocus camera since DSCs don't even seamlessly macro focus like the iPhone's does.

Nice job!

thisguy -

Zitat von thisguy:

DSCs don't even seamlessly macro focus like the iPhone's does.

Sony's DSCs have had that feature for a while now (at least half a year?)

blufire -

I noticed a new cable connection from the bottom antenna housing on the right. Its one of those small round plugs. It is going into the very bottom right hand side of the main board. Any idea what this is for?

paulknight -

Zitat von blufire:

Sony's DSCs have had that feature for a while now (at least half a year?)

Ah, I missed that. Thanks! You know the model?

Still, I'm wondering how that feature is being crammed into a max 0.4" module height. Surely, there'd be other phones with the same capability. 1/4" 3mp is pretty old hat. EETimes says it's a 3mp OmniVision autofocus module, but that could mean any number of chips including the TrueFocus one.

It just seems that if the DigiTimes rumor is fully true (which 1/2 seems to be), that Apple will be using OmniVision's 5mp TrueFocus also since that's the only one available for the 1/4" form factor (would they really use 1/3"? can it fit?), I'm wondering why they wouldn't use the 3mp version of TrueFocus, too.

PS It looks like there's no curvilinear distortion in the iPhone's pics. Am I just seeing things?

thisguy -

i need more detail on the camera?

is from OmniVision? there are a OV630 image processor?

thanks

http://www.ovt.com/products/truefocus.ph...

Latente -

Zitat von Latente:

i need more detail on the camera?

is from OmniVision? there are a OV630 image processor?

thanks

http://www.ovt.com/products/truefocus.ph...

Well, EETimes says it's an OmniVision 3mp autofocus.

http://www.eetimes.com/news/semi/showArt...

This really doesn't help much, considering the wide variety of abilities inherent in a Wavefront Coded system such as the TrueFocus product line (1/4" 3mp and 1/4" 5mp) and the wide variety of 1/4" 3mps that OmniVision offers. I still can't find a cameraphone-class module that focuses in the way that iPhone does (into and out of macro mode seamlessly), so TrueFocus seems the most logical explanation. Also, this may be poor estimation on my part, but it looks like the iPhone 3gs has no curvilinear distortion, implying TrueFocus again.

http://www.freepatentsonline.com/y2006/0...

PS The 2-chip TrueFocus solution is all but dead. It looks like the 5mp TrueFocus may be adopted by some unnamed future Apple device and Storm 2. Who knows?

thisguy -

Dude, go cut your nails.

Gross...

M3ta -

Zitat von M3ta:

Dude, go cut your nails.

Gross...

Those are the hands of a dudette :)

Miroslav Djuric -

Schritt 15

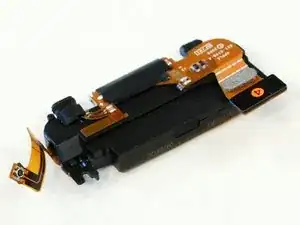

The 3GS offers Voice Control. We're not sure yet why this feature couldn't be added via software to earlier iPhones. Perhaps the voice recognition requires a better microphone than in earlier iPhones or a lot of processing power, or maybe Apple just wanted to differentiate the 3GS.
According to Richard Lai, the "Chinese (Cantonese) voice control works, but took a while to work out the magic words as there is no guide released yet (not out in Hong Kong until early July)." He also tested the "Chinese (Mandarin) and Chinese (Taiwanese), although the latter didn't work as well since [he doesn't] do the accent well."

Any sign on the circuit boards of the hypothetical DSP that has been proposed as required for the voice control feature?

rmohns -

You guys are awesome. Thanks!

asdf1234 -

Zitat von rmohns:

Any sign on the circuit boards of the hypothetical DSP that has been proposed as required for the voice control feature?

The ARM chip is based on the the Cortex-A8, which includes a powerful DSP called NEON as a built in part of the A8 chip architecture. It doesn't need an external DSP. The A8 and NEON were announced several years ago, you can google more info.

adrianco -

Zitat von adrianco:

The ARM chip is based on the the Cortex-A8, which includes a powerful DSP called NEON

NEON is not a DSP. It's more accurate to describe NEON as a set of SIMD instructions, implemented in a separate but tightly-coupled section of the processor.

nonlocal -

I read in another forum that voice control is something quite processor-heavy, so maybe they needed the 600Mhz-piece to pull it off acceptably...

...but that's only what I've read, I have no idea...

Xav0r -

what is this part? it appears that i have severed a sodder and am wondering if i can find a replacement.

tim -

Schritt 16

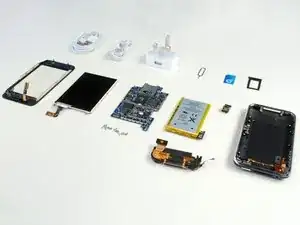

Here's all the parts. We'll continue to perform further analysis, so check back for updates, or follow @ifixit on Twitter.

Thanks for yet another great teardown :)

blufire -

How easy is it after the breakdown you have already done to replace the rear black plastic case as I still see a lot inside this

Thanks

GoldPlating -

Zitat von GoldPlating:

How easy is it after the breakdown you have already done to replace the rear black plastic case as I still see a lot inside this

Thanks

It shouldn't be too hard to replace the rear plastic case at this point. You can look at the iPhone 3G rear case replacement to get an idea of what else needs to be done. However, the bigger problem is finding a rear case to replace yours with. We don't sell them because we can't find any that meet our quality standard. Beware of retailers trying to sell rear panels for the 3G or 3GS "without internal parts" -- those panels are a waste of money, as they will not mate properly with the front panel.

Miroslav Djuric -

Zitat von miro:

It shouldn't be too hard to replace the rear plastic case at this point. You can look at the iPhone 3G rear case replacement to get an idea of what else needs to be done. However, the bigger problem is finding a rear case to replace yours with. We don't sell them because we can't find any that meet our quality standard. Beware of retailers trying to sell rear panels for the 3G or 3GS "without internal parts" -- those panels are a waste of money, as they will not mate properly with the front panel.

jdesorme -

Zitat von miro:

It shouldn't be too hard to replace the rear plastic case at this point. You can look at the iPhone 3G rear case replacement to get an idea of what else needs to be done. However, the bigger problem is finding a rear case to replace yours with. We don't sell them because we can't find any that meet our quality standard. Beware of retailers trying to sell rear panels for the 3G or 3GS "without internal parts" -- those panels are a waste of money, as they will not mate properly with the front panel.

I would like to replace the chrome bezel on my iPhone 3G. Is it easy to detach the old bezel and reattach the new one to the real panel, or is it glued to the frame?

jdesorme -

Meh I would love to put a 3GS hardware inside a 1st gen aluminum case :D

HQuest -

Is there any way to order the parts and build an iPhone or get a broken phone and replace most of the parts? If so, how would you get software on it? Would it be unlocked?

Tim Voruz -

Schritt 17

iPhone 3GS Repairability Score: 7 out of 10 (10 is easiest to repair).
LCD and front glass are not fused and can be replaced individually.
Standard Phillips screws used throughout.
Battery is buried under the logic board, making it difficult to replace.
