Background and Identification

The iPhone 12 Pro Max was released on November 13th, 2020 starting at $1,099 USD, the same price as the iPhone 11 Pro Max before it, but the base configuration now grants 128 GB of storage: double the capacity of the previous base model. It also features an upsized 6.7” Super Retina XDR OLED display with an upgraded resolution versus the 6.5” display in the iPhone 11 Pro Max. All four iPhones in Apple’s 2020 lineup dropped their curved edges in favor of a flat stainless steel form-factor and add 5G connectivity and a new MagSafe charging system. For the first time, Apple opted not to include a power adapter or EarPods in the box for any of the iPhone 12 series—only a Lightning to USB-C cable. The iPhone 12 Pro Max is offered in updated versions of the classic Gold and Silver color options, as well as Graphite and Pacific Blue.

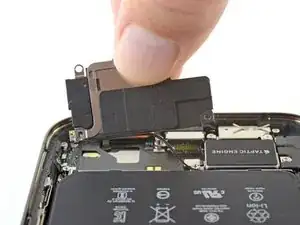

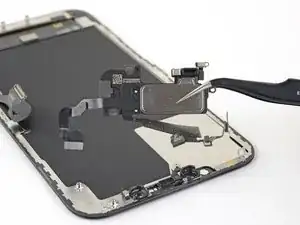

The most often replaced iPhone 12 Pro Max parts include the battery, screen, speakers, and lenses.

Specifications

Announce date: October 13, 2020

Operating System: iOS 14

Display:

  • 6.7-inch “Super Retina XDR” OLED display
  • Ceramic Shield glass technology
  • Multi‑touch
  • Haptic Touch
  • 2778 × 1284 pixel resolution (458 PPI)
  • 2,000,000:1 contrast ratio (typical)
  • True Tone
  • P3 wide color gamut
  • 800 nits max brightness; 1200 nits max HDR (typical)
  • Fingerprint-resistant oleophobic coating

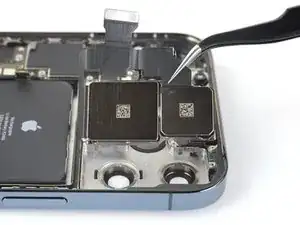

Triple primary camera:

  • True Tone flash
  • LiDAR scanner
  • Apple ProRAW
  • 4K 10-bit HDR video recording with Dolby Vision HDR, up to 60 fps
  • 5x optical zoom range
  • Wide-angle module
    • 12 MP
    • ƒ/1.6 aperture
    • Sensor-shift optical image stabilization (OIS)
    • Autofocus with 100% Focus Pixels
    • Seven-element lens
  • Ultra-wide module (120° field of view, 2x optical zoom out)
    • 12 MP
    • ƒ/2.4 aperture
    • Five-element lens
  • Telephoto module (2.5x optical zoom in)
    • 12 MP
    • ƒ/2.2 aperture
    • Optical image stabilization (OIS)
    • Six-element lens
    • 65-mm equivalent

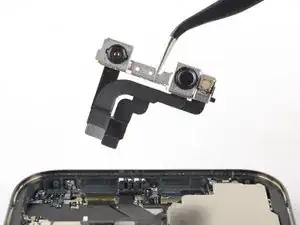

TrueDepth selfie camera with Face ID:

  • 12 MP
  • ƒ/2.2 aperture
  • 4K video recording, up to 60 fps
  • Retina Flash

Processor: A14 Bionic with Neural Engine

  • 5 nm process
  • 6-core CPU
  • 4-core GPU

RAM: 6 GB

Storage: 128, 256, or 512 GB

Sensors:

  • Face ID
  • Compass
  • Barometer
  • Three-axis gyro
  • Accelerometer
  • Proximity sensor
  • Ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 with 2x2 MIMO
  • 5G (sub-6 GHz and mmWave)
  • Gigabit LTE with 4x4 MIMO and LAA
  • Bluetooth 5.0
  • Apple-designed U1 Ultra Wideband chip for spatial awareness
  • NFC

Dimensions: 6.33 × 3.07 × 0.29 in (160.8 × 78.1 × 7.4 mm)

Weight: 226 g (7.97 oz), 228 g (8.03 oz) mmWave model

Water Resistance: IP68

Colors: Silver, Graphite, Gold, Pacific Blue
