Identification and Background

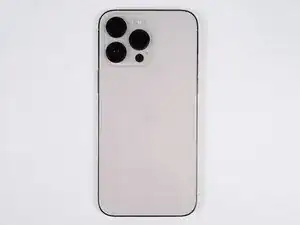

The iPhone 14 Pro Max was announced on September 7th, 2022, and released the week after—on September 16th. It has a 6.7" Always-On ProMotion OLED and the new A16 Bionic chip. The Pro Max also features a Pro Camera System with a 48 MP Main camera, an Ultra Wide, and Telephoto camera as well as a larger aperture across. The iPhone Pro-line’s Dynamic Island hides the top sensors and facetime camera on the display with a reactive black pill-shaped area.

Technical Specifications

Dimensions: 160.7 × 77.6 × 7.85 mm (6.33 × 3.05 × 0.31 in)

Weight: 240 g (8.47 oz)

Water Resistance: IP68

Colors: Space Black, Silver, Gold, or Deep Purple

Operating System: iOS 16

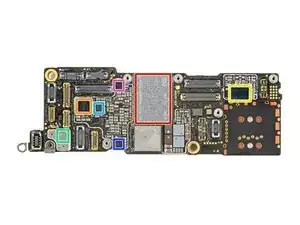

Processor: A16 Bionic chip

  • 6‑core CPU with 2 performance and 4 efficiency cores
  • 5‑core GPU
  • 16‑core Neural Engine

RAM: 6 GB

Storage: 128, 256, 512 GB, or 1 TB

Battery: 4323 mAh, 16.68 Wh

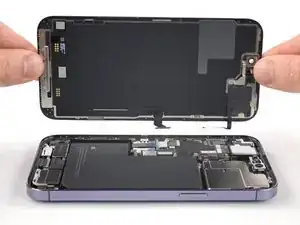

Display:

  • 6.7-inch “Super Retina XDR” OLED
  • Ceramic Shield glass technology
  • Multi‑touch
  • Haptic Touch
  • 2796 × 1290 pixel resolution (460 ppi)
  • 2,000,000:1 contrast ratio (typical)
  • True Tone
  • P3 wide color gamut
  • 1000 nits max brightness, 1600 nits peak (HDR), 2000 nits peak (outdoor)
  • Fingerprint-resistant oleophobic coating

Pro camera system:

  • Main module
    • 48 MP
    • ƒ/1.78 aperture
    • Sensor-shift optical image stabilization (OIS)
    • Autofocus with 100% Focus Pixels
    • Seven-element lens
  • Ultra-wide module (120° field of view, 2x optical zoom)
    • 12 MP
    • ƒ/2.2 aperture
    • Autofocus with 100% Focus Pixels
    • Six-element lens
  • Telephoto (3x)
    • 12 MP
    • ƒ/2.8 aperture
    • Sensor-shift optical image stabilization (OIS)
    • Six-element lens

TrueDepth selfie camera with Face ID:

  • 12 MP
  • ƒ/1.9 aperture
  • ProRes video up to 4K at 30 fps
  • Six‑element lens
  • Retina Flash

Sensors:

  • Face ID
  • Barometer
  • High dynamic range gyro
  • High-g accelerometer (Crash Detection)
  • Proximity sensor
  • LiDAR
  • Dual ambient light sensor

Wireless Connectivity:

  • 802.11ax Wi‑Fi 6 with 2x2 MIMO
  • 5G (sub-6 GHz in all models, mmWave only US-model)
  • Gigabit LTE with 4x4 MIMO (LAA only US-model)
  • Bluetooth 5.3
  • Apple-designed U1 Ultra Wideband chip for spatial awareness
  • NFC with reader mode
  • Express Cards with power reserve
