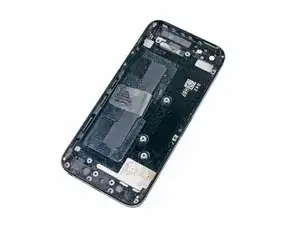

Задняя часть корпуса

Задняя часть корпуса

Wallpapers

Want to see the inside of your phone without opening it up? Check out our see-through iPhone 5 wallpapers.

Background

The iPhone 5 is Apple's 6th iteration of the iPhone. Announced on September 12, 2012 at an Apple event at the Yerba Buena Theater in San Francisco, the iPhone 5 improves the body styling of the iPhone 4 line by increasing the screen size and reducing the weight and thickness of the device. The update also saw the inclusion of LTE cellular wireless networking and the introduction of a new, proprietary I/O connector—the Lightning connector. Repair of this device is similar to the previous models, requiring screwdrivers and prying tools.

Identification

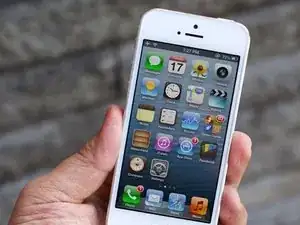

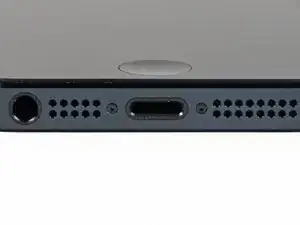

It's easy to distinguish the iPhone 5 from previous models by its 4" display, aluminum-and-glass rear panel, and all-new Lightning connector. In addition, the iPhone's headphone jack was moved from the top to the bottom of the phone, just like the iPod Touch lineup.

Technical Specifications

Announce date: September 12, 2012

Model: A1428, A1429

Developer: http://www.apple.com

Operating System: iOS 6.0 - iOS 10.3.4

Display (Retina Display):

  • 4 in (102 mm)
  • Multitouch widescreen
  • 640 x 1136 pixel resolution at 326 ppi
  • 800:1 contrast ratio
  • LED-backlit IPS TFT LCD
  • Fingerprint-resistant oleophobic coating on the front

Camera: Contains both front and rear-facing cameras.

  • Front Camera
    • Portrait photos at 1.2 MP
    • VGA (720p) at 30fps
    • Support for FaceTime over cellular + wifi
  • Rear Camera
    • 8 MP
    • HD Video (1080p) at 30fps
    • LED Flash
    • IR filter
    • 5 element lens
    • Facial recognition / image stabilization
    • Panorama photo
    • Photo while recording video

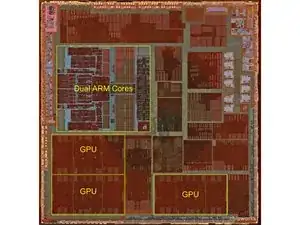

Processor: Apple A6

RAM: 1 GB DDR2

Storage: 16, 32, 64 GB Flash Memory

Wireless Connectivity:

  • Integrated 802.11 a/b/g/n (Dual band 2.4 GHz and 5 GHz)
  • Bluetooth 4.0
  • GSM model A1428: UMTS/HSPA+/DC-HSDPA (850, 900, 1900, 2100 MHz); GSM/EDGE (850, 900, 1800, 1900 MHz); LTE (Bands 4 and 17)
  • CDMA model A1429: CDMA EV-DO Rev. A and Rev. B (800, 1900, 2100 MHz); UMTS/HSPA+/DC-HSDPA (850, 900, 1900, 2100 MHz); GSM/EDGE (850, 900, 1800, 1900 MHz); LTE (Bands 1, 3, 5, 13, 25)
  • GSM model A1429: UMTS/HSPA+/DC-HSDPA (850, 900, 1900, 2100 MHz); GSM/EDGE (850, 900, 1800, 1900 MHz); LTE (Bands 1, 3, 5)
  • Digital Compass
  • GPS and GLONASS signal reception

Battery: 3.8V 1440 mAh lithium-ion polymer

Dimensions: 4.87 × 2.31 × 0.30 in (123.8 × 58.6 × 7.6 mm)

Weight: 112 g (4.0 oz)

Colors: Black/Slate or White/Silver
