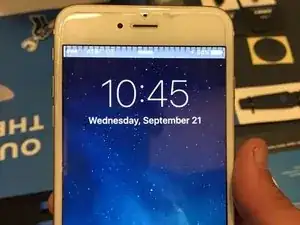

How to Force Restart an iPhone 6 Plus
Tools
These are some common tools used to work on this device. You might not need every tool for every procedure.
Wallpapers
Want to see the inside of your phone without opening it up? Check out our HD see-through iPhone 6 Plus wallpapers.
Background and Identification
The iPhone 6 Plus is part of the iPhone line, succeeding the iPhone 5s. Apple held an event to formally introduce the phone (and its little brother, the iPhone 6) on September 9, 2014. Notable features include a new 5.5" Retina HD display, an updated body styling that is .5 mm thinner than the 5s, and NFC capability for Apple's new mobile payment system Apple Pay. The iPhone 6 Plus also features expanded fitness tracking abilities with a new fitness-tracking application powered by the updated M8 motion coprocessor and a barometer used to sense elevation. The 5.5" screen on this iPhone is the larger version of the iPhone 6.
Specifications
Announce date: September 9, 2014
Model: A1522, A1524
Developer: Apple Inc.
Operating System: iOS 8
Display (Retina HD Display):
- 5.5 in (139.7 mm) LED-backlit widescreen
- Multi‑touch display with IPS technology
- 1920-by-1080-pixel resolution at 401 ppi
- 1300:1 contrast ratio (typical)
- 500 cd/m2 max brightness (typical)
- Full sRGB standard
- Dual-domain pixels for wider viewing angles
- Fingerprint-resistant oleophobic coating on front
Fingerprint reader: Touch ID fingerprint reader
Camera: Contains both front and rear facing cameras.
- Rear-facing iSight camera
- 8 MP with 1.5µ pixels
- Autofocus with Focus Pixels
- ƒ/2.2 aperture
- Optical image stabilization
- 1080p HD video recording (30 fps or 60 fps)
- Slo-mo video (120 fps or 240 fps)
- 3x zoom
- True Tone flash
- Five-element lens
- Hybrid IR filter
- Backside illumination sensor
- Sapphire crystal lens cover
- Auto image stabilization
- Auto HDR for photos and videos
- Front-facing Facetime camera
- 1.2-megapixel photos (1280 by 960)
- ƒ/2.2 aperture
- 720p HD video recording
- Backside illumination sensor
- Auto HDR for photos and videos
Processor: 1.39 GHz Apple A8 chip with 64 bit architecture and M8 motion coprocessor
RAM: 1 GB LPDDR3
Storage: 16, 64, 128 GB Flash Memory
Sensors:
- Touch ID
- Barometer
- Three-axis gyro
- Accelerometer
- Proximity sensor
- Ambient light sensor
Wireless Connectivity:
- Integrated 802.11 a/b/g/n/ac (Dual band 2.4 GHz and 5 GHz)
- Bluetooth 4.0
- GSM, CDMA, 3G, EVDO, HSPA+, LTE
- Digital Compass
- GPS and GLONASS signal reception
Dimensions: 6.22 × 3.06 × 0.28 in (158.1 × 77.8 × 7.1 mm)
Weight: 172 grams (6.07 oz)
Colors: Space Gray, Silver, and Gold
Troubleshooting
- Diagnose any issues you may be having with your iPhone 6 Plus using our iPhone 6 Plus Troubleshooting Guide.
- Diagnose and repair screen backlight issues with our iDevice Backlight Troubleshooting Page.
