Background and Identification
The iPhone 6s Plus' successor, the iPhone 7 Plus was formally announced by Apple on September 7, 2016. New features include a quad-core system-on-chip with improved system and graphics performance, an updated display, IP67 water and dust resistance, and an exclusive dual-camera system that sets it apart from its smaller sibling, the standard iPhone 7. Additional features include stereo speakers and upgraded cameras. With all the new additions, Apple decided to remove the 3.5 mm headphone jack, but included an adapter, along with earphones that connect to the Lightning port as an alternative.
Specifications
Announce date: September 7, 2016
Model: A1661, A1784, A1785
Developer: Apple Inc.
Operating System: iOS 10
Display (Retina HD Display with 3D Touch):
- 5.5 in (139.7 mm) LED-backlit widescreen
- Multi‑touch display with IPS technology
- 1920-by-1080-pixel resolution at 401 ppi
- 1300:1 contrast ratio (typical)
- 625 cd/m2 max brightness (typical)
- Dual-domain pixels for wide viewing angles
- Fingerprint-resistant oleophobic coating
- Support for display of multiple language and characters simultaneously
- Display Zoom
- Reachability
Splash, Water, and Dust Resistant: Rated IP67 under IEC standard 60529
Camera: Contains both front and rear facing cameras.

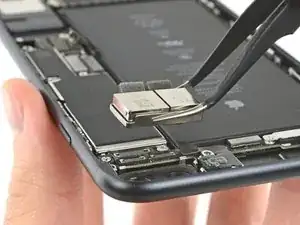

- Two rear-facing cameras
- 12-megapixel wide-angle camera with ƒ/1.8 aperture
- 12-megapixel telephoto camera with ƒ/2.8 aperture
- Digital zoom up to 10x
- Optical Zoom at 2x
- Optical image stabilization
- Six-element lens
- Quad-LED True Tone flash
- Panorama (up to 63 megapixels)
- Sapphire crystal lens cover
- Backside illumination sensor
- Hybrid IR Filter
- Autofocus with Focus Pixels
- Tap to focus with Focus Pixels
- Live Photos with stabilization
- Wide color capture for photos and Live Photos
- Improved local tone mapping
- Body and face detection
- Exposure Control
- Noise reduction
- Auto HDR for photos
- Auto image stabilization
- Burst mode
- Timer mode
- Photo geotagging
- Front-facing Facetime camera
- 7-megapixel photos
- 1080p HD video recording
- Retina Flash
- ƒ/2.2 aperture
- Wide color capture for photos and Live Photos
- Auto HDR
- Backside illumination sensor
- Body and Face detection
- Auto image stabilization
- Burst mode
- Exposure control
- Timer mode
- Video Recording
- 4K video recording at 30fps
- 1080p HD video recording at 30fps or 60fps
- 720p HD video recording at 30fps
- Optical image stabilization for video
- Optical zoom at 2x
- Quad-LED True Tone Flash
- Slo-mo video support for 1080p at 120fps and 720p at 240fps
- Time-lapse video with stabilization
- Cinematic video stabilization (1080p and 720p)
- Continuous autofocus video
- Body and face detection
- Noise reduction
- Take 8-megapixel still photos while recording 4K video
- Playback zoom
- Video Geotagging

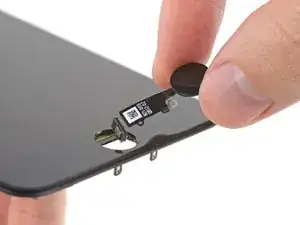

Touch ID: Fingerprint sensor built into the new Home button
Processor: 1.8 GHz Apple A10 chip with 64 bit architecture and embedded M10 motion coprocessor
RAM:
Storage: 32, 128, 256 GB Flash Memory
Sensors:
- Touch ID fingerprint sensor
- Barometer
- Three-axis gyro
- Accelerometer
- Proximity sensor
- Ambient light sensor
Wireless Connectivity:
- Integrated 802.11 a/b/g/n/ac Wi-Fi with MIMO
- Bluetooth 4.2
- NFC
- GSM, CDMA, 3G, EVDO, HSPA+, LTE
- Digital Compass
- Assisted GPS and GLONASS
Dimensions: 6.23 × 3.07 × 0.29 in (158.2 × 77.9 × 7.3 mm)
Weight: 188 g (6.63 oz)
Colors: Rose Gold, Gold, Silver, Black, and Jet Black
