Game Boy Speaker Replacement

Written By: Andrew Tramposch
  • Comments: 2
Game Boy Speaker Replacement

Difficulty

Difficult

Steps

10

Time Required

No estimate

Introduction

This guide explains how to replace the speaker in a first-generation Nintendo Game Boy system.

  1. MmfOfLnbQfKIIhwX
    MmfOfLnbQfKIIhwX
    bvLUVIiIQnJ4swOX

    • Switch your Game Boy off and remove the cartridge.

  2. 1VxOvvpWURg4OJTZ
    1VxOvvpWURg4OJTZ
    VORhCOESyk6DFbfy
    EZhmK2YLeZp53Fhl

    • Use a fingernail (or small coin) to push down on the battery door latch and remove the battery door.

    • The release latch is a plastic spring clip. If your Game Boy is getting on in years, be careful as the plastic may be brittle.

    • When you're replacing the cover, be sure to get its two plastic tabs into the slots in the bottom of the battery compartment before pushing the cover back in place.

  3. PjmfSbMud1X6JVRA
    PjmfSbMud1X6JVRA
    3XIgWpM1vRDWl2G4

    • Use a fingernail to pry each battery outward from the positive (+) terminal to remove them.

    • Dispose of used batteries properly!

    • Remove the batteries from your Game Boy before storing it for more than a month or so.

  4. hAxpUIKQ1bkZKCBu

    • Remove the six Triwing screws from the back of the device.

  5. VATiKKXmO6xPnIBQ

    • Gently separate the device's front casing from the back casing after you remove the screws.

    • Be careful not to completely separate the casing halves, as they are still joined by a large ribbon cable that may be damaged.

  6. K4hgYWEJAYoY5aBM

    • Slide the front side of the casing down to expose the ribbon cable connector.

  7. HMqDKftyxTOnfOrt

    • Grip the ribbon connector with your thumb and forefinger. Pull down gently until the connector, not the ribbon itself, comes out of its socket.

    • Separate the front and back casings.

  8. 5pvgRYhxTW21KGUt

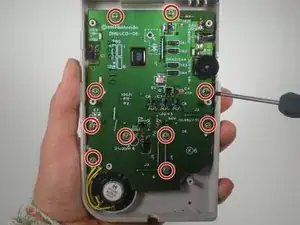

    • Remove the 10 Phillips #00 screws from the motherboard.

  9. rZmBhiBdDg6KKnsr
    rZmBhiBdDg6KKnsr
    ZRM43fQQVFG4ZRto

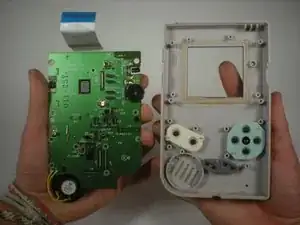

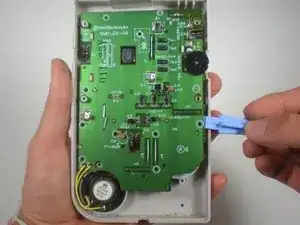

    • Use a plastic opening tool to gently lift the motherboard up and remove it from the front plastic case.

    • Use caution when lifting the board since the speaker is attached.

  10. aasoVGoCsaI3LwVx
    aasoVGoCsaI3LwVx
    oUcwTcNfOcvTwLUa
    WYBtMg3uZVZhOT6Y

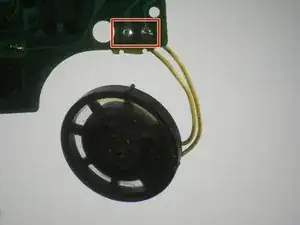

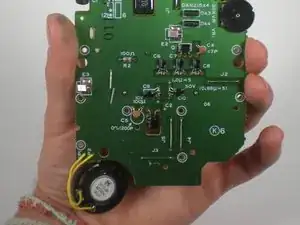

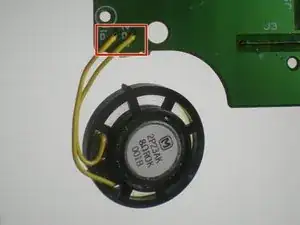

    • Desolder the two wires connecting the speaker to the motherboard.

    • Remove the speaker.

    • If you're new to soldering, refer to this guide for tips that will help with desoldering the speaker wires and/or soldering the new ones in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
