How to Remove a Stripped Screw

Written By: Jake Devincenzi
  • Comments: 83
How to Remove a Stripped Screw

Difficulty

Moderate

Steps

7

Time Required

5 - 45 minutes

Introduction

Stripped screws are a nightmare for any repair enthusiast. Try as you might, some screws just do not want to come out. Frustration takes over and before you know it, that once "+" shape has turned into a "O". Never fear; we've got your back. This guide will walk you through how to use a rotary tool to remove a stripped screw by cutting a small slit in the screw head, allowing you to remove the screw with a flathead screwdriver.

Techniques:

  1. Different Screwdriver
  2. Rubber Band
  3. Screw Extracting Pliers
  4. Superglue
  5. Rotary Tool

Always wear safety goggles when using a rotary tool to prevent injury from debris or sparks.

  1. V6MTNFApWDrKHgNg

    • Your screw is stripped, and your screwdriver is no longer sufficient. Before busting out the heavy hitters, try the following:

    • Use different screwdrivers. First try slightly smaller or larger head sizes, then a flat head screwdriver, to see if you can get it to catch on some part of the stripped screw.

    • If the bit doesn't catch the screw instantly, do not continue. Otherwise, you run the risk of further stripping the screw.

    • If either of these techniques are fruitful, congrats! Your screw is free.

  2. oFtcMtdYHt1vjLou
    oFtcMtdYHt1vjLou
    FaeEb6oX1RQRbpjR
    PjgUmyMDCfyMWYBy

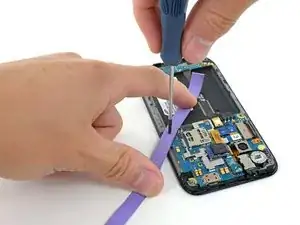

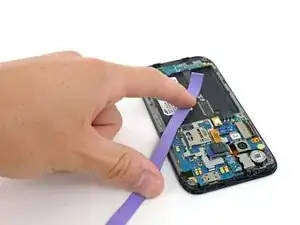

    • A rubber band can give you the extra grip you need.

    • Stretch a rubber band over the stripped screw.

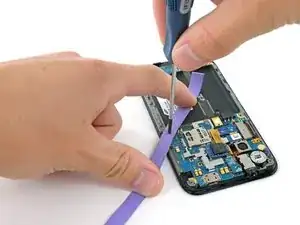

    • Insert a properly-sized screwdriver, and give it a turn.

    This didn’t work since I used a small rubber band. I’m trying to remove the right screw from the optical drive. It’s already stripped and I’m planning on using the super glue which I’m deeply unsure of doing. I was thinking about using the #00 Philip screwdriver to add the super glue on. And I’m not sure if that worked for anyone especially if it didn’t snapped off. Any answers?

    Kareem Caldwell -

    This part should be removed from the guide - it doesn’t work at all.

    Mac -

    Instead of a rubber band I used a thin piece of fabric/soft cloth and this worked well. I’ve tried the rubber band in the past with no luck but fabric worked for me on a stripped #00 phillips

    cam2000deluxe -

    thanks for the tip, i was really struggling here

    just some mango -

  3. MwGbj4fiN6k62vcQ
    MwGbj4fiN6k62vcQ
    wsvJRMkHTiXA6Gs2

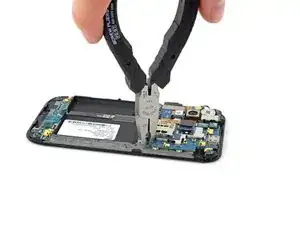

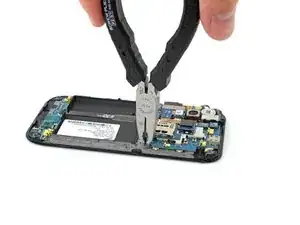

    • If the screw head is accessible, try a pair of screw extracting pliers. If you can get a good grip, turn the pliers and the screw should turn along with it!

    • Once the screw is loosened a bit, you can probably back it out the rest of the way using a screwdriver.

    You can make your own screw extracting pliers using a file and old pair of regular pliers.

    Alexander Walker -

  4. TLRvyaXx1o2XtAA5
    TLRvyaXx1o2XtAA5
    p1aFCPYmJKvNUMWF
    BuAB56HRAXZPPsIa

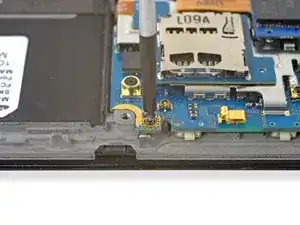

    • Still stuck? Try adding a dab of superglue to the top of the screw.

    • Set your driver into the screw head, and allow the glue to dry.

    • Using a firm grip and downward pressure, give the driver a twist to remove the screw.

    • Don't forget to clean the remains of the glue from the tip of your driver.

    You might want to mention to spend the extra buck and get the gel superglue. It's way easier to control...

    lkmemphis -

    Also might suggest applying the tiny ammount of super glue to the tool tip not the screw. If you accidently squeeze out too much the overflow can be cleaned off the tool and the glue reapplied much easier than it can be removed from the screw and the surrounding areas of the device. Alternately the surrounding areas can be masked from excess glue with a bit of transparent tape.

    James Todd -

    How would you remove the screw from the driver?

    William Sanborn -

    How do I clean of screw driver from the super glue?

    And how do I prevent or avoid that situation the next time?

    Gerald -

    Please use the suggestions in the previous comments to improve this guide: add gel super glue to tip of driver and give instructions on how to remove screw from driver and clean the tip of driver.

    Pauline Guillermo -

    Can we reuse the screw afterwards? I have my macbook pro 2.9 mm T3 Torx and 1.7 mm T3 Torx screws stuck but couldn’t find those screws to buy…

    Camille Le Men -

    If the screw is stripped, why would you reuse it? You’ll have the same problem when trying to repair the Mac in the future if you need to repair it again. Don’t they have those screws available as a kit (with other screws) on iFixit?

    Mac -

    Screw it!!!!

    Gabe W -

    Long story short, laptop has been overheating and I thought it was a software issue, for months. I've tried everything. I come home after a stressful week, laptop crashed during a fresh windows reinstall. then I realized it has to be a bad part.

    So I open it up and burn my finger on the heatsink. "Eureka!"

    Take out heatsink and replace with same part that I already have. 4 screws, "finally a win!" I fixed Apache Helicopters for years, 4 screws, EASY! no prob. the last one strips, I want to burn the continent in my rage. I find this article and see "Try Super glue" chuckle to myself when I noticed my favorite kind of super glue right in front of me. "It must be fate! I'll likely to ruin the laptop, then I can justifiably smash it and get a new one."

    Tiny dab of glue on the screw, place in the tiny screw bit and wait till it dries.

    After 3 hours of trying not to notice the screw bit standing proudly, I gently yet firmly grasp it and give it a slow turn.

    It worked. I cried and called the wife at work

    atreestump -

  5. Tef1h3PCbFZfHnvJ

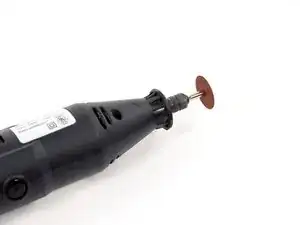

    • If you were unable to remove the screw with screwdrivers, pliers, a rubber band, or super glue, then a rotary tool should do the trick.

    • Attach a thin cutting disk to your rotary tool. Before you cut anything, make sure the disk is secured well.

    • Make sure you wear protective goggles anytime you use a rotary tool to prevent injuries from flying debris and sparks.

    Mask the area so the small metal particles don't create a short. Even still use a few blasts of can'ed air to blow any junk away.

    Dan -

    Likely the screw shavings are magnetic, so passing a powerful magnet may help collecting the screw “dust”. Especially important if the circuit board is not con formally coated as this “dust” is definitely conductive.

    Larry Jay -

    Was going to post the same comment- absolutely agree that you should protect the device from conducting dust- could easily get lodged between IC pins, especially as magentised through grinding and would stick together in a sort of string.

    I. Margaronis -

    If you're worried about conductive dust, then put the phone on its side and blast it with alcohol and a makeup brush.

    Alexander Walker -

    You should take the board out of the enclosure before you use a rotary tool on the device.

    Mac -

    You should take the board out of the enclosure before you use a rotary tool on the device.

    Mac - 12/16/2020

    Great idea, Mac. Unfortunately, I can’t get this %#*@ stripped screw out that’s securing the board to the enclosure.

    Cunning Stunt -

    Do you have a recommendation for the tool and size of the disk?

    Blaise L. -

  6. JbdZJyNZgtsAFyq4
    JbdZJyNZgtsAFyq4
    mOpMJcaWsVS6qQk2

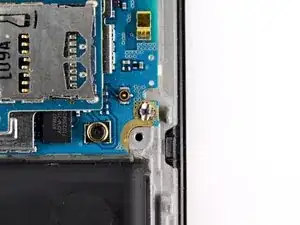

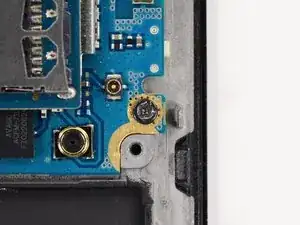

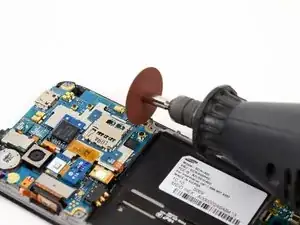

    • In this step, you will use the rotary tool to make a thin cut in the stripped screw that enables you to use a flathead screwdriver to remove the screw.

    • We recommend using a low power setting (we used 2 out of 6) to prevent damaging the rest of the device or the screw.

    • You want the cut to be deep enough that you can fit a flathead screwdriver into it, but thin enough that the screwdriver has something to grip.

    • Make a single thin cut into the head of the stripped screw.

  7. VbU2XLEhZQ5qcRDW

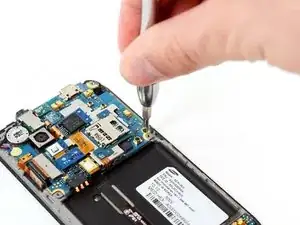

    • Use a flathead screwdriver to remove the screw from the device.

    • The size of the driver will depend on the size of the screw, but use the largest size that will fit in your cut.

    • If you cannot fit a screwdriver into the cut, use the rotary tool to make the cut larger. Make only small cuts; if you cut off too much of the screw, a screwdriver will not catch and you will not be able to twist the screw.

    • Wear eye protection and give your device a few good blasts of compressed air before reassembling it. The rotary tool can scatter loose metal shavings around the device, creating the potential for an electrical short if not blown clear.

    What to do if the screw is much deeper inside?

    Dezlite -

Conclusion

Check out the video in the intro for some additional tips on dealing with stripped screws. Always use a high-quality screwdriver. Low-quality screwdriver material will cause damage to screws.
