Introduction

Follow this guide to replace the camera bezel and back cover adhesive pads in your Motorola phone. This process is a general procedure that applies to any Motorola phone with a plastic back cover and separate camera bezel.

If your back cover comes off in one piece, follow this guide.

  1. lY1LvQJPJFZLMRWZ

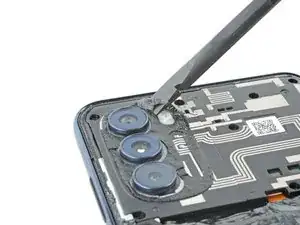

    • Use the flat end of a spudger or your fingers to scrape and remove the old adhesive from the phone body.

    • Pay attention to areas around the cameras and outer edge of the phone. Any remaining chunks will prevent your part from aligning properly.

  2. SkmA5A33YIfEEDvY

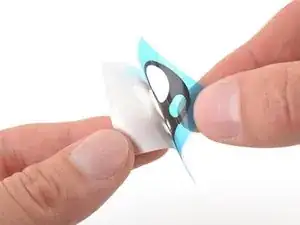

    • Peel and remove the white adhesive backing from the camera bezel's new adhesive pad.

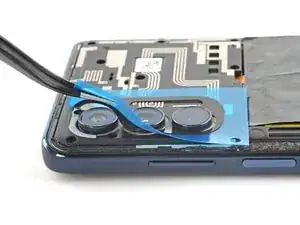

  3. OFaKAMhuqW4HVJOL

    • In this step, you'll use the camera module bumps to help align the adhesive to the camera bezel.

    • Lay the adhesive pad over the cameras, with the sticky side facing upward.

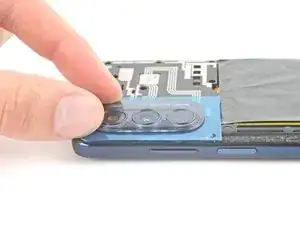

  4. vhpfA1cG2wEQCMpR
    vhpfA1cG2wEQCMpR
    1CTsJBVDNEXkEBWe
    fTj2QW4HQgoQ2JJm

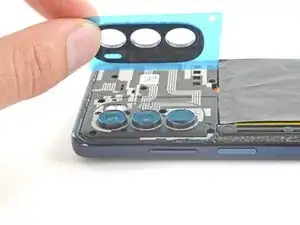

    • Lay the camera bezel over the cameras and press it onto the adhesive pad.

    • Lift the camera bezel and adhesive pad from the phone.

  5. htAVqkClcfOdtnDH

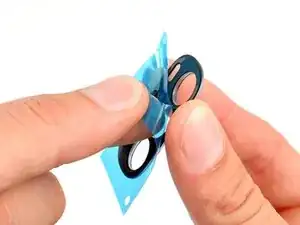

    • Peel and remove the blue protective film from the camera bezel.

  6. TCwxGZiM1CBGPg46

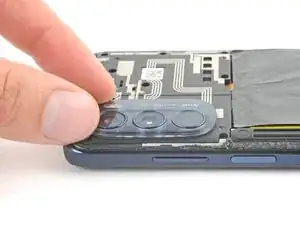

    • Place the bezel over the cameras.

    • Press firmly to adhere the bezel to the phone body.

  7. GkjqZvkY6Xg1xttv

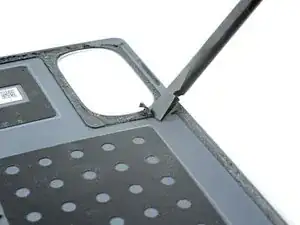

    • Use the flat end of a spudger or your fingers to remove the old adhesive from the back cover.

    • Any remaining adhesive will prevent the cover from seating properly.

    • If you're having trouble removing the adhesive, apply a heated iOpener to soften the adhesive.

    • Applying isopropyl alcohol turns the adhesive into a messy residue and is not recommended for this step.

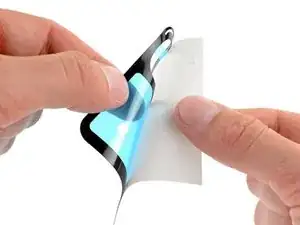

  8. movQspFcT1RMAuBL

    • Peel and remove the white adhesive backing from the back cover's new adhesive pad.

  9. viNAeCaOIAFiqC2Y
    viNAeCaOIAFiqC2Y
    tlRyrLv4Xx6mFpAU

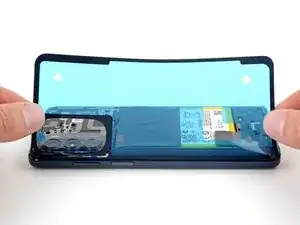

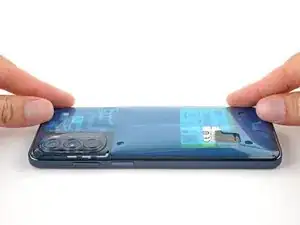

    • Line up the new adhesive on the phone and lay it onto the frame.

    • Be very careful aligning the adhesive. It's very sticky, and only properly adheres the first time.

    • Press down firmly on the adhesive along the perimeter of the midframe to secure it.

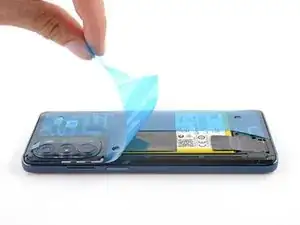

  10. BJZgPhpDrMOmexFH

    • Grab and peel the blue protective film, beginning with the cutout.

    • Remove the protective film.

    • Be sure that the adhesive pad doesn't stick to the film as you pull.

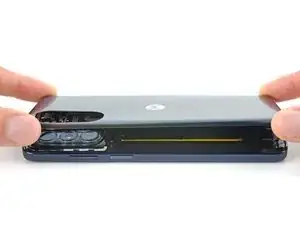

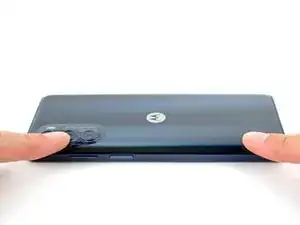

  11. rBhimk5IPPFLAqXt
    rBhimk5IPPFLAqXt
    NjBHJcnHYXQW3bxi

    • Align the back cover over the phone.

    • Press down firmly along the perimeter of the cover and around the camera bezel to secure it with the new adhesive.
