Introduction

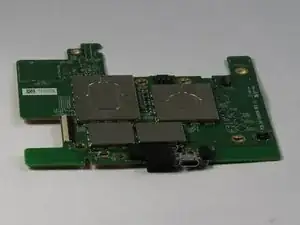

The Paperwhite’s charging port is integrated into the motherboard, and can only be replaced by either de-soldering the old port and carefully soldering on a new one, or by replacing the entire board.
-
-

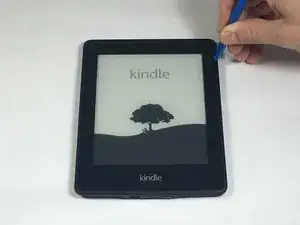

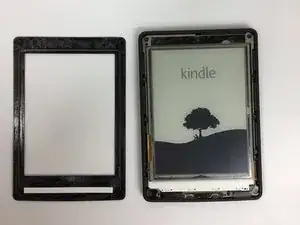

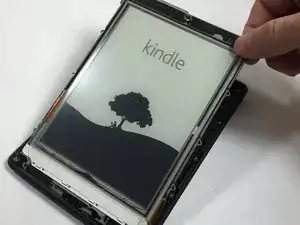

Insert plastic opening tool into the corners of the Paperwhite and slide around the edge perimeter to remove bezel.
-
-
-

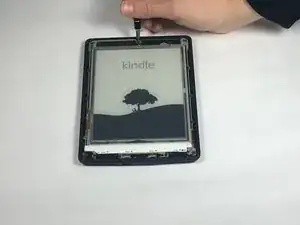

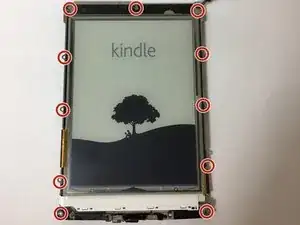

Using a Screw Driver, Remove the eleven 3.2 mm Phillips 000 screws from corners of the mid-frame and from behind the black strip as shown.
-
-
-

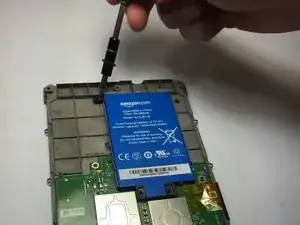

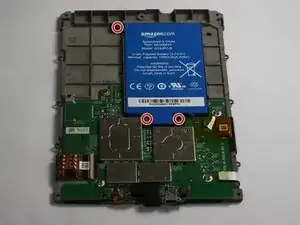

Use a screwdriver to remove the three 3.0 mm Phillips 000 screws that are holding the battery in place as shown.
-
-
-

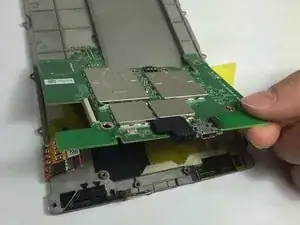

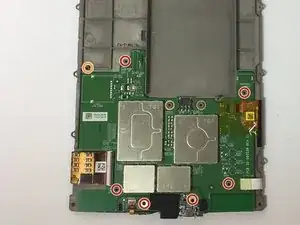

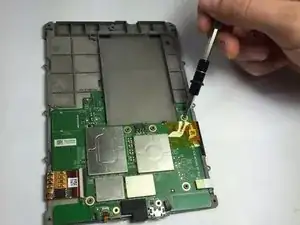

Use a screwdriver to remove the seven 3.0 mm Phillips 000 screws that are holding the motherboard in place as shown.
-
-
-

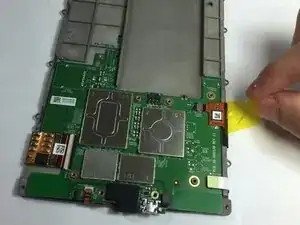

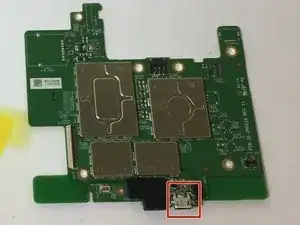

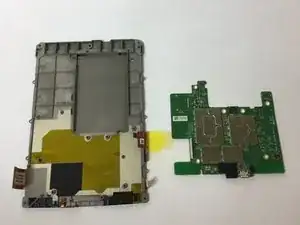

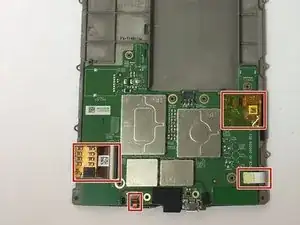

From here, to fix a faulty port, either replace the entire motherboard, or carefully desolder the old port and solder a new one on in its place.
-
To reassemble your device, follow these instructions in reverse order.
