Steam Deck Back Cover Removal for Battery

Written By: Carsten Frauenheim

Comments: 0

Steam Deck Back Cover Removal for Battery

Difficulty

Easy

Steps

Time Required

15 - 30 minutes

Introduction

Prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.

Use this guide to remove the back cover from a Steam Deck. Instructions and procedures within this guide are unique to and only used on the battery replacement guide.

Tools

Parts

Steam Deck Back Plate

Step 1

Turn on your Steam Deck and allow the battery to discharge completely before starting your repairs, as a charged lithium-ion polymer battery can be dangerous if accidentally punctured.
As an extra precaution, Valve recommends putting your Steam Deck into battery storage mode within the BIOS before starting any internal repairs. Read how to do that here.

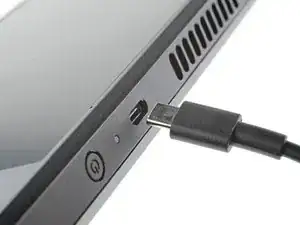

Unplug any cables still connected to your Steam Deck.

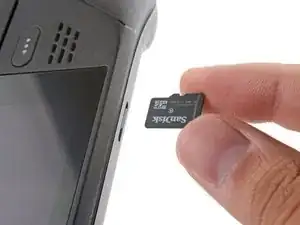

If you have a microSD card installed, make sure to remove it before opening the Steam Deck. If you attempt to remove the back cover with it still installed, it could break in half.

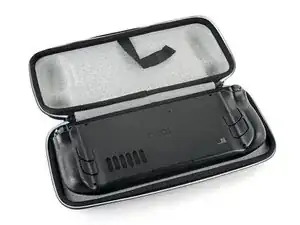

During your repair, it can be helpful to lay the Steam Deck face-down into its case at times to protect the thumbsticks and prevent wobble.

Step 2

Use a Phillips driver to remove the eight screws securing the back cover:
Four 9.5 mm screws
Four 5.8 mm screws
Throughout this repair, keep track of each screw and make sure it goes back exactly where it came from to avoid damaging your Steam Deck.

Step 3

Insert an opening pick into the thin gap between the back cover and the front shell, along the edge of the right grip.
Pry up on the back cover to release it from the locking clips.

Step 4

Once the clips are disconnected from one edge, the rest disconnect easily.
Grip the back cover at the opening you just created and pull it up and away from the device to unclip the long edges.
Remove the back cover.
