Tapwave T2907US Zodiac 2 Auxiliary Port Replacement

Written By: Irvin Camacho
  • Comments: 0
Tapwave T2907US Zodiac 2 Auxiliary Port Replacement

Difficulty

Difficult

Steps

12

Time Required

45 minutes - 2 hours

Introduction

Use this guide when the auxiliary port needs to be replaced.

  1. uaSQndbTlPVheii1

    • Remove the four Torx T5 screws from the back panel.

  2. 5PkmVtlxsWZoJYe4

    • Wedge a spudger in between the front and back panel.

    • Apply leverage downwards to the spudger in order to remove the back panel.

  3. pY5Lcu3kNoGEXaBg

    • Slide the battery out from under the brown wire-tape.

    • Be careful of the wires still connected to the other end of the battery. Do not pull or damage may occur.

  4. JdxqifBIyBGAW651

    • Slowly pull the white plug from its receptor. Grasp its sides firmly with a pair of tweezers and gently wiggle from side to side.

  5. 2ZCsxyalDDEJPHCt

    • Unscrew the 2 Philips #00 screws on each end of the motherboard.

  6. hwQKuIUDPetCAY6L

    • Pull off the black memory card slot piece with tweezers.

  7. hV3HuBlMFkeLBYGY

    • Unscrew the 2 Philips #00 screws on each side of the charging port.

  8. t4AGZsUwNKZwgpxf
    t4AGZsUwNKZwgpxf
    FPQiQLFOeaIlIurY

    • Disconnect 2 brown wire-tape ends from each end of the motherboard. Gently pull straight out with tweezers.

  9. 4c3TkgCI3LfTSXfE

    • Pull the motherboard and screen component diagonally up and left away from the auxiliary port entrance to remove.

    • Glue connecting the auxiliary port to the casing may make it difficult to remove. Gently apply force as needed.

  10. CZANDJfWPrNpCjsE

    • Disconnect the 2 brown wire-tape ends from the left side of the battery slot on the motherboard using tweezers.

  11. E31jUbcIGbItpaCB
    E31jUbcIGbItpaCB
    iIIrnexFApWenOrX
    6s6TN2wHKSwxKDdI

    • Disconnect the large brown wire-tape from the motherboard.

    • Peel the black tape back from the wire-tape using tweezers.

    • Lift the black, hinged, plastic lock with tweezers to release the wire-tape.

    • The screen and motherboard components can now be separated from each other.

  12. eCMFZ41Dx4YEp2nM

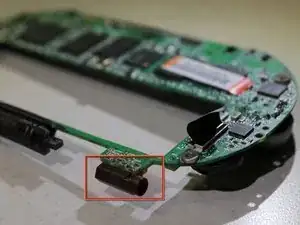

    • Remove the solder between the auxiliary port and the motherboard carefully with the desoldering pump.

    • Try to avoid contact between the solder sucker and other components surrounding the auxiliary port.

    • Do not get too close to the soldering tip to avoid burn when soldering the new auxiliary port.

    • If you need further aid in desoldering/soldering the auxiliary port follow this guide on soldering components of devices.

Conclusion

To reassemble your device, follow these instructions in reverse order.
