Asus Zenfone 3 Max Screen Replacement

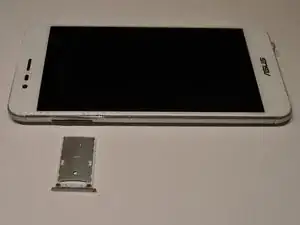

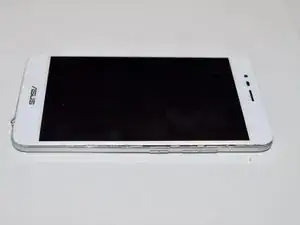

Locate the SIM card slot on the upper left side of your Asus Zenfone Max 3.

Use the iFixit 150mm Flex Extension with the Hex 0.7 bit or the SIM card eject tool.

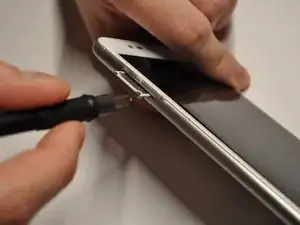

Stick the tool into the hole on the SIM card slot and open the slot with it.

Pull out the old SIM card all the way so it is no longer in the phone.

Using an iFixit opening tool, gently wedge the tool between the phone and the back casing.

Move the opening tool up and down to pry the back off of the device.

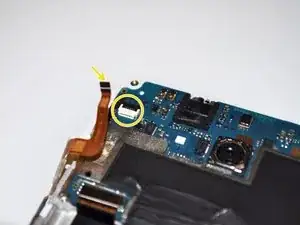

Gently disconnect the gold connection cable indicated by the red circle in the corresponding picture.

Pull back on the black adhesive tab that is adhered to the top of the battery. Tab removal is marked in the corresponding picture with a orange circle.

Next, remove the battery by gently pulling on the blue removal tab located at the bottom of the device battery.

Completely remove existing device battery.

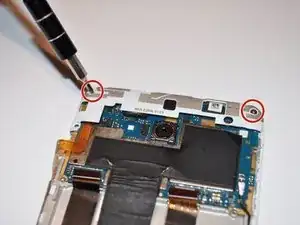

Remove the two 2.5mm Phillips #0 screws located in the upper corners of the device indicated with red circles.

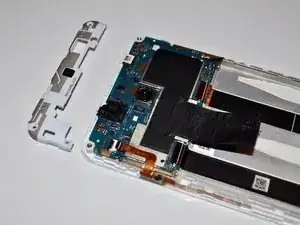

After both screws have been removed, detach the white plastic internal panel completely from the device.

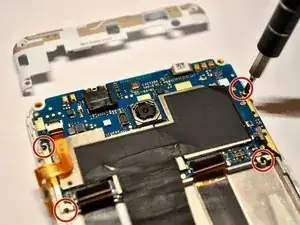

Next, remove the four 2.5mm Phillips #0 screws surrounding the motherboard component.

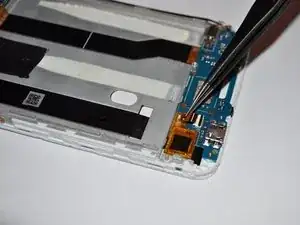

Following the removal of all four screws, carefully detach the two device cables at the bottom of the motherboard component using the nylon spudger.

Next, disconnect the remaining component cable using the same technique described in the previous step.

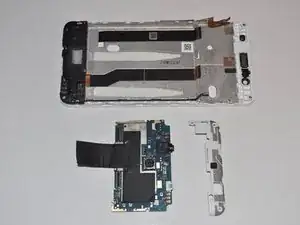

Carefully grip the motherboard and gently lift and remove it from the internal device casing.

Remove the SIM card tray fully. Refer to SIM card replacement guide for steps.

Refer to the back cover replacement guide to remove the back cover fully.

Refer to the battery replacement guide to remove the battery.

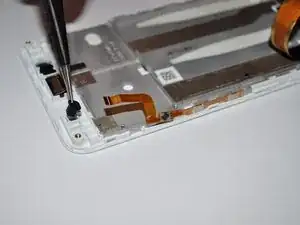

Remove the four 2.5mm Phillips #0 screws at the bottom near the speaker and take the small black plastic cover off.

Starting at the bottom, disconnect the antenna (long black wire).

Disconnect the tan component.

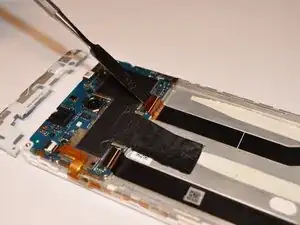

Starting from the top of the phone, disconnect the black screen flex cable (the one that is rectangular). Peel it all the way back.

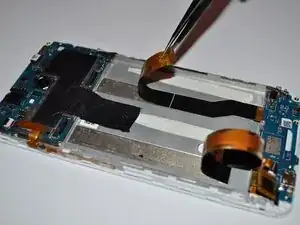

Again starting from the top of the phone, disconnect the charging port flex cable (the other black cable) and microphone button. Peel it all the way back.

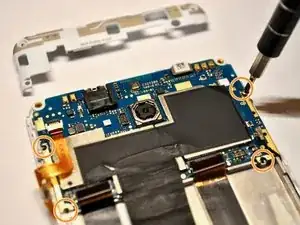

Remove the four 2.5mm Phillips #0 screws that hold the motherboard and remove the motherboard. Follow our motherboard replacement guide.

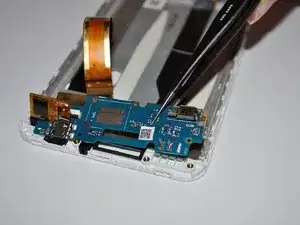

Remove the (blue) daughterboard. The charging port flex cable will come with it.

Be careful when removing the daughterboard. It is thin and adhered very solidly to the screen.

Move the rubber piece (denoted with orange circles) from the old port to your new LCD assembly.
