Cuisinart DFP-14BCN Capacitor Replacement

Geschrieben von: Vanessa See
  • Kommentare: 6
Cuisinart DFP-14BCN Capacitor Replacement

Schwierigkeitsgrad

Difficult

Schritte

12

Zeitaufwand

15 - 25 Minuten

Einleitung

Replacing your faulty capacitor will bring power back to your motor, allowing the blades to spin. The Cuisinart DFP-14BCN has two capacitors, so these steps may be followed to remove each one. To remove and replace your capacitor, you will need to use a soldering iron. Check out this soldering guide for instructions.

Capacitors are potentially dangerous. Be sure to discharge each capacitor before conducting this repair, and follow all safety guidelines found here: Watch out for Large Capacitors.

  1. OFO5SRinoVokGvoK
    OFO5SRinoVokGvoK
    jsxBPIw2MoOSiu4A
    kSWShXMUwwDUSSkA

    • Unplug your food processor before starting any disassembly.

    • Remove the small pusher by rotating it clockwise and lifting up.

  2. THlyFpesCnWRLVqS

    • Remove the large pusher by grabbing its sides and pulling up.

    • There may be a clicking sound from the safety feature being disengaged in this step.

    The little white thing that pushes down broke

    Mr. potato -

  3. QAlfxHf4WNryKUD6
    QAlfxHf4WNryKUD6
    gUVCoPwJhgnVIpBE
    laBrJrkuhbPEbFpL

    • Remove the lid from the bowl by turning it clockwise and lifting.

  4. npb3Nb6GaDKdwpyq

    • Take out the blades by grabbing the plastic center piece and lifting up.

    • Avoid contact with blades as they are extremely sharp.

  5. AdOX2PUUHSe5C3FQ
    AdOX2PUUHSe5C3FQ
    duKHZZcYPFJLQtMx
    Da3UfggLQGgGpnMY

    • Position the handle of the bowl so that it is on your left.

    • Grab the handle and push clockwise. Lift up the bowl to remove it.

    It seems so simple and obvious. Thanks for your help!!!

    Carrie Shirley -

  6. PSQoMWypXxqWV6AC
    PSQoMWypXxqWV6AC
    1QcruKNcLAwQsDJF

    • Turn the food processor's base upside down by lifting it up and turning it over.

    • Position the base so that the on and pulse buttons are facing you.

    • Place the base on top of the food processor's bowl to keep the base from wobbling while you work on it.

  7. BfhJEjwPcr1gTQvY
    BfhJEjwPcr1gTQvY
    K5E32dtH5bPTtvXv

    • Remove the two 13.0mm screws that hold down the casing with a Phillips #2 screwdriver.

  8. aPOjkR2jPMqMCZUU
    aPOjkR2jPMqMCZUU
    Cjtf5nnUEZ1OtWpP
    qQhspumpCuTk5Yg1

    • Lift up the front left and the back right rubber feet by pulling back the rubber with your fingers.

    • Remove the 13.0mm screw under each rubber foot with a Phillips #2 screwdriver.

  9. WhmudNRONIAJsVGf
    WhmudNRONIAJsVGf
    GkDwooTY1aXQ3uaA

    • Lift off the back casing by raising it upward.

  10. fBAbTJs2pWqpCca3
    fBAbTJs2pWqpCca3
    QoQjgIYD3SoS5eJ1

    • Caution: Be careful not to touch the capacitor wires as you work. If possible, use a capacitor discharge probe to safely rid the capacitors of dangerous charges.

    • Orient the base of the processor so that the power cord is facing you.

    • Locate the capacitor that you need to replace. The capacitor looks like a black cylindrical battery.

    • There are two capacitors in the device, but these steps refer to replacing the leftmost capacitor.

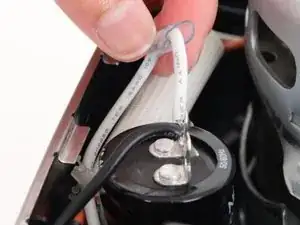

    • Slide the plastic covering off of the white wire connection on the top of the capacitor by pulling gently.

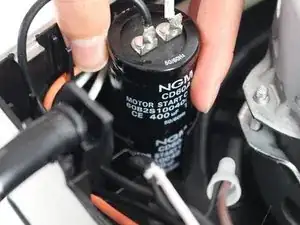

  11. OiSpwGegLiQhsQAn
    OiSpwGegLiQhsQAn
    JGPNZqQ5WY5f3Ume

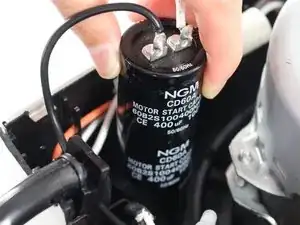

    • Lift the capacitor out of the plastic casing by pulling up.

  12. sXv4LfFcf4nLfJGG

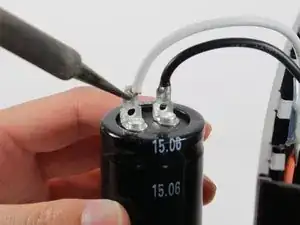

    • Remove the capacitor by desoldering the white and black wire from the capacitor with a soldering iron.

    • Check out this soldering guide if you need help.

    • For reassembly, the new capacitor's connections will have to be soldered together.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Vanessa See

Mitglied seit: 06/10/16

125 Reputation

4 Kommentare

Very helpful. Doing this on an earlier model, the DLC-7 SuperPro. Confirmed my suspicion that the case screws were under the feet and offered a strategy for diagnosing the loss of power about which I was unaware.

David Winsemius -

My model DL-8m had three visible screws and one hidden beneath the rubber foot. I had no idea how to open the base till I read your guide. Thanks!

Any ideas about a source for the replacement capacitor?

Christina Nordholm -

Just input the numbers off the capacitor ( 150uf 250 vac etc. ) into google and you should find a few different ones ( I went with eBay ) make sure to not only get one that matches ratings wise but also visually similar ( so it fits the original location )

abraham lemoine -

Capacitor is ok

runs when put on its side, but in normal vertical position motor hums but won’t start unless you twist the shaft

starts normally when on its side

Eliot Brown -
