Dell Inspiron 13 7378 Heat Sink Replacement

Geschrieben von: Javier Perez
  • Kommentare: 0
Dell Inspiron 13 7378 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Most common troubleshooting problems that Dell Inspiron 13 7378 may also face is a overheated CPU. With this guide you will be able to replace the cooling system and prevent damage to the internal components of the device.

  1. YSThvhlDvFlUIs23

    • Place the laptop with the bottom side facing upwards.

  2. bX2UP2QbRaHV56mX
    bX2UP2QbRaHV56mX
    pRYSrOXthag5FHVo

    • Remove the nine 3 mm screws from the back of the laptop using a Phillips #00 screwdriver.

  3. ec4l52CDiXNH4NAV
    ec4l52CDiXNH4NAV
    eDVIQqqonG1x6LLh
    SUHIumXpihFraCMq

    • Carefully pry open the back of the back of the laptop using opening picks.

    • Lift the back cover away from the laptop.

    • Be careful not to damage or crack the back cover of the device.

  4. JeItNg6RBkGAAHbi

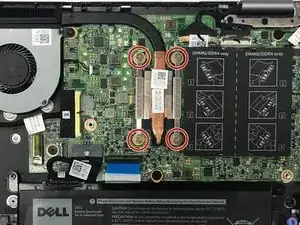

    • Unscrew the four screws from the heat sink using a Phillips screwdriver.

  5. 4HMRmJN4HxaZC1Yq
    4HMRmJN4HxaZC1Yq
    NQv2BhffvXyOKRjT

    • Check to see if the fan will obstruct the removal process and if so, remove the fan first before removing the heat sink to prevent any damage.

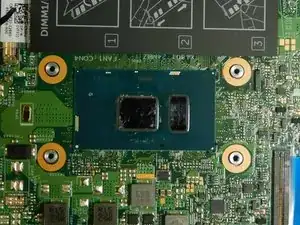

    • If there are no obstructions that hinder the removal process, then lift and remove the heat sink.

  6. kMdXuPnc21LbeTwt

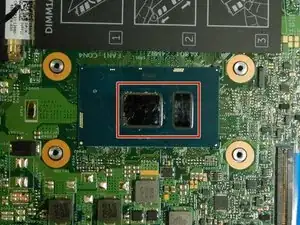

    • Before you install a new compatible cooling system, place a fresh coat of thermal paste in the center of where the previous cooling system used to be.

Abschluss

Replace the back cover to complete the process.
