Dell Inspiron 15 5584 CPU Thermal Paste Replacement

Geschrieben von: Sam Vorn
  • Kommentare: 0
Dell Inspiron 15 5584 CPU Thermal Paste Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the thermal paste on your Dell Inspiron 15 5584's CPU.

The processor, also known as the CPU, provides instructions and processing power for your device to function. It allows your computer to run applications and programs, as well as create the interface you interact with. Thermal paste, the silver-grey substance found above the CPU, allows for the cooling of the processor by dissipating heat. Without thermal paste, or with old thermal paste, the device will eventually overheat, and become nonfunctional.

Before using this guide, make sure to wear gloves and use the proper cleaning tools. It is important to note that, while thermal paste is skin safe, it is extremely toxic if consumed, rubbed into the eyes, or any open orifice. If consumed, contact your closest poison control center.

You can find detailed instructions here for reapplying thermal paste.

  1. oPOnIKUeypnxsimi

    • Make sure to turn off and unplug your laptop before starting.

    • Turn over the laptop so that the bottom is facing upwards, and the Inspiron logo is upside-down.

  2. g61NnV56Xi3Ilmeu
    g61NnV56Xi3Ilmeu
    kVDPCFqDOPefTDvL
    QCi5dDrAmYTXtnnH

    • Remove the seven 7 mm screws from the bottom using a Phillips #0 screwdriver.

    • Loosen the two captive back corner screws using a Phillips #0 screwdriver.

    • The two corner screws are not removable. A clicking sounds indicates that the screw is fully loosened.

  3. bupImkwfq6wXFZW5
    bupImkwfq6wXFZW5
    MZ4bG4Xqm65cDuKN

    • Slide an iFixit opening tool underneath the right side USB port and the keyboard.

    • Gently trace the iFixit opening tool along the entire outer rim of the laptop, carefully applying an upwards pressure.

    • Be careful not to force open the plate or push too much off without loosening the other sides. This can cause the bottom cover to crack.

  4. BDbtQKm1PpcFMjwT
    BDbtQKm1PpcFMjwT
    LdW2RPYV6dTtETSM

    • Gently pry off the bottom cover from the laptop.

    • Use the iFixit opening tool to loosen any spots you may have missed from Step 3.

  5. URmUC6rTbkIqvkHm
    URmUC6rTbkIqvkHm
    GrBnScvewWLojZEn

    • Remove the four 3.5 mm screws holding the battery down with a JIS #0 screwdriver.

  6. pp2BxyGd14HSJHrI
    pp2BxyGd14HSJHrI
    mJ5nSuiXR66MiSoW
    kiUKI1SQEeIbxKBV

    • Detach the motherboard connector tab from the top left of the battery.

    • Remove the battery from the device.

    • Be sure to carefully wiggle the connector out from the battery socket. Ripping it out too forcefully could damage the socket.

  7. CFCYVguePlgWaS1v
    CFCYVguePlgWaS1v
    y4p2lEGxTXR6mDqB
    ucIRXiUOyBymQpaS

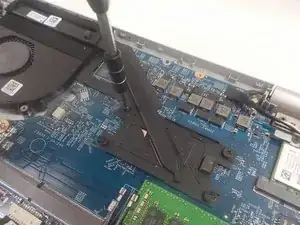

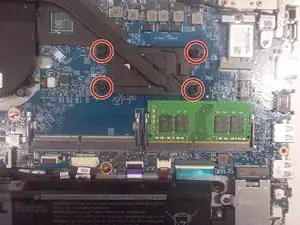

    • Loosen the four captive 3.5 mm screws securing the heat sink to the motherboard using a Phillips #0 screwdriver.

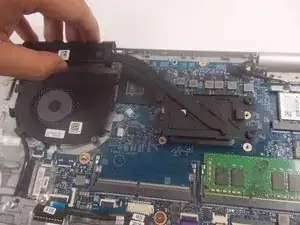

    • Remove the CPU plate cover from the motherboard and safely place it off to the side.

  8. FTICJaffpB2aqVqF

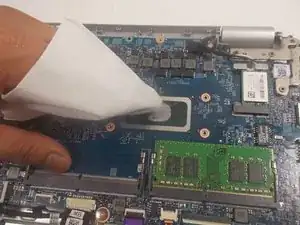

    • Place a small amount of rubbing alcohol on either a paper towel or cotton swab.

    • Use the paper towel or cotton swab to completely remove the thermal paste from the CPU.

    • Leave it to dry for around an hour before applying the new thermal paste. You can find thermal paste application instructions here.

Abschluss

To reassemble your device, follow these instructions in reverse order.
