Google Pixel 2 Lautsprecher tauschen

Suggest procedure revision:

Step 1: Read all steps and associated comments before proceeding.

Step 2: Ensure they supplied you with the right F$%^ING TOOLS in the kit before proceeding.

I'm F$%^ED because any store around me that might have this T4 Torx bit is already closed and my screen is already off. My kit came with a T2 Torx bit which is not used anywhere in this entire process.

I bought one of the kits and it had everything needed to change the battery except the alcohol, including spudgers, screwdriver, torx (2 sizes), tweezer, alcohol dispenser, glue strips and die-cut glue card that fit the phone case perfectly. I followed these instructions and read the comments. Applied alcohol and patience, took my time and got the job done without any damage to the phone. Thank you ifixit!

Make sure to remove the adhesive under the top and bottom speakers to make it much easier to remove the screen.

Isopropyl alcohol works well to loosen the adhesive. However - GO SLOW. Slide the pick a bit, then apply some isopropyl alcohol into the gap where you’re sliding toward. Wait a moment, then slide a bit more. Move very slowly, particularly around the corners!

Any idea on what to do when the suction cup pops off of the screen before there’s enough clearance to slide the pick in?

I used a hairdryer to weaken the adhesive. If you place your finger in the path of the hairdryer you’ll have a good idea of when too much heat has been applied (when your skin becomes unhappy at the temperature). BE VERY GENTLE. I cracked my screen because I didn’t weaken the adhesive enough. I also chipped(dog eared) the corner of the OLED screen underneath with one of the plastic tools. Don’t stick it in too far. As the guide says, use the flat edge or the pick to help control this.

I did the 90% alcohol and the iOpener. Took a while but finally got the screen off. As others have mentioned, there is lots of adhesive around the top and bottom speaker openings. I ended up reaching in with a small brush and more alcohol to get it. I used a tooth pick to break the final adhesive.

I also had a set of dental tools and a set of magnifying goggles (I’m a model railroader) which helped greatly.

Like others have said, THIS STEP IS THE MOST DANGEROUS!!! You must be extremely gentle (no real force should be necessary to separate the screen from the glue) with the screen and take your time. (IMO if it takes you less than 30 mins to get the screen loose, your going too hard at it). Two suggestions from my successful battery replacement that I can give, use alcohol instead of heat (seems to work better with this phone) and start with a much thinner plastic tool that is also flexible (I used a metro card from the NYC MTA). This will allow you to get at the tiny gap without using any significant force and then get some alcohol into the gap by dripping it down the thin plastic tool. Honestly, IFIXIT should make a small thin rectangular card to use for this with lines around it for measurements…

The first pry to get the pick inside the edge of the screen needs A LOT OF HEAT and a very firm pull, and just as someone else mentioned, the iOpener did not work well, instead, a regular hair dryer proved more beneficial in applying a controlled amount of heat until its almost too hot to touch. Then, once the pick is inside 99% isopropyl alcohol worked wonders, use a syringe or dropper to apple some at the edge, wait for about 15 seconds and move the pick centimetre by centimetre. Make sure to not insert it more than 2mm at the sides. I took more than an hour just to get the screen off.

As an experienced (1) screen remover, I’d recommend that if you don’t plan to change your screen, change your plans. You will be less disappointed that way. I managed to get mine for just over $10 with shipping and test it first (weak Battery). Pixel 3’s (Not 3a or XL) sure look a lot better now. They have removable backs. My pixel 1st gen was a cheap lesson. Looking for another cheap one to try alcohol on.

Used a hairdryer on medium heat (very warm but not burning hot), suction cup, and applied isopropyl alcohol into crack made when applying pressure. Rinse and repeat until loosened enough to get a pick in. Took many attempts. Don't try to force the pick in, as you could chip the edge of the thin glass of screen this way. The suction cup pressure and weakened adhesive should do the work. Once the pick gets it, you can work a little faster but did the same basic steps minus needing the suction cup anymore, working around the edges. Good lighting is a must to see the crack forming.

I have to disagree with folks who said this is the longest step of the whole process...for me...the longest step was having to drive around and find a T4 Torx bit because this kit came with a T2 Torx which proved absolutely USELESS...

The screen came off very easily with the liberal application of 90% Isopropyl Alcohol. Took around 15min to get the screen off and I hardly had to use picks except for the top and bottom.

That Torx bit though... F$%^ED ME

I took my time but a few times I slipped in more than I wanted. No harm. The bottom is the more tricky. The adhesive around the bottom opening goes right up against the ribbon cable for the screen. I got the edges unglued with alcohol & iOpener. I then gently pried the screen away and reached in with a small brush and more alcohol. I then used a toothpick to break the last pieces of adhesive.

Besides the adhesive at the edges, there are 2 rectangular shaped adhesive patches at the top (around the speaker) and bottom (around the microphone). These are pretty thick, but can be easily chipped away with the pick. You start to see these as you gently lift the screen upwards with the suction cup and peer inside (use a flashlight). I did not need to use a heat gun or blow dryer. Just the pick and some isopropyl alcohol.

Use isopropyl alcohol with a syringe at the top and bottom speaker to weaken the adhesive, gently pull apart (about 2mm) and use a finer piece of plastic (like a milky file plastic sheet) to cut through the adhesive at the speakers, but still do not take the screen off completely yet! After extensively reading about failed attempts to get the screen off (instances where people damaged the OLED underneath) one thing is in common: few devices have little adhesive underneath the ribbon cable as well, which people failed to notice and while separating the screen and in turn, damaged the OLED because of the pull from the ribbon cable. Thanks to having this information beforehand I found the same issue in my phone after I separated the screen (not completely) from the frame, I used a piece of finer sheet of plastic to cut the adhesive holding the ribbon cable. You will have to be extremely patient and take your time.

Word of warning - it is incredibly easy to slip and damage the ribbon cable at the back of the screen (where it folds over on the left in the image)! I accidentally did this removing the screen on my phone and it killed the touch functionality.

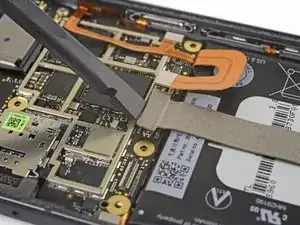

A spudger is the wrong tool to remove the video connector. You cannot see where you are poking with that tool and I wound up dislodging one of the surface mounted devices hidden by the connector and ruining the phone. I also broke a ground path near the corner of the middle frame that is not mentioned in this repair procedure. Watch this YouTube before you begin disassembly: https://www.youtube.com/watch?v=yKULr67Z...

None of the tools provided in the repair kit seemed slim enough to fit the space required to pry this up. I ended up using a thin / flimsy plastic health care card to get under and pry up. It popped up with enough pressure.

Many of the screws would not come out due to the original threadlocker on the threads. I found that if I just kept moving them around with a toothpick, I could get the out. I also had one of those telescoping magnetic bolt grabbers that pulled the screws out.

Would be nice if they included the correct torx bit in the tool kit... mine came with a T2 Torx...pretty useless...managed to get the display ribbon cable free as those screws were surprisingly not super tight - got them with the included Philips bit...pretty F$%^ED right here

@JensDavidsen, I'm sorry to hear that the kit came with the wrong bit. We do everything we can to make sure that our tool kits are kitted correctly. I've gone ahead and forwarded your information over to CS so they can get this fixed for you. In the future, if you have any questions or concerns, don't hesitate to reach out to us directly.

STOP! Before you lift the midframe, the ground strap mentioned by ericdowens and Alex Lawson definitely will break if you don’t remove it from the midframe before lifting. I didn’t quite know what they were talking about, so thought I’d look for it as I was lifting the midframe, as I was sure if I was careful I’d spot it before it would break. I was very gentle, and I still broke it before realising what they were talking about. Look for some silver mesh tape on the midframe, near the forward-facing camera, same kind of tape as over the screw shown in Step 14. I’m going to try and carefully tape mine back together as Alex Lawson did, but it will be very fiddly, wish I hadn’t broken it in the first place!

I broke mine... then proceeded to pilfer about 2mm worth of the tape depicted in step 18 because it's a silvery adhesive.
