Hott T725-8G Screen/Display Replacement

Geschrieben von: Emma Carroll
  • Kommentare: 0
Hott T725-8G Screen/Display Replacement

Schwierigkeitsgrad

Very difficult

Schritte

11

Zeitaufwand

45 Minuten

Einleitung

This guide will walk you through replacing the screen or display on your Hott T725-8G.

You will need to use the two replacement guides below:

Battery Replacement Guide

Motherboard Replacement Guide

  1. BVpWmo6QARVey4qp

    • Use the Metal Spudger tool and your fingers to peel off any existing screen protector.

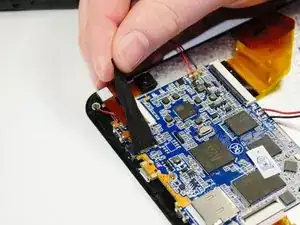

  2. 2RJhqbbZxT1shkXC

    • Remove black electrical tape to release the sensor and ribbon wires connecting the camera to the motherboard.

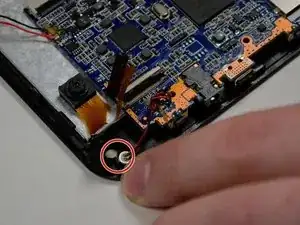

  3. yxYGaRI1eVEjI5E1

    • Dislodge the sensor from the front panel.

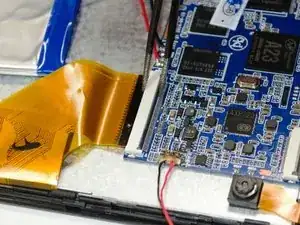

  4. vkXxAnwGFkTGwitJ
    vkXxAnwGFkTGwitJ

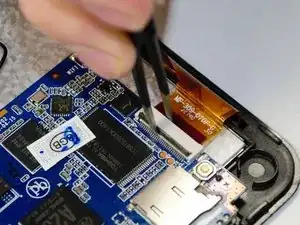

    aBZC5j1rhXVHI3Z6

    • Use a pair of Precision Tweezers to squeeze the clip of the ribbon wire to release it.

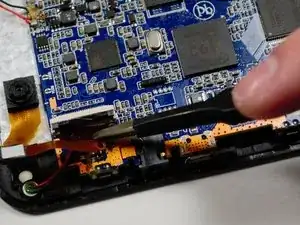

  5. mmXN2WyiY3YqOW36
    mmXN2WyiY3YqOW36
    gOyJUnbvXGFEcr4I
    JdMmchFMNbGcL3rO

    • Using a pair of the Precision Tweezers, remove the ribbon wire from the clip.

  6. ng2xErPSteopAAQ4

    • Follow the guide to remove the motherboard from the back of the display.

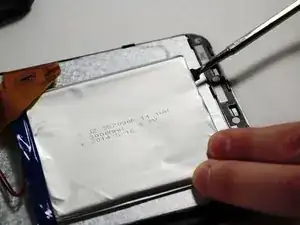

  7. OQVQEJAfLOSMYl1f

    • Follow the guide to remove the battery from the back of the display.

  8. BExxNuZc2DnJi45Q

    • With the motherboard and battery detached, use the Metal Spudger tool to gently remove the display from the front panel.

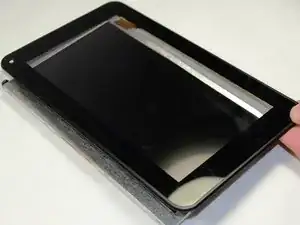

  9. avLSHVjp1tXChPgL

    • Remove Digitizer Panel from the front panel.

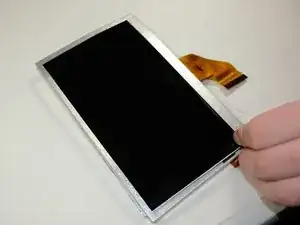

  10. 4LL2ABIIRvsX2FOY

    • Remove the LCD 5-Point Touch Screen from the display case.

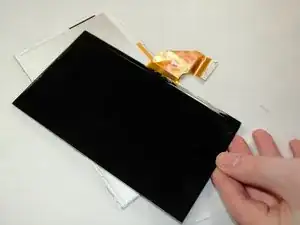

  11. LLHwsHTqIImwO3QC

    • Remove the display from the plastic casing. The screen is now ready for replacement.

Abschluss

To reassemble your device, follow these instructions in reverse order.
