Lenovo ThinkPad T470 WWAN Antennas Replacement

Place the laptop so that the bottom is facing upwards.

Slide the latch on the left side of the battery to the left until it clicks in place.

Slide the latch on the right side of the battery to the right and hold it in place with your thumb.

Use your other hand to slide the battery towards the back of the laptop.

Lift the battery up and away from the laptop.

Use a Phillips #1 screwdriver to loosen the six captive screws on the bottom cover of the laptop.

Place the laptop so that the top is facing upwards.

Open the lid of the laptop.

Place your fingers on the bottom edge of the keyboard.

Use a small amount of pressure to push the keyboard towards the screen.

Grab the bottom edge of the keyboard with your hands, and flip the keyboard upside-down, so it rests on the bottom of the laptop.

Use the flat end of a spudger to flip up the locking flaps securing each of the two ribbon cables.

Use your hands to lift the keyboard up and away from the laptop.

Close the laptop's lid and flip the laptop over so that the bottom is facing upwards.

Use your hands to pull up on the back cover and release the plastic clips starting on the bottom side of the battery compartment.

Use your hands to pull up on the right side of the bottom cover to release the plastic clips.

Use your hands to pull up on the left side of the bottom cover to release the plastic clips.

Remove the bottom cover from the laptop.

Use a Phillips #1 screwdriver to remove two 5 mm screws from the internal battery.

Use your hands to lift the battery up and away from the laptop.

Use your fingers to flip the black flap covering the top stick of RAM down.

Use your thumbs to push the metal clips on either end of the RAM outwards.

Use your fingers to lift the RAM out of its socket and away from the laptop to remove it.

Use your fingers to flip the black flap covering the bottom stick of RAM up.

Use your thumbs to push the metal clips on either end of the RAM outwards.

Use your fingers to lift the RAM out of its socket and away from the laptop to remove it.

Use the flat end of a spudger to flip up the metal clip securing the SSD connector to the motherboard.

Use the flat end of a spudger to separate the connector from its socket.

Grab the tab on the left side of the hard drive, and pull up to remove it from the laptop.

Use a finger to press the black flap covering the Wi-Fi card down.

Use the flat end of a spudger to disconnect the two coaxial wires from the Wi-Fi card.

Use a Phillips #1 screwdriver to remove the single 4 mm screw from the Wi-Fi card.

Use your fingers to lift the Wi-Fi card up and out of its slot.

This laptop does not include a WWAN card, but if yours does, follow the same procedure as Steps 9-12 to remove it.

Use a pair of blunt nose tweezers to pull the white connector out of its socket.

Grab the wire attached to the coin cell battery, and lift it up and out of the laptop.

Use a pair of blunt nose tweezers to pull the white fan connector out of its socket on the motherboard.

Use a Phillips #1 screwdriver to loosen the first pair of captive screws on the fan and heat sink assembly in a crosswise pattern.

Use a Phillips #1 screwdriver to loosen the second pair of captive screws on the fan and heat sink assembly in a crosswise pattern.

Use your hand to pull the fan and heat sink assembly up and away from the laptop.

Use the flat end of a spudger to flip up the metal clip securing the LCD cable to the motherboard.

Use the flat end of a spudger to disconnect the LCD cable from its socket on the motherboard.

Use the flat end of a spudger to flip the power button cable's black tab up.

Use the flat end of a spudger to slide the power button cable out of its connector on the motherboard.

Use your fingers to detach the red and blue antenna cables from their slots.

Use a Phillips #1 screwdriver to remove the two 4 mm screws from the USB bracket.

Use your fingers to lift the USB bracket up and away from the laptop.

Use a pair of blunt nose tweezers to disconnect the DC-in cable from its socket on the motherboard.

Use the flat end of a spudger to flip up the metal bracket securing the camera cable to the motherboard.

Use the flat end of a spudger to disconnect the camera cable from its socket on the motherboard.

Use a pair of blunt nose tweezers to disconnect the speaker cable from its socket on the motherboard.

Use the flat end of a spudger to flip up the black tabs on the trackpad and fingerprint reader cables.

Use a pair of blunt nose tweezers to slide the trackpad and fingerprint reader cables out of their connectors on the motherboard.

Use a Phillips #1 screwdriver to remove the three 4 mm screws from the I/O bracket.

Use your fingers to slide the I/O bracket to the left.

Lift the I/O bracket up and away from the laptop.

Use a Phillips #1 screwdriver to remove the six 4 mm screws from the motherboard.

This laptop does not have an NFC cable, but if yours does, use the flat end of a spudger to flip up the tab and slide the cable out of its connector.

Use both hands to lift the motherboard up and away from the laptop.

Use your fingers to remove the camera cable from its slot.

Use your fingers to lift the black and blue wires out of their slots along the top of the laptop.

Use your fingers to lift the red and gray wires out of their slots.

Use your fingers to lift the LCD cable out of its slot.

Use a Phillips #1 screwdriver to remove three 4.5 mm screws from the hinge in the upper right corner.

Use a Phillips #1 screwdriver to remove two 4.5 mm screws from the hinge in the upper left corner.

Use both hands to lift the laptop body up and away from the display assembly.

Use the iFixit opening tool to create a gap between the bezel and the display, starting in the upper left corner.

Continue to use the iFixit opening tool around the left side, bottom, and right side of the laptop to detach the clips securing the bezel to the display.

Insert the iFixit opening tool between the bezel and display on the top side.

Use both hands to lift the bezel up and away from the display assembly.

Use a Phillips #1 screwdriver to remove the four 3 mm screws from each corner of the screen.

Use both hands to lift the bottom corners of the display panel

Gently flip the display panel over.

Use a pair of blunt nose tweezers to remove the clear tape from the display cable.

Use the flat end of a spudger to flip up the metal bar securing the connector.

Use the flat end of a spudger to disconnect the display cable from its socket.

Use your hands to remove the display panel from the rest of the display assembly.

Use a Phillips #1 screwdriver to remove the two 3 mm screws from the hinge in the upper left corner.

Use your fingers to lift the hinge up and away from the laptop.

Use a pair of blunt nose tweezers to peel the copper tape off of the hinge frame.

Use your hand to lift the hinge frame up and away from the laptop.

Use a Phillips #1 screwdriver to remove the two 3 mm screws from the hinge in the upper right corner.

Use your fingers to lift the hinge up and away from the laptop.

Use a pair of blunt nose tweezers to peel the copper tape off of the hinge frame.

Use your hand to lift the hinge frame up and away from the laptop.

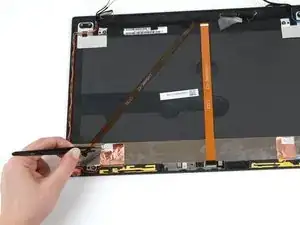

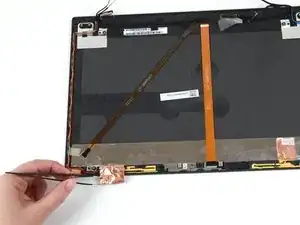

Use a pair of blunt nose tweezers to peel the copper tape up from the display assembly in the bottom left-hand corner.

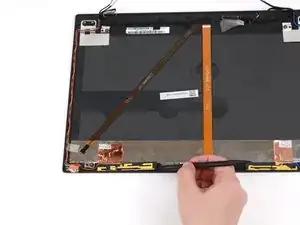

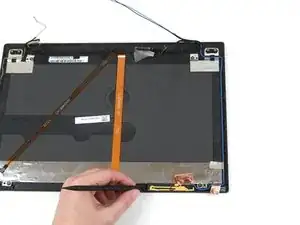

Use a spudger to pry the WWAN antenna away from the rest of the display assembly.

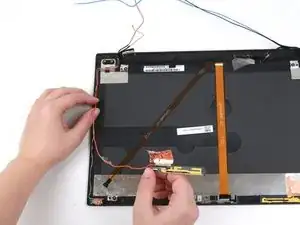

Use one hand to hold the WWAN antenna.

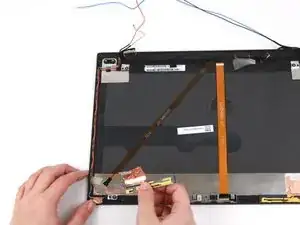

Use your other hand to remove the red wire from its slots along the left side of the display assembly.

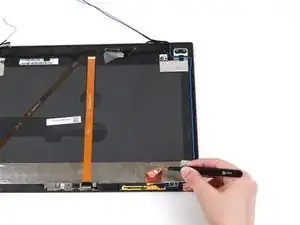

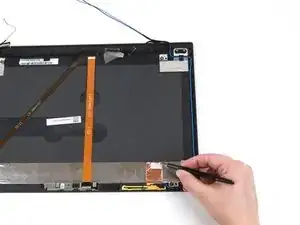

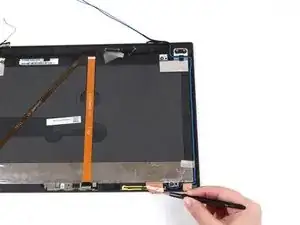

Use a pair of blunt nose tweezers to peel the copper tape up from the display assembly in the bottom right-hand corner.

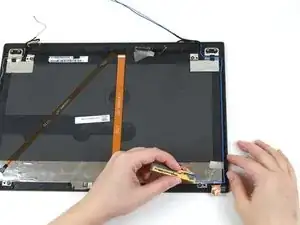

Use a spudger to pry the WWAN antenna away from the rest of the display assembly.

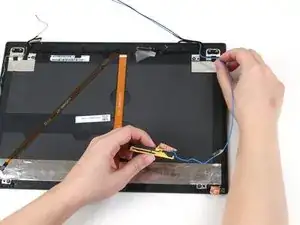

Use one hand to hold the WWAN antenna.

Use your other hand to remove the blue wire from its slots along the right side of the display assembly.
