Lenovo YOGA 730-15IKB Screen Replacement

Geschrieben von: Ellis Ruckman
  • Kommentare: 1
Lenovo YOGA 730-15IKB Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

27

Zeitaufwand

45 Minuten - 2 Stunden

Einleitung

Follow this guide to replace the screen on your Lenovo YOGA 730-15IKB.

Before you jump to replacing the screen, try detaching and reattaching the display connector. This seems to solve many display flickering issues. See the troubleshooting page for more information about this common issue.

If the computer is turning on but the display is black, you might need to replace the screen. You could also replace the screen if it is cracked or if it starts getting dead or stuck pixels (again, see the troubleshooting page for more information).

  1. mLiSnovpnEg3rnEC
    mLiSnovpnEg3rnEC
    noUpQEbDolFeWZiZ

    • Turn off the computer and unplug the charger before going any further.

    • Flip the laptop over so you can see the underside.

    • Remove the ten 7mm T5 Torx screws.

  2. QOUSTCaRCutWsdkU
    QOUSTCaRCutWsdkU
    KbauxZJARPAf1K4o

    • Pry up the bottom cover with an opening tool.

    • Start at the front edge of the cover and make your way along the sides.

  3. 6TrVlsFegRW1YA1o

    • Pull the bottom cover up and away from the back hinges.

  4. 1MfAxdKFYjQDcHcw
    1MfAxdKFYjQDcHcw
    cmqaCjgMWtkJBqyD
    rSgOCCDYAADYrQ25

    • Disconnect the battery from the motherboard by gently pulling the battery cable using your fingers or a pair of tweezers.

    • Pull parallel to the battery, not straight up.

    • Unplug the cable gently as the eight wires on the connector are very small and delicate.

  5. UEkYpqLh1MmiKGB5
    UEkYpqLh1MmiKGB5
    bXRSUBMD2sRGBiwf

    • Remove the four 4mm Phillips #1 screws securing the battery.

  6. nbXgZgKMro1QTwW4

    • Lift the battery up and out of the chassis.

    • Handle the battery carefully. Touching the terminal may cause electric shock. Puncturing the battery may cause it to catch fire.

    You do not have to remove the fans and other items to replace a screen!

    DJ HOGG -

  7. lODjiJE5qvEugvMC

    • When the laptop is upside down, the left fan is on the right side of the laptop near the wireless card and the SSD.

    • Remove the black and white antenna wires from the groove on the right side of the fan.

  8. bT6YUrAZegMoUR5Y
    bT6YUrAZegMoUR5Y
    LfYlnxgjM1a5VXq2

    • Disconnect the fan cable. Pull the wire toward the right side of the laptop while wiggling to loosen the connection.

    • You can also use the white tabs on the connector to push the cable free.

  9. LR5qGDogHVQLcByT
    LR5qGDogHVQLcByT
    x1dWnKEFp2LgySdP

    • Remove two 4mm Phillips #1 screws.

  10. 3XAPxJfGlcsGiWti

    • Pull the fan up and towards the front of the laptop.

  11. QCHYQvVVHVylrHDB

    • When the laptop is upside down, the right fan is on the left side of the laptop near the large metal RAM cover.

    • Disconnect the fan cable. Pull the wire toward the back of the laptop while wiggling to loosen the connection.

    • You can also use the white tabs on the connector to push the cable free.

  12. P6hiXfpbJuonBDi5
    P6hiXfpbJuonBDi5
    PbGqHOLkmQTJciM3

    • Remove two 4mm Phillips #1 screws.

  13. IhEYhGrPqS1RJGnP

    • Pull the fan up and towards the front of the laptop.

  14. yUXXJFwUPSnHip1y
    yUXXJFwUPSnHip1y
    5HGbq2WkQxEuHKRX
    QxavaQdOwRjomSHB

    • Remove the fingerprint reader ribbon cable located at the bottom left of the motherboard.

    • Pull up on the black tab on the connector.

    • The ribbon cable should easily pull out of the connector.

  15. GMvIca1p1cvvUNZA
    GMvIca1p1cvvUNZA
    yIMFtEUVodHFBmY4

    • Remove the three other ribbon cables at the lower edge of the motherboard.

    • For each, lift up the black tab on the connector.

    • The ribbon cables should easily pull out of the connectors.

  16. kvpcPxkKP1ylTCu4
    kvpcPxkKP1ylTCu4
    F5LU2nWEAtVDRJNG
    iQmDYbQETvOwP335

    • Disconnect the speaker cable by pulling the wire towards the front of the laptop.

    • You can also use the white tabs on the connector to push the cable free.

  17. XAtOuxmGp5qGQ6uQ

    • Remove the sticky tape from the top of the wireless card.

  18. H4UrEYDZAJ3CVIlF
    H4UrEYDZAJ3CVIlF
    aEJbUOggYRFSefcH
    1mRtXOEGIPUoYZw2

    • Pull the black and white antenna wires off of the wireless card.

    • For reassembly, the white wire connects to the right terminal marked "1." The black wire connects to the left terminal marked "2."

  19. 1SqixyOJsNlcNNcS
    1SqixyOJsNlcNNcS
    YL2BiNEEyvrVPiJk

    • Pull up on the thick gray display cable near the back of the laptop to disconnect the display.

  20. LDVmqOAbFcyqEFma
    LDVmqOAbFcyqEFma
    rHdXB6bmyDHqEHcl
    nR23nMOrv6LR5TGN

    • The charger port is connected to the computer by a cable at the top left of the motherboard.

    • Disconnect the cable by pulling the bundle of wires firmly toward the back of the laptop.

    • The cable requires some force to remove. Make sure you do not damage the connector or cable.

  21. CD64yORnUDRwCCgn
    CD64yORnUDRwCCgn
    buA4PV2muFgAcZlk

    • Remove four 4mm Phillips #1 screws.

  22. GwyDIKVDnx3fyIQJ

    • Pull the motherboard up out of the laptop chassis.

    • If you are replacing the motherboard, make sure to remove the SSD, wireless card, heat sink, and extra RAM. Transfer these components to the new motherboard.

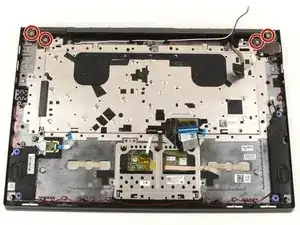

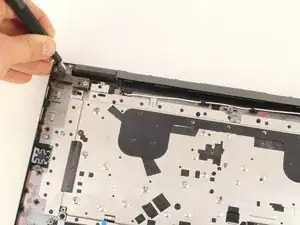

  23. xgHQCKJYLXJVUIJA
    xgHQCKJYLXJVUIJA
    tCwhSuejUOywSfom

    • Remove four 4mm (silver colored) Phillips #1 screws.

    • For reassembly, pay close attention to where you reattach these screws. The holes closest to the corner need to be left free. They will be used when you reattach the back cover.

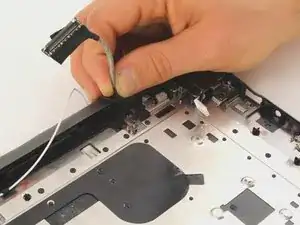

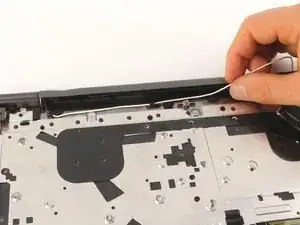

  24. cw2HZQTv15U4m43T
    cw2HZQTv15U4m43T
    TEj4Nr36VXx6UxTW
    DKhv4QH6WL3JLD3D

    • Pull the thick gray display cable out from under the hook that holds it in place.

    • Remove the white antenna wire from underneath the hooks near the back of the laptop.

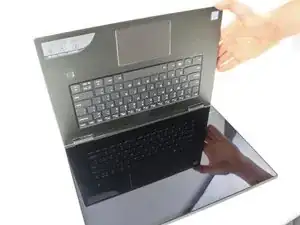

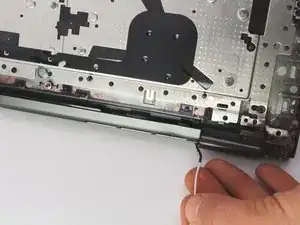

  25. VrAnUcJTPADIcQN4
    VrAnUcJTPADIcQN4
    xHbn4toZpHWb6xr5

    • Tilt the keyboard up to make a 90 degree angle with the screen. This makes it easier to move the display and antenna cables.

    • On the back of the keyboard, slide the white antenna cable past the edge of the hinge.

    • Pull the keyboard upward and towards the front of the screen to make room for the cable.

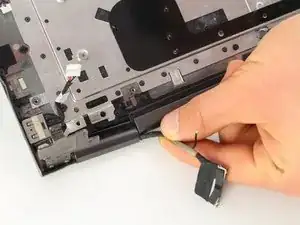

  26. LT1sKD6XdtkHuDgQ

    • Pull the thick display cable and the black antenna cable past the hinge.

    • Tilt the left side of the keyboard upward. This helps create some room around the hinge.

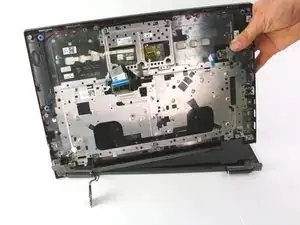

  27. 6SL4OLUVfapO1kIk

    • Pull the keyboard up away from the screen. After the display and antenna wires have been moved, the keyboard should easily come apart from the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
