Motorola Moto G Play (2021) Daughterboard Replacement

Geschrieben von: Clay Eickemeyer
  • Kommentare: 0
Motorola Moto G Play (2021) Daughterboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

22

Zeitaufwand

1 - 2 Stunden

Einleitung

Follow this guide to remove and replace the daughterboard on your 2021 Motorola Moto G Play. This process involves removing and stripping the daughterboard of its component parts. The microphone is included in the daughterboard.

  1. qgQ1lHBRnuCrMf4A

    • Discharge your battery to 25% or lower and power off your phone before you begin.

    • Heat an iOpener and apply it to the left edge of the cover for two minutes.

    • A hair dryer or heat gun may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. kBSAWhijB31MWsUt
    kBSAWhijB31MWsUt
    tfVQLJVGTNtuigH2
    133WPNrZdCOAOXYg

    • Apply a suction cup to the back cover, as close to the center of the left edge as possible.

    • Pull up on the suction cup with strong, steady force to create a gap between the cover and the frame.

    • Insert an opening pick into the gap.

  3. jTCbwSHbPbJjmxoi
    jTCbwSHbPbJjmxoi
    UKi1UMeCaXbJSvMg
    VbCijygl1nakCe41

    • Slide your opening pick back and forth along the left edge to slice through the adhesive.

    • Leave the pick in at the bottom left corner to prevent the adhesive from resealing.

  4. n3vVVrshSlhKUOo5
    n3vVVrshSlhKUOo5
    ZjQGODHwtoSQJWQ6

    • Insert and slide a second opening pick to the bottom right corner to slice through the adhesive.

    • Leave the pick inserted to prevent the bottom edge from resealing.

    • Repeat this process for the right and top edges of the cover.

  5. uqQuRoos4vFKrKGB
    uqQuRoos4vFKrKGB
    U6MYCaXqBWNMGBL1
    UXJHlk2FMdHpxxHA

    • The fingerprint reader is connected to the motherboard by a fragile cable. You must free it before pulling the cover off.

    • Grab and lift the bottom edge of the cover.

    • As you lift the back cover, press and unstick the fingerprint reader from it.

  6. DyJLOQrMUIsErS3b
    DyJLOQrMUIsErS3b
    ebyguh2aDUOGFdkF
    laQRGQXtRLeTren4

    • Grab and remove the back cover.

    • If your back cover is still sticking to the frame, slide the pick around the edges of the phone to slice through any remaining adhesive.

    • Reassembly notes:

    • This is a good point to test your phone before sealing it up. Follow this guide to perform a hardware test. Be sure to power your phone back down completely before you continue working.

    • To adhere the back cover with custom-cut adhesives, follow this guide.

    • To adhere the back cover with tape, follow this guide.

  7. Y6aCq5DFtLBKpJuw
    Y6aCq5DFtLBKpJuw
    hH3NfEPeHxcCKKMk

    • Flip the fingerprint reader to the left, away from the phone.

    • Don't fold or sharply bend the ribbon cable.

  8. vuhLCmIG1PmKIQMS
    vuhLCmIG1PmKIQMS
    dtBoOYajXXhpjCyY

    • Use your Phillips screwdriver to remove the twelve 3.9 mm-long screws securing the motherboard cover.

  9. X4ow4ygsRaka22s1
    X4ow4ygsRaka22s1
    RKqLJXDNgPqqWOuO

    • Insert the pointed end of a spudger between the bottom right corner of the motherboard cover and the frame.

    • Pry the cover upward until you can grab it with your fingers.

  10. rQ4c34OHNEGUOTtd
    rQ4c34OHNEGUOTtd
    MFcjhoSCZEHqgExO

    • Grab the bottom edge of the motherboard cover and remove it from the frame.

  11. EFFHRxF5emOtURkC
    EFFHRxF5emOtURkC
    x4rrLgshsKlcJWcC

    • Use the pointed end of your spudger to pry and disconnect the battery's press connector.

    • To re-attach press connectors, carefully align and press down on one side until it clicks into place, then repeat on the other side. Don't press down on the middle. If the connector is misaligned, the pins can bend and cause permanent damage.

  12. Xs2q1Dguy6AUTmGh

    • Use your Phillips screwdriver to remove the eight 3.8 mm-long screws securing the loudspeaker.

  13. VqaPLwvppsOfVSlV
    VqaPLwvppsOfVSlV
    AUBikEb6WqOdwCIV

    • Insert your spudger between the top right corner of the loudspeaker and the frame.

    • Pry up to release the loudspeaker.

  14. iTloFTPCwJK5ub2n
    iTloFTPCwJK5ub2n
    1bDPyhejdGQGGYOg

    • Grab the loudspeaker with your fingers and remove it.

  15. QUN6x1KupbGmYvXs
    QUN6x1KupbGmYvXs
    Cd2RK6sCBQPcJNWA

    • Use the pointed end of your spudger to pry and disconnect the board cable's press connector.

    • To re-attach press connectors, carefully align and press down on one side until it clicks into place, then repeat on the other side. Don't press down on the middle. If the connector is misaligned, the pins can bend and cause permanent damage.

  16. b5EBKCWjGQGMlR3m
    b5EBKCWjGQGMlR3m
    RwUNpJBjpeGD5sZd

    • Use the pointed end of your spudger to pry and disconnect the gray antenna cable.

    • Pry on only the metal head of the connector. Avoid lifting the cable itself as much as possible.

    • Free the cable from the retaining clip.

    • During reassembly, these can be tricky to reconnect. Hold the connector in place over its socket and press down with the flat end of a spudger. The connector should snap into place.

    • During reassembly, be sure to secure the cable to the clip in the daughterboard.

  17. JnwACZ24uGoYQcXF
    JnwACZ24uGoYQcXF
    sBdlSleOeHhN5ELF
    bWJSj2qfmNTSiIFF

    • Repeat the previous step for the black antenna cable.

  18. WAeMOuOVLUqhvEtS

    • Use your Phillips screwdriver to remove the 2.5 mm-long screw securing the daughterboard.

  19. AgrgYZ1TKf1kdgts
    AgrgYZ1TKf1kdgts
    aUDPtnCODF3mHKqG
    RwrWyAYvPL2OMcEH

    • Move the black and gray antenna cables away from the daughterboard.

  20. L53vIcETVOgXm4hw
    L53vIcETVOgXm4hw
    BIIqgWuMoRwvQCKP
    hPCQauCsP5sGvBKc

    • Grip the top edge of the daughterboard.

    • Lift and remove the daughterboard from its recess.

    • Be sure not to catch on any loose cables.

  21. Bp1nvHy4HFXVl5Au
    Bp1nvHy4HFXVl5Au
    togFQRcFObRjhKNL
    sWeVMw1cefIINVKm

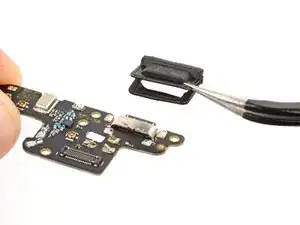

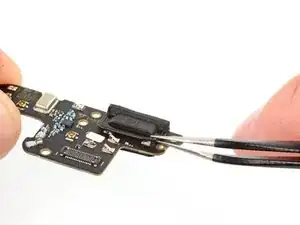

    • Use tweezers to grab and remove the gasket from the charging port.

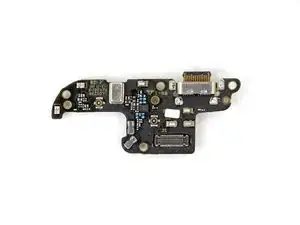

  22. a1HTHCWhWqEmJWJK
    a1HTHCWhWqEmJWJK
    YlDHyQS1KkWpsnWO

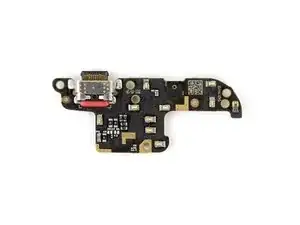

    • The daughterboard is all that remains.

Abschluss

Compare your new replacement part to the original part—be sure to transfer remaining components and remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
