This guide demonstrates how to replace the screen in your 2022 Motorola Moto G Stylus 5G with a genuine Motorola part.

Note: This procedure is for a screen that's pre-installed in a new frame (a.k.a. chassis). You'll need to transplant all of your phone's internals to the new screen.

  1. Xjtk6K2O51eGQgvO
    Xjtk6K2O51eGQgvO
    AEDAZGIYmcv4urGu
    MMGNhv16H1Txndx4

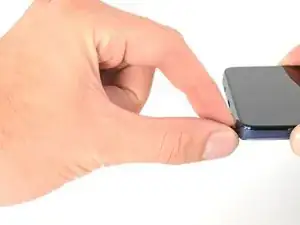

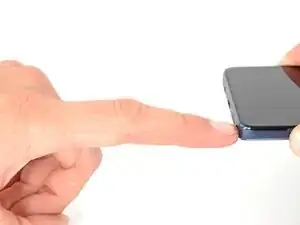

    • Push the button at the base of the stylus to partially eject it.

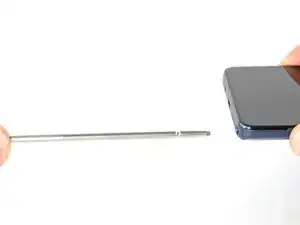

    • Remove the stylus.

  2. aVaWwFlaFSMr2L6g
    aVaWwFlaFSMr2L6g
    UmKftsVm5vWA1gcl
    • Insert a SIM card eject tool or a straightened paperclip into the hole adjacent to the SIM card tray.

    • Press firmly to eject the tray.

  3. dNvGVdJEa2OsT4Oa
    dNvGVdJEa2OsT4Oa
    knQfGPX1xAAj6JJA
    • Grab and remove the SIM card tray from the phone.

    • When reinserting the SIM card, make sure it's in the proper orientation inside the tray.

  4. T451TmNIVvBcPi2r
    • Discharge your battery to 25% or lower and power off your phone before you begin.

    • Heat an iOpener and apply it to the edge of the back cover with the SIM card slot for two minutes.

    • A hair dryer or heat gun may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  5. oTOFFcYAMFsoEqTH
    oTOFFcYAMFsoEqTH
    Qa6keIrxyjibsLK3
    QIlkPSXhJTrnJGEF
    • Apply a suction cup to the back cover, as close to the center of the right edge as possible.

    • Pull up on the suction cup with strong, steady force to create a gap between the cover and the frame.

    • Insert an opening pick into the gap.

  6. 43u2liR4AVwcbD1Y
    43u2liR4AVwcbD1Y
    m1fM5NRUe1rdVChR
    nt5MWA1qhlCSbDFv
    • Slide your opening pick back and forth along the right edge to slice through the adhesive.

    • Leave the pick in at the bottom right corner to prevent the adhesive from resealing.

  7. j5UZdtBNJqDWbqhf
    j5UZdtBNJqDWbqhf
    kBYodWGbEbVJCSBO
    • Insert a second opening pick into the bottom right corner.

    • Slide this opening pick along the bottom edge to the bottom left corner to slice through the adhesive.

    • Leave the pick inserted to prevent the bottom edge from resealing.

  8. uN266NclgmW6u3ue
    uN266NclgmW6u3ue
    5yE1PvGD6NTrgoSw
    XPoeFM4dFShyfvRT
    • Insert a third opening pick into the bottom right corner.

    • Slide this opening pick along the left edge to slice the adhesive.

    • Don't worry about slicing under the camera bezel. It's separate from the back cover and will be removed later.

    • Leave the pick inserted in the top left corner to prevent the left edge from resealing.

  9. OIEFEAxDUXJw4gIy
    OIEFEAxDUXJw4gIy
    H6tdU4dkiHQRE26J
    • Insert a fourth pick into the top left corner.

    • Slide the pick to the top right corner to slice the top adhesive.

  10. CZKlMrxRVgiC3P4L
    • Slide an opening pick between the camera bezel and the back cover.

    • The back cover's adhesive is particularly strong around the camera bezel.

    • Slide the opening pick around the camera bezel to separate the back cover from the frame.

  11. 6rYcfrpQYYSMt1oW
    6rYcfrpQYYSMt1oW
    YKkgmBbjVqZdc4sh
    rQPypTYfYivMupX1
    • Grab and remove the back cover by lifting it away from the phone.

    • If your back cover is still sticking to the frame, slide the pick around the edges of the phone to slice through any remaining adhesive.

    • Reassembly notes:

    • To adhere the back cover with custom-cut adhesives, follow this guide.

    • To adhere the back cover with tape, follow this guide.

  12. K3fEvl55eIQKeliI
    • Heat an iOpener and apply it to the camera bezel for two minutes.

    • A hair dryer or heat gun may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  13. La3kg4vEhtuQSD4k
    La3kg4vEhtuQSD4k
    hH6ryPGaTEeTYfuv
    4Wxsw5tADwLbXYTP
    • Insert an opening pick under the camera bezel.

    • Slide the pick around the perimeter of the bezel to slice the adhesive.

    • If it feels stuck, apply more heat to further loosen the adhesive.

  14. yQ5sCM2voBbbY1h5
    yQ5sCM2voBbbY1h5
    sGAfGcGE4b1XTXEs
    3ZoygEkfaCVbFQDx
    • Grab and remove the camera bezel.

    • Reassembly notes:

    • This is a good point to test your phone before sealing it up. Follow this guide to perform a hardware test. Be sure to power your phone back down completely before you continue working.

    • To adhere the camera bezel with custom-cut adhesives, follow this guide.

    • To adhere the camera bezel with tape, follow this guide.

  15. U4EW4qTOF2shtKVP
    • Use a Phillips screwdriver to remove the eleven 4.1 mm-long screws securing the motherboard cover.

    • If you can't find all the screws, check under any leftover adhesive residue.

  16. tQUZQCERV5mPnwv6
    tQUZQCERV5mPnwv6
    kyaqv3gXxQVGuaqo
    fdxpGN1lVCnNi3uW
    • Insert a spudger between the bottom right corner of the cover and the frame.

    • Pry up to release the clips securing the cover.

    • Slide the spudger toward the top of the cover and pry to release the right edge.

  17. vJvCGQAK1JSAh25I
    vJvCGQAK1JSAh25I
    oVtFndpOAtRIJoqH
    • Grip the right edge of the cover and pull it off the motherboard.

  18. bPrHggmeuDhav16K
    bPrHggmeuDhav16K
    xABWqy16B1u2J2oa
    • Use the point of a spudger to pry up the battery's press connector.

    • When you disconnect connectors like these, be careful not to dislodge the small surface-mounted components surrounding the socket.

    • To re-attach press connectors, carefully align and press down on one side until it clicks into place, then repeat on the other side. Don't press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

  19. EiI6FqEA2OeCvKXw
    EiI6FqEA2OeCvKXw
    bZZlYb6IGlrufctP
    • Use the pointed end of your spudger to pry and disconnect the display's press connector.

  20. gsrQyNsOVXSoUJdI
    gsrQyNsOVXSoUJdI
    MeVyHqNySxDxc5yA
    • Use the pointed end of your spudger to pry and disconnect the white antenna cable.

    • Pry on only the metal head of the connector. Avoid lifting the cable itself as much as possible.

    • During reassembly, these can be tricky to reconnect. Hold the connector in place over its socket and press down with the flat end of a spudger. The connector should snap into place.

  21. W1yoaZ2fMRE1NFiD
    W1yoaZ2fMRE1NFiD
    ZIOHKkSvbXamkyHy
    • Use the pointed end of a spudger to pry up and disconnect the board cable's press connector.

  22. U2cXiGK3WKfxZ1Sb
    U2cXiGK3WKfxZ1Sb
    3lXjJVD2yC1I64ts
    • Use the pointed end of a spudger to pry up and disconnect the 5G mmWave antenna's press connector.

  23. N5yNtlYSYKXeAiJe
    • Use your Phillips screwdriver to remove the 3 mm-long screw securing the motherboard.

  24. ktfBLUPqNPKhUeBg
    ktfBLUPqNPKhUeBg
    NP125iirXvVuioOf
    l1P5opaRXkNxKqNL
    • Lift and fold the graphite film off the battery and flip it onto the motherboard.

    • Use caution not to tear the film. It's adhered lightly to the battery.

  25. xZc162ROhNH162xj
    xZc162ROhNH162xj
    JK3yFrjU11v2SPPG
    IL4i2vObFMTqjAkQ
    • Grab the motherboard from the bottom edge and lift it from its recess.

    • Be sure the loose cables don't catch on the motherboard as it's removed.

    • During reassembly, make sure no cables or connectors become trapped underneath the motherboard.

  26. JWUw6gB5O2PAsnpY

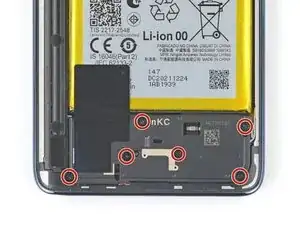

    • Use your Phillips screwdriver to remove the six 4.1 mm-long screws from the loudspeaker.

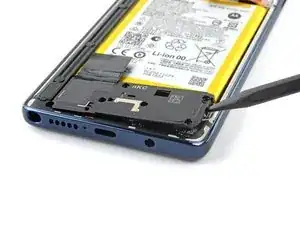

  27. eHZsZRToHrFUnhyI
    eHZsZRToHrFUnhyI
    YUWnOYBtMSKVfeaW

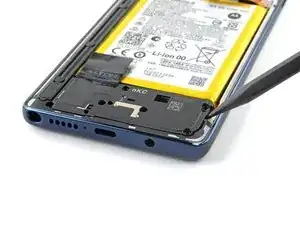

    • Insert the point of a spudger between the frame and the right edge of the loudspeaker.

    • Pry and release the right edge of the loudspeaker.

    • The loudspeaker is secured loosely to the frame by small clips.

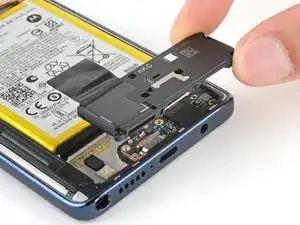

  28. 2e4xqMk5KJF6ABQy
    2e4xqMk5KJF6ABQy
    rDsQrTXH1v1R4Ur4

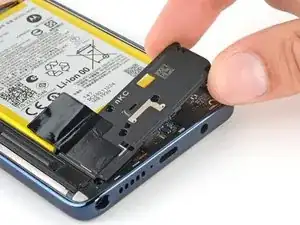

    • Grab the loudspeaker by its right edge and remove it.

  29. dACfgJHrGrvmtIgt
    dACfgJHrGrvmtIgt
    PXreyjsKedAmLK2n

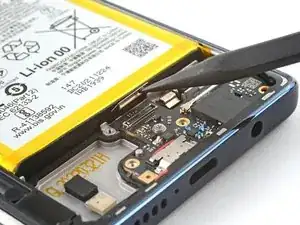

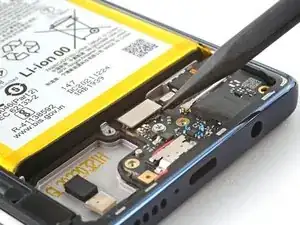

    • Use the point of a spudger to pry and disconnect the daughterboard cable's press connector.

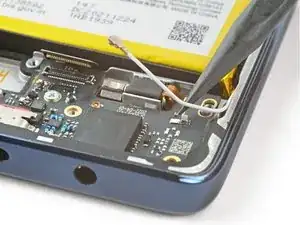

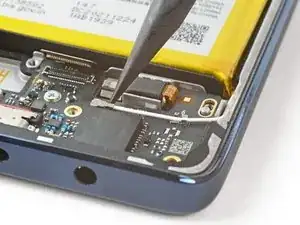

  30. mjoASa1y6IntJMxD
    mjoASa1y6IntJMxD
    QACM3L5TTQnZ1Y6G
    iyDyJcpQD4VNG1WU

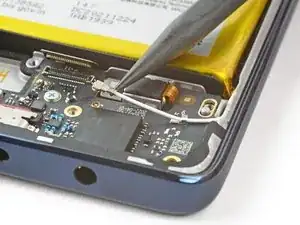

    • Use the point of your spudger to pry and disconnect the white antenna cable.

    • Pry on only the metal head of the connector. Avoid lifting the cable itself as much as possible.

    • Free the cable from the clip in the top-right of the daughterboard.

    • During reassembly, these can be tricky to reconnect. Hold the connector in place over its socket and press down with the flat end of a spudger. The connector should snap into place.

    • During reassembly, be sure to secure the cable to the clip in the daughterboard.

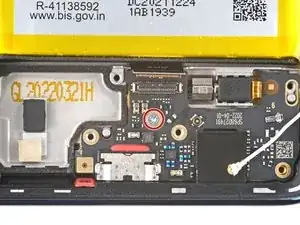

  31. G3J1XSIOguXvaTmn
    • Use a Phillips screwdriver to remove the 3 mm-long screw securing the daughterboard.

  32. 34BCH4pBWhZaBRd3
    34BCH4pBWhZaBRd3
    QGytcTNjsr2nHCVZ
    MkpWEIAUweDUcMOi

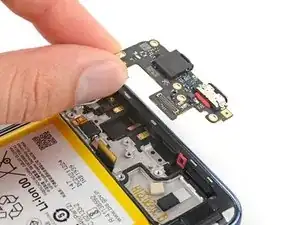

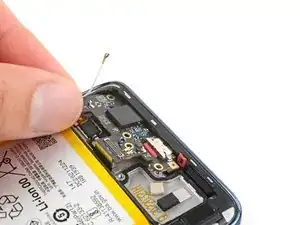

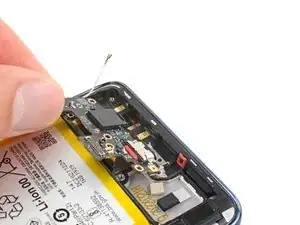

    • Grab and lift the top edge of the daughterboard.

    • Make sure the daughterboard doesn't snag on any loose cables as you lift it out.

    • Remove the daughterboard from its recess.

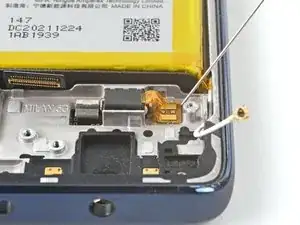

  33. YkjWNrEOoDZYW35Y
    YkjWNrEOoDZYW35Y
    2nan2OEoKj1yjOPp

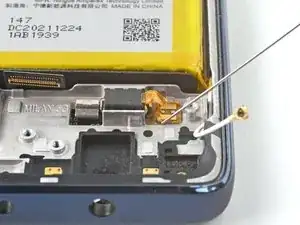

    • The vibration motor cable is strongly adhered to the frame. Before attempting to peel it, follow this step to weaken the adhesive securing it.

    • Apply highly-concentrated isopropyl alcohol (over 90%) to the flex cable.

    • Alternatively, use a heated iOpener, hair dryer, or heat gun to soften the adhesive.

    • Use caution to not overheat the battery or surrounding components.

  34. QaIVMxFFVJ2W4IrK
    QaIVMxFFVJ2W4IrK
    uBjCITThV3DQGVfh
    6MWLYckJwBbOGhHr

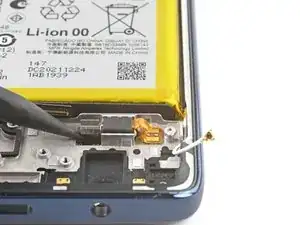

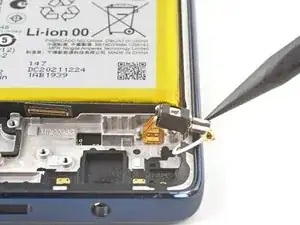

    • While you wait for the adhesive to soften, remove the vibration motor from its recess:

    • Insert the point of your spudger between the motor counterweight and the frame.

    • Pry the motor out of its recess and flip it to the right.

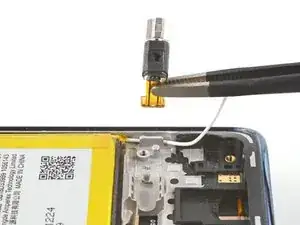

  35. PKYeeJ6rMJEVZFnf
    PKYeeJ6rMJEVZFnf
    U1Foo5mSYIUQE3HP
    cYeLsHtp4ZRFdJxG

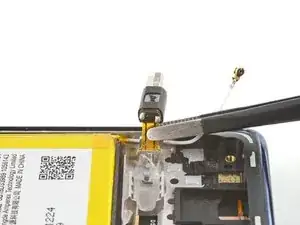

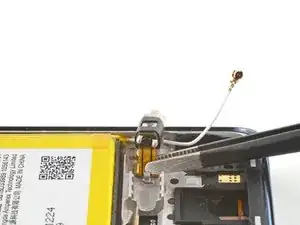

    • The vibration motor's flex cable is very fragile. Work slowly to prevent tearing the cable.

    • With blunt nose tweezers, grab the base of the flex cable as close to the frame as possible.

    • Slowly and steadily peel the cable from the frame.

    • If the cable feels stuck or re-adheres, apply more isopropyl alcohol or heat.

    • Remove the vibration motor from the frame.

    • Apply new adhesive to your vibration motor before installing it in the frame.

  36. ACncJRxPOZaMryPr
    ACncJRxPOZaMryPr
    g64GRNHbwwUiGRix
    3gvmtheYlRMCY4Xa

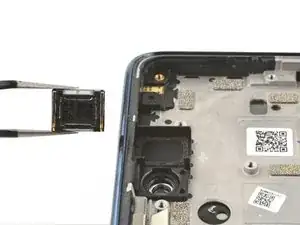

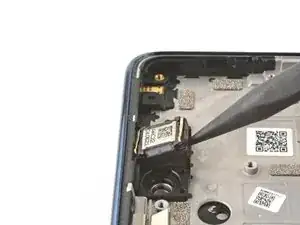

    • Use the pointed end of a spudger to pry the bottom edge of the earpiece speaker up out of the frame.

    • Remove the earpiece speaker from its recess.

    • During reassembly, orient the speaker so the raised sides of the connectors are closest to the front-facing camera.

  37. ym6ZiZ1agGiDSwpn
    ym6ZiZ1agGiDSwpn
    QAAMfhWjkJWHxjJh
    1dWIcVG4rBLClQEX

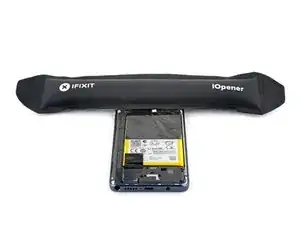

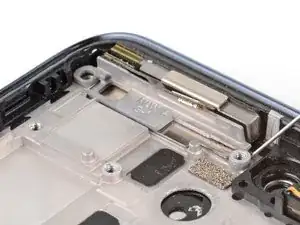

    • Heat an iOpener and apply it to the antenna bracket in the upper left of the frame for two minutes.

    • A hair dryer or heat gun may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

    • Alternatively, use highly-concentrated isopropyl alcohol (over 90%) between the bracket and upper left of the frame.

  38. 65TANFEHqK1E5ZGV
    65TANFEHqK1E5ZGV
    ShLU2ADPPWHukLm6
    YSE4MvvNim2sCKcP

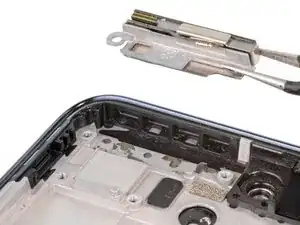

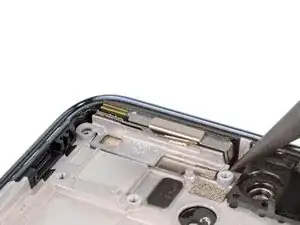

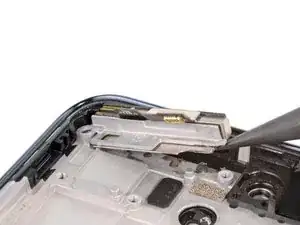

    • Insert the pointed end of a spudger between the right side of the 5G mmWave antenna bracket and the frame.

    • Pry up the bracket.

    • A strong metal tape holds the bracket to the frame. Work slowly to avoid tearing this adhesive tape.

    • Remove the bracket from its recess.

    • During reassembly, remove the old adhesive from the bracket and frame, then apply new adhesive.

  39. lykpC5KGbYsPTo3C

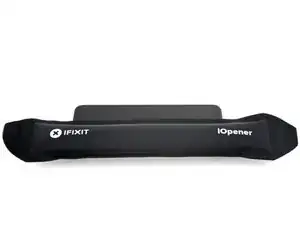

    • Heat an iOpener and apply it to the left edge of the screen for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  40. lIEuq2RKSo4qfbrm
    lIEuq2RKSo4qfbrm
    pUvdKATLEw1BIFoB

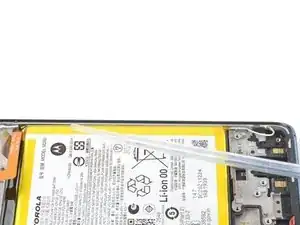

    • Additionally, you may use highly-concentrated isopropyl alcohol (over 90%) to further loosen the adhesive securing the battery.

    • Apply the isopropyl alcohol into the gaps between the sides of the battery and the frame.

    • Wait one minute to allow the isopropyl alcohol to penetrate.

  41. IWHjxy1rZeSlrv1A
    IWHjxy1rZeSlrv1A
    bThCCIDNlvDaqaeB
    VUnOVoppE5qtSIRJ

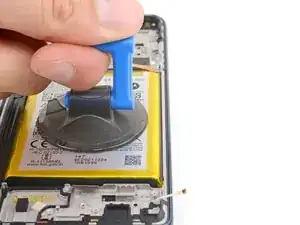

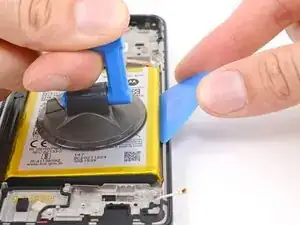

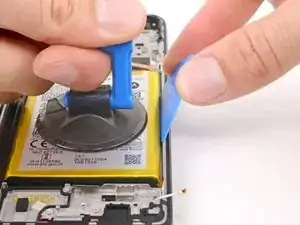

    • Place a suction handle on the center of the battery.

    • Insert an opening pick between the right edge of the battery and the frame.

    • Use a steady force to pull on the suction handle and simultaneously pry with the pick.

    • Don't use excessive force on the battery. Slow, consistent pressure is all that is required to free it from the frame.

    • Apply more isopropyl alcohol if the battery re-adheres.

  42. FIrKnPGbsPQI6fCx
    FIrKnPGbsPQI6fCx
    6j5YYhqswpaAHIwd

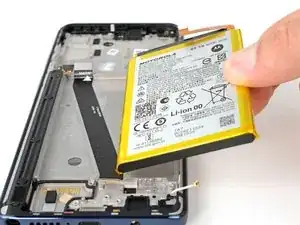

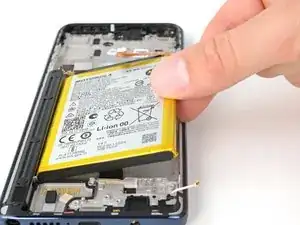

    • Remove the battery from its recess.

    • Don't reinstall a damaged or deformed battery, as doing so is a potential safety hazard.

    • Use this guide to install a battery with custom-cut adhesives, or use this guide to install a battery with an adhesive sheet.

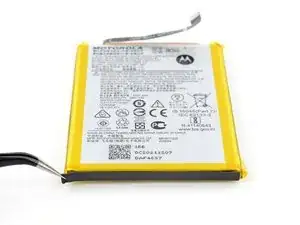

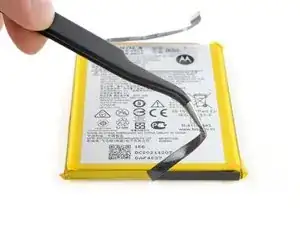

  43. TXQoygGVSxM2HOUZ
    TXQoygGVSxM2HOUZ
    NELUnGAxSQcfQsL6
    SIXfpgfASicoV4WB
    • If you're reusing your old battery, skip this step.

    • Peel and remove the foam strip from the bottom of the battery.

    • Apply the foam strip onto your new battery.

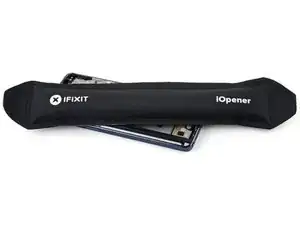

  44. ZLyXxLL2cXrfxsFk
    • The iOpener may stick to the residue left over from the battery. Clean the surrounding surface with some isopropyl alcohol to prevent this.

    • Heat an iOpener and apply it to the board cable for two minutes.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display is susceptible to heat damage.

  45. Ox1LS2geABWHkN3y
    Ox1LS2geABWHkN3y
    XHxZFxcZIWs2VssW
    sUbalIoPKLnoJ6bc

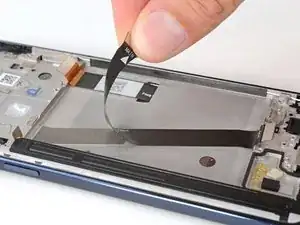

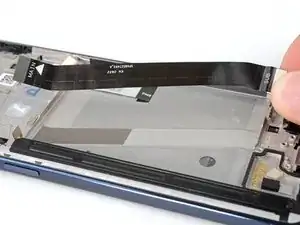

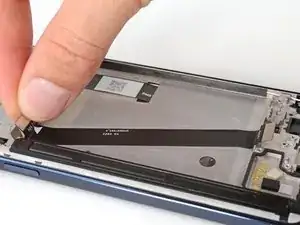

    • Peel and remove the board cable from the frame.

    • Don't fold or sharply bend the cable.

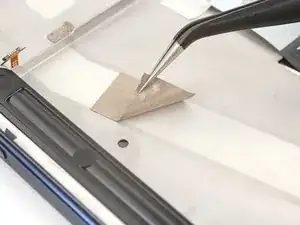

  46. SfFJexWKFA2NiBrH
    SfFJexWKFA2NiBrH
    jO2DNXTuOvxNmDrm
    n2D1RIDWLQS6Ub5w

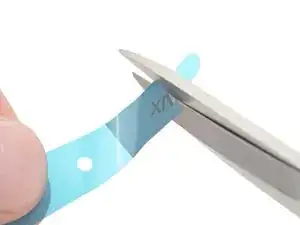

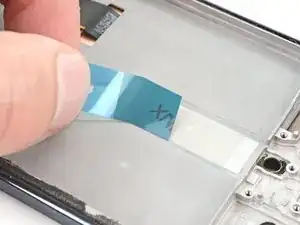

    • This step shows how to replace the conductive adhesive for the board cable during reassembly. If your frame has this adhesive preinstalled, skip this step.

    • If necessary, cut the adhesive blocks to fit into contours of the cable channel. The adhesive doesn't need fit the contours perfectly.

    • Peel the adhesive blocks from the adhesive sheet.

    • Place the adhesives in the board cable channel. Space them evenly through the channel.

    • Peel any remaining plastic liners to expose the adhesive.

  47. EHNOOveVUG6yApsL
    EHNOOveVUG6yApsL
    tJkbXwU5MhplUmAV
    UeD3bSjiLiLitU2H

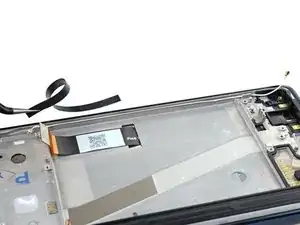

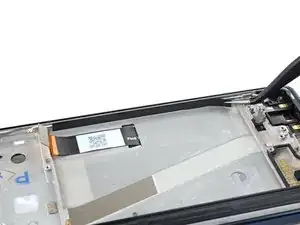

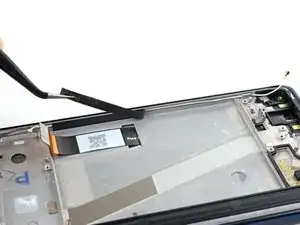

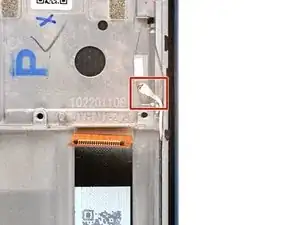

    • Use your tweezers to peel and remove the black tape securing the antenna cable.

    • During reassembly, you may reuse the tape if the adhesive is intact. If not, follow this guide to use a pre-cut adhesive strip instead.

  48. xCRSqQIZ6ZGlrS5F
    xCRSqQIZ6ZGlrS5F
    jAuKCdnJ1sGmg6ZL

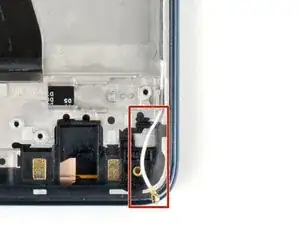

    • The extra antenna cable length on either side of the frame is very important for its alignment.

    • Leave no extra length in the cable where it connects to the motherboard, and all of its available length to the daughterboard.

  49. D34lWrXaKAATMmCu
    D34lWrXaKAATMmCu
    sGmd1QSQAmWIj2JE

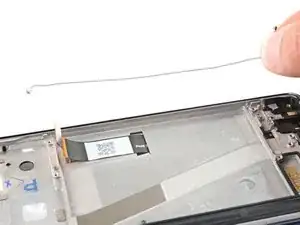

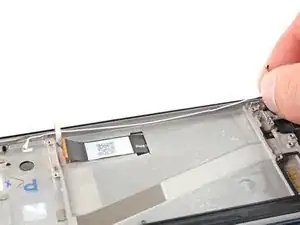

    • Grab and lift the antenna cable from the frame.

  50. WsTrJfb3erGIfsxb

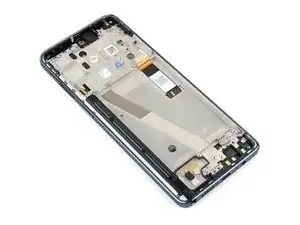

    • The screen is all that remains.

Abschluss

Compare your new replacement part to the original part—be sure to transfer remaining components and remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.

Clay Eickemeyer

Mitglied seit: 19/09/22

23447 Reputation

2 Kommentare

This is a decent guide. I'm going to attempt to do this repair myself. I did it successfully twice on my Samsung Note 9 which seemed a lot less complicated but we will see. Thanks for the clearly written guide with plenty of pics, side notes, and for not bashing alternative products and methods and actually adding them in as options. This is a one of a kind guide so far in my book. You should write all guides for everything. All others should be removed from the internet.

r.dunne71 -

Good luck with your repair! Thank you for the kind feedback.

Clay Eickemeyer -
