Nintendo Switch Lautsprecher austauschen

Geschrieben von: Blake Klein

Kommentare: 50

Nintendo Switch Lautsprecher austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

40 Minuten - 2 Stunden

Einleitung

Diese Anleitung zeigt dir, wie du den rechten und den linken Lautsprecher in der Nintendo Switch entfernen kannst.

Werkzeuge

Ersatzteile

Nintendo Switch Speaker

Schritt 1

Schalte das Gerät komplett aus, bevor du mit der Reparatur beginnst.
Drücke und halte den kleinen runden Knopf auf der Rückseite des Joy Con Controllers.
Halte den Knopf weiterhin gedrückt und schiebe den Controller nach oben.

Schritt 2

Schiebe den Joy Con nach oben ganz aus dem Gerät heraus.
Wiederhole das Ganze für den anderen Joy Con.

Schritt 3

Entferne die vier 6,3 mm langen Tri-Point Y00 Schrauben von der Rückabdeckung.
Halte während der ganzen Reparatur die Schrauben gut geordnet und achte darauf, dass jede Schraube wieder an ihren alten Platz kommt.

Had to use a Y0 from my kit - the Y00 was too small to get a grip on the screw.

cday - 05/06/21

I also had a much easier time with Y0 versus Y00. Y00 felt like it was starting to strip the first screw I tried to remove.

Joe -

My screws took a little coaxing before they were all ready to come out of the back plate, but I remedied this by turning the screwdriver as little as possible with each turn. Use almost no pressure, except for at the very beginning of each screw’s first turn.

nin10doh -

I think my screws are stripped, any way to get them out?

Banjomanperson -

I hear that using a rubber band can help? Not 100% sure on that though.

Pifase -

Schritt 4

Nimm einen JIS 000 Schraubendreher oder ein Ph000 Bit von iFixit und entferne folgende Schrauben, mit denen die Rückabdeckung befestigt ist:
Eine einzelne 2,5 mm Schraube an der Oberkante des Gerätes.
Zwei 2,5 mm lange Schrauben an der Unterkante des Gerätes
Diese Schrauben sitzen sehr fest, um zu verhindern, dass die Schraubenköpfe beschädigt werden, musst du fest nach unten drücken und langsam arbeiten. Wenn die Schrauben nicht heraus kommt, verwende einen anderen JIS 000 oder Kreuzschlitz 000 Schraubendreher.

Hey guys, I tried removing the upper screw and it won't go out(neither will it go in) any tips how to fix this?

Thanks

Nemysis - 27/03/21

The screw boss might be stripped out. Has the device been taken apart before? If you can unscrew it a little bit to get the screw to peek out, maybe try and grab it with some pliers as a last-ditch effort.

Craig Lloyd - 29/03/21

I have the same problem. The JIS 000 tool works great on the joy con rails per step 5 but refuses to turn the bottom two 2.5 mm screws as in step 4. These bottom screws are noticeably smaller than the screws as in step 5. The JIS 000 does not get down into these screws. Hopefully they haven’t been stripped by the wrong tool. So is there a JIS tool that is smaller than 000? I’m stuck at this point…

david brown - 28/04/21

We used the JIS 3.0mm screwdriver for both top and bottom screws and it worked

Brooklyn Gardner - 07/05/21

Used PH00 to get these out with no problem.

cday - 05/06/21

Fun fact: these screw into little plastic tabs that stick out of the rear panel. Apparently those tabs are fragile and easy to just break off…

Benjamin Fritz -

My screws came out fine. But they are easily stripped with too much pressure on reassmbly

Jaxon Lee -

this screws are way too fragile and way too small so be careful when taking them off dont use much force and unscrew also one of them fell somewhere and spent 30 mins searching for it

Richard Aguirre -

PH000 will work if you don’t have JIS000. The large IFIXIT kit has both and I lost JIS000. Just be very careful as you can strip the heads when removing or inserting easier.

Shawn Spivey -

One thing that worked pretty well for me with the screws not coming out is slightly prying on the back cover to put them under some tension

Florian Kraupa -

Quick note, these screws are not magnetic. A magnetic screwdriver will hold onto any of the others safely, but you need to be careful not to drop these ones in particular.

Jason Lane -

These would just keep rotating and not come out. What worked was, as Florian Kraupa suggested, i slid a plastic pick just between the 2 shells near the screws to prise it open slightly, then unscrewed and out they came. They're the smallest screws I've ever almost not seen before, so be careful with them.

Susannah Carter -

Schritt 5

In der Mitte auf jeder Seite des Gerätes befindet sich eine 3,8 mm JIS 000 Schraube. Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und drehe sie beide heraus.

I tried my JIS 000 on Step 5 and was unable to get the screw to budge. It’s partner from the other side came right out with no trouble. Don’t really want to narf up the screw, so I bailed out. Anyone else have this issue?

mrhoyt - 04/03/21

Could just be torqued down a bit more! I’d recommend making sure the driver bit seats nicely into the screw, apply some downward pressure, and slowly twist to try and back it out. Good luck!

Craig Lloyd - 05/03/21

Yeah I’m having this exact issue. Screw stripped and now I’m stuck. Wish I hadn’t even started.

Ryan Quinn - 22/05/21

I did finally get it out- one thing I noticed was some of the screws have blue Loctite on the threads. I guess they figure it’ll get tossed around. This underscores the importance of having the correct tools and making double darn sure you are using the correct size, etc.

mrhoyt - 05/03/21

What worked for me here was a Phillips 000, not a JIS 000

Federico Zivolo - 21/04/21

One of mine is totally stripped. Guess I can’t do anything now.

Nick -

My kit only has two screwdriver heads! The package was open when I received it!

Cynthia Hyland -

I had this issue as well. Screw was irreparably stripped. If you can get every other screw out, just keep applying pressure with a flat head screw driver right above the stripped screw and try to break the plastic piece holding onto the screw. It's a very minor invisible bit of damage that will allow you to continue the repair.

Raymond Garrison -

Schritt 6

Klappe den Aufsteller auf der Rückseite des Gerätes mit den Fingern heraus.
Wenn im microSD-Kartenleser noch eine microSD-Karte ist, dann hole sie jetzt heraus, bevor du mit den nächsten Schritt weitermachst.

Don't put your SD card on your magnetic mat.

Chris Cotter -

Schritt 7

Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und entferne die 1,6 mm JIS 000 Schraube in der Vertiefung für den Aufsteller.
Klappe den Aufsteller zu.

Schritt 8

Öffne die Cartridge-Klappe.
Diese Klappe schließt an der anderen Hälfte des Kunststoffgehäuses an. Im geschlossenen Zustand verhindert sie, dass du die Rückabdeckung komplett abheben kannst.
Hebe die Rückabdeckung von der Unterseite des Gerätes her hoch und entferne sie.

How to remove micro SD port?

Pull straight up, press back into place when closing back up.

Christopher Hernandez - 02/03/21

This step is missing in this guide. Here are the steps from another guide:

Step 9) Nintendo Switch rechte Joy-Con Sensorschiene austauschen

Step 10) Nintendo Switch rechte Joy-Con Sensorschiene austauschen

David -

Schritt 9

Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und entferne die sechs 3 mm JIS 000 Schrauben, mit denen das Abschirmblech am Gerät befestigt ist.

Some models have a small board in the lower left beneath the kickstand which accepts SD cards. This will have to be carefully removed with its connections popped out, then replaced after.

Draque Thompson -

Yeah, that “small board” is the microSD Card reader chip, which was covered literally one step ago. All models have a microSD Card reader, that’s how game data is stored…

nin10doh - 12/12/21

Schritt 10

Ziehe das Stück Schaumstoff an der Oberkante des Gerätes nahe bei der Lüfteröffnung mit den Fingern oder einer Pinzette zurück.
Wenn sich der Schaumstoff nicht leicht ablösen lässt, dann ziehe ihn nicht mit Gewalt ab, er könnte zerreißen. Löse ihn behutsam an verschiedenen Stellen ab, bis du ihn ganz entfernen kannst.

My Switch (bought about two weeks after launch) seems to be missing this foam piece… Was it added later, similar to the foam piece in the left joy-con (to improve connectivity)?

firetech - 05/02/21

It’s possible it was added to newer units! Nintendo slightly updated the internals of the Switch not too long ago.

Craig Lloyd - 05/02/21

My launch Switch also does not have this piece of foam, so it was most likely added later.

Christoph -

Also did not see this in my launch switch.

matthew.raehl -

Schritt 11

Setze einen Spudger am Rand des Gerätes unter das Abschirmblech ein.
Heble nach oben, hebe das Abschirmblech hoch und entferne es.
Es geht vielleicht ein bisschen schwer, weil das Abschirmblech wegen der Wärmeleitpaste am Kühlkörper haftet.
Der Spalt zwischen Abschirmblech und dem darunterliegenden kupfernen Kühlkörper wird durch eine dicke rosafarbene Wärmeleitpaste überbrückt. Dies schützt die Switch vor Überhitzung
Wenn du vorsichtig bist, kannst du die rosa Wärmeleitpaste weiterverwenden. Achte beim Zusammenbau darauf, dass sie nicht schmutzig wird und einen guten Kontakt zwischen dem Kühlkörper und der Abschirmung herstellt.
Wenn die Wärmeleitpaste ausgetauscht werden muss, dann entferne sie zuerst ganz mit Hilfe unserer Anleitung für Wärmeleitpaste und ersetze sie durch eine geeignete Paste, wie z.B. K5 Pro.

How do you know if the thermal paste needs to be replaced?

Youji Hong - 27/08/19

Once you remove a heatsink you must always replace thermal paste even if you had just applied it ( or add a little more) . The reason is that once heat sink is fitted, paste splits around because of pressure and only needed amount will remain. If you remove the heatsink then some paste will move so when installed again there will be spots without paste. Hope this is clear enough. In any case cost of paste is very small compared to work time and value of your equipment…..

MacTek - 15/12/19

When your switch starts to lag and drop FPS, if you play breath of the wild and it starts to slow down in heavy areas like the forest where you get the master sword, can i use artic mx 4 insted of the pink compound?

Diego Soto - 30/08/19

I’d like to know as well if a cpu thermal compound like arctic mx-4 can be used to replace the pink compound

Adam Stillman - 06/09/19

No you shouldn't . It will spill around because it is not viscous enough and then there will be no heat transfer. As suggested by author K5 PRO is the most appropriate compound for such cases.

MacTek - 15/12/19

Arctic is generally only supposed to be used on bigger heat sinks like a personal computer. Its not nearly as thick or gummy compared to K5 PRO, and you should always use something that’s thicker for smaller project like a Switch/phone/tablet.

Shawn Christensen - 20/12/19

Why was this not included in the tools/equipment list? Getting to this step and now I will have to reverse and wait for yet another order to arrive. ? Very frustrated

Amanda Nally - 12/03/21

Hi Amanda,

Thanks for bringing this up. Sorry! We inadvertently left that part out during the guide refresh. I’ll add the necessary info into the step.

Arthur Shi - 12/03/21

To apply new thermal paste, the directions state to use the application method recommended for your specific processor type—vertical line, horizontal line, middle dot, or surface spread.

Which method should be used for the Nintendo Switch processor?

Philip W -

As stated in the comment above, is there a particular method to apply thermal paste to the Switch’s processor? Or as long as you distribute it evenly is enough?

lievjorg -

Schritt 12

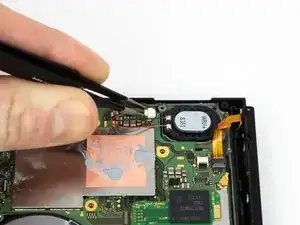

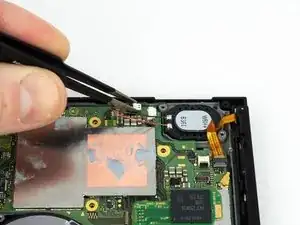

Ziehe den rechten Lautsprecherstecker gerade aus seinem Anschluss auf der Hauptplatine.

Schritt 13

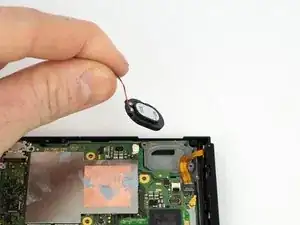

Hebe den Lautsprecher vorsichtig an seinen Kabeln hoch und ziehe ihn zum Entfernen in einem 45° Winkel heraus.

Schritt 14

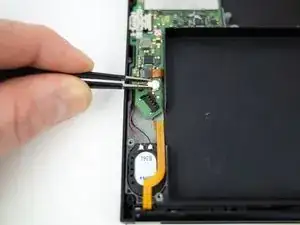

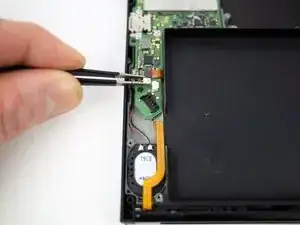

Ziehe den linken Lautsprecherstecker gerade aus seinem Anschluss auf der Hauptplatine.

Schritt 15

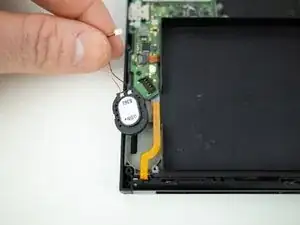

Hebe den Lautsprecher vorsichtig an seinen Kabeln hoch und ziehe ihn zum Entfernen in einem 45° Winkel heraus.

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.
