Nintendo Switch linke Joy-Con Sensorschiene austauschen

Geschrieben von: Craig Lloyd

Kommentare: 80

Nintendo Switch linke Joy-Con Sensorschiene austauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Diese Anleitung zeigt dir,wie du eine defekte linke Joy-Con Sensorchiene an der Nintendo Switch austauschen kannst.

In der Switch sind JIS-Schrauben verbaut, zur Not passen aber auch Bits für Kreuzschlitzschrauben. Sei aber sehr vorsichtig und beschädige die Schraubenköpfe nicht. Die Bits von iFixit können auch für JIS-Schrauben verwendet werden.

Hinweis: Wenn du das Abschirmblech ausgebaut hast, musst du die Wärmeleitpaste zwischen der Oberfläche und dem Kühlkörper ersetzen. Normale Wärmeleitpaste ist nicht geeignet, größere Spalten zu überbrücken, der beste Ersatz ist K5 Pro viskose Wärmeleitpaste.

Hinweis: Diese Anleitung und das von uns verkaufte Ersatzteil ist für das originale Nintendo Switch Modell von 2017 geeignet, aber auch für das neuere Modell von 2019 (Modellnummer HAC-001 und HAC-001(-01)).

Werkzeuge

Ersatzteile

Nintendo Switch Left Joy-Con Sensor Rail

Schritt 1

Schalte das Gerät komplett aus, bevor du mit der Reparatur beginnst.
Drücke und halte den kleinen runden Knopf auf der Rückseite des Joy Con Controllers.
Halte den Knopf weiterhin gedrückt und schiebe den Controller nach oben.

Schritt 2

Schiebe den Joy Con nach oben ganz aus dem Gerät heraus.
Wiederhole das Ganze für den anderen Joy Con.

Schritt 3

Entferne die vier 6,3 mm langen Tri-Point Y00 Schrauben von der Rückabdeckung.
Halte während der ganzen Reparatur die Schrauben gut geordnet und achte darauf, dass jede Schraube wieder an ihren alten Platz kommt.

Had to use a Y0 from my kit - the Y00 was too small to get a grip on the screw.

cday - 05/06/21

I also had a much easier time with Y0 versus Y00. Y00 felt like it was starting to strip the first screw I tried to remove.

Joe -

My screws took a little coaxing before they were all ready to come out of the back plate, but I remedied this by turning the screwdriver as little as possible with each turn. Use almost no pressure, except for at the very beginning of each screw’s first turn.

nin10doh -

I think my screws are stripped, any way to get them out?

Banjomanperson -

I hear that using a rubber band can help? Not 100% sure on that though.

Pifase -

Schritt 4

Nimm einen JIS 000 Schraubendreher oder ein Ph000 Bit von iFixit und entferne folgende Schrauben, mit denen die Rückabdeckung befestigt ist:
Eine einzelne 2,5 mm Schraube an der Oberkante des Gerätes.
Zwei 2,5 mm lange Schrauben an der Unterkante des Gerätes
Diese Schrauben sitzen sehr fest, um zu verhindern, dass die Schraubenköpfe beschädigt werden, musst du fest nach unten drücken und langsam arbeiten. Wenn die Schrauben nicht heraus kommt, verwende einen anderen JIS 000 oder Kreuzschlitz 000 Schraubendreher.

Hey guys, I tried removing the upper screw and it won't go out(neither will it go in) any tips how to fix this?

Thanks

Nemysis - 27/03/21

The screw boss might be stripped out. Has the device been taken apart before? If you can unscrew it a little bit to get the screw to peek out, maybe try and grab it with some pliers as a last-ditch effort.

Craig Lloyd - 29/03/21

I have the same problem. The JIS 000 tool works great on the joy con rails per step 5 but refuses to turn the bottom two 2.5 mm screws as in step 4. These bottom screws are noticeably smaller than the screws as in step 5. The JIS 000 does not get down into these screws. Hopefully they haven’t been stripped by the wrong tool. So is there a JIS tool that is smaller than 000? I’m stuck at this point…

david brown - 28/04/21

We used the JIS 3.0mm screwdriver for both top and bottom screws and it worked

Brooklyn Gardner - 07/05/21

Used PH00 to get these out with no problem.

cday - 05/06/21

Fun fact: these screw into little plastic tabs that stick out of the rear panel. Apparently those tabs are fragile and easy to just break off…

Benjamin Fritz -

My screws came out fine. But they are easily stripped with too much pressure on reassmbly

Jaxon Lee -

this screws are way too fragile and way too small so be careful when taking them off dont use much force and unscrew also one of them fell somewhere and spent 30 mins searching for it

Richard Aguirre -

PH000 will work if you don’t have JIS000. The large IFIXIT kit has both and I lost JIS000. Just be very careful as you can strip the heads when removing or inserting easier.

Shawn Spivey -

One thing that worked pretty well for me with the screws not coming out is slightly prying on the back cover to put them under some tension

Florian Kraupa -

Quick note, these screws are not magnetic. A magnetic screwdriver will hold onto any of the others safely, but you need to be careful not to drop these ones in particular.

Jason Lane -

These would just keep rotating and not come out. What worked was, as Florian Kraupa suggested, i slid a plastic pick just between the 2 shells near the screws to prise it open slightly, then unscrewed and out they came. They're the smallest screws I've ever almost not seen before, so be careful with them.

Susannah Carter -

Schritt 5

In der Mitte auf jeder Seite des Gerätes befindet sich eine 3,8 mm JIS 000 Schraube. Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und drehe sie beide heraus.

I tried my JIS 000 on Step 5 and was unable to get the screw to budge. It’s partner from the other side came right out with no trouble. Don’t really want to narf up the screw, so I bailed out. Anyone else have this issue?

mrhoyt - 04/03/21

Could just be torqued down a bit more! I’d recommend making sure the driver bit seats nicely into the screw, apply some downward pressure, and slowly twist to try and back it out. Good luck!

Craig Lloyd - 05/03/21

Yeah I’m having this exact issue. Screw stripped and now I’m stuck. Wish I hadn’t even started.

Ryan Quinn - 22/05/21

I did finally get it out- one thing I noticed was some of the screws have blue Loctite on the threads. I guess they figure it’ll get tossed around. This underscores the importance of having the correct tools and making double darn sure you are using the correct size, etc.

mrhoyt - 05/03/21

What worked for me here was a Phillips 000, not a JIS 000

Federico Zivolo - 21/04/21

One of mine is totally stripped. Guess I can’t do anything now.

Nick -

My kit only has two screwdriver heads! The package was open when I received it!

Cynthia Hyland -

I had this issue as well. Screw was irreparably stripped. If you can get every other screw out, just keep applying pressure with a flat head screw driver right above the stripped screw and try to break the plastic piece holding onto the screw. It's a very minor invisible bit of damage that will allow you to continue the repair.

Raymond Garrison -

Schritt 6

Klappe den Aufsteller auf der Rückseite des Gerätes mit den Fingern heraus.
Wenn im microSD-Kartenleser noch eine microSD-Karte ist, dann hole sie jetzt heraus, bevor du mit den nächsten Schritt weitermachst.

Don't put your SD card on your magnetic mat.

Chris Cotter -

Schritt 7

Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und entferne die 1,6 mm JIS 000 Schraube in der Vertiefung für den Aufsteller.
Klappe den Aufsteller zu.

Schritt 8

Öffne die Cartridge-Klappe.
Diese Klappe schließt an der anderen Hälfte des Kunststoffgehäuses an. Im geschlossenen Zustand verhindert sie, dass du die Rückabdeckung komplett abheben kannst.
Hebe die Rückabdeckung von der Unterseite des Gerätes her hoch und entferne sie.

How to remove micro SD port?

Pull straight up, press back into place when closing back up.

Christopher Hernandez - 02/03/21

This step is missing in this guide. Here are the steps from another guide:

Step 9) Nintendo Switch rechte Joy-Con Sensorschiene austauschen

Step 10) Nintendo Switch rechte Joy-Con Sensorschiene austauschen

David -

Schritt 9

Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und entferne die einzelne 3,1 mm JIS000-Schraube, mit der der microSD-Kartenleser befestigt ist.

Schritt 10

Hebe den microSD-Kartenleser mit den Fingern oder einer Pinzette nach oben vom Gerät weg, löse ihn ab und entferne ihn.
Achte beim Zusammenbau darauf, dass der Druckstecker unter dem Schaumstoff fest mit der Hauptplatine verbunden ist. Es kann hilfreich sein, den Schaumstoff zu entfernen, bevor der Kartenleser wieder eingebaut wird.

Yes. The reverse is not so simple- you can’t see what you’re doing when you attempt to reconnect and it only takes one small error to completely bend the contacts on the connector. Very delicate.

if you very gently remove the foam pad sticker, you can at least see better how it lines up and can feel your way to a degree… then you can stick the pad back in. The pad seems pretty critical in keeping things in place once reassembled.

holmzee - 08/12/19

Definitely agree about not sticking the foam pad back on until the new SD card slot is connected. Saved a lot of headache. Great walkthrough and easy repair!

Jonathan Stachewicz - 06/01/21

Tried several times to replace this SD reader module. As mentioned above, the issue is aligning the connectors together. It appears the foam tape is being used to hold the connection in place. (assuming you can make a viable connection) I am rather surprised at this design. In my experience, mylar ribbon cables like this usually slide into a small PC mounted socket. It appears Nintendo went the cheap route here. This design is prone to failure since it does not enable a positive connection - at least from what I can see.

Bill Little - 28/12/19

Alors je suis en détresse total . Jai cassé les bouches en or sur le connecteur qui est soudé sur la carte mère.. comment changer cette toute petite pièces, oû la trouver . Cela fais 1 mois que je cherche partout. Sans remplacer la carte mère. Merci pour vos réponses

Mike Snow - 23/03/20

I found it easier to connect it without the black foam pad so I could see and than add the foam pad over it. It was super easy and I an I 33 Mom doing this for my son. Was well worth the money for the kit saved us almost 100 bucks

Katherine Harrison - 12/05/20

Had my son follow this guide to fix his own switch where the ad card reader didn't work. And he did. Great instructions!!!! Thanks a million!

William Scott - 04/07/20

The only difficult part of following this guide is connecting the new sd card reader into the poorly designed motherboard connector. Its quite possible the sd card reader that came in the console wasnt broken at all.

The repair kit works just as advertised and even comes with stickers.

Matthias_ Links - 21/10/20

I’m still getting error 2002-2054 even after replacing memory card reader module. Thanks, Nintendo!

Wes Stephenson - 26/12/20

My switch won’t read my microSD card after I reassembled it (error 2016-0641) please help!

Nate Topical - 01/01/21

Tip: Keep the old SD reader piece loosely attached while you line up and gently press the new SD component into the connector on the motherboard. Once the new piece is snug, then carefully remove the old piece keeping the sticky foam in place.

I am a middle-aged mom with absolutely no special tech skills and I easily followed the directions and successfully fixed the broken SD drive. ifixit is the best!

Wende David - 29/01/21

Ah good! i have more confidence now in doing it once you said you're a middle age mom with no experience

Mohammad Hosein Yavari -

I missed this bit about reconnecting the SD card reader under the foam pad and didn’t realise until my son pointed out a data storage problem?. All fixed in about 5 minutes taking advice from the replacing the SD card reader fix, especially removing the foam pad from the connector to better see and feel what you’re doing. All sorted!

Stuart Farquharson-Roberts - 28/03/21

Awesome guide! Very easy to do with the supplied kit

cravenkeo khamone - 13/05/21

Tank you very much, and by tank I mean M1 Abrams, jokes apart easy and simple to follow

Elia Veschi -

Thanks for the guide, I was struggling to find a solution, replaced more sd cards, before I stumbled upon this post. The Switch of my children works flawless again!

Robert Morvai - 25/08/21

Doesn’t work! I have spent 4 hours and $26 on a tiny screwdriver and some stickers.. I just gave up and replaced the Switch instead.

I even contacted a local shop to have them fix it and they told me it really isn’t possible. Thanks for taking my money Ifixit!

J.R. Wood -

This helped me to reseat my SD card reader ribbon cable. I was getting the 2016-0641 error and no card work. A drop had dislodged the cable partially. And yes remove the foam pad gently to properly connect the cable. You can reuse the foam pad.

Kris Morey -

For anyone who ends up bending the pins like I did while trying to reseat the microSD card reader…

I suggest gently placing very thin tweezers (like the curved ones in the Pro Tool Kit) in the gap and very, very gently pressing them back into alignment. Took a little effort but I was able to realign them enough to sit it in place and have it later working after reassembling the console.

Yakarot Sennin - 13/01/22

Anyone have a suggestion where I can purchase replacement foam for this sticker?

Rob M -

When reassembling, note the alignment pins in the left and bottom notches before tightening the screw

Jason Lane -

Super gemakkelijk te installeren met behulp van deze zeer duidelijke handleiding (met dank aan de vertalers!)

Wel even goed opletten op de aansluiting op het moederbord is zeer fragiel.

R de Bruijne -

It is key to remember most out of the box issues with the SD card reader, do not require a replacement part and can be solved with disconnecting then re-connecting the reader at the motherboard.

Only when a simple re-seating at the connector doesn't work should you buy the replacement part.

Jonathon Sinclair -

I bought the kit and followed the directions. I plucked the black rubber foam off with a pair of eyelash tweezers. Putting the tiny screws back in place also was made easier using the tweezers. As for placing the SD card in place I think I got a bit lucky. I lined it up and gently pressed until it simply went into place. I do believe being gentle is the key there. But it went in and I put it back together. The deconstructing and reconstructing is what took the longest for me at least. I turned it on to verify it worked and then unpowered the unit and inserted the card. The system recognized and update right away and did it and then recognized the card! Just what I need for 20 something dollars. Son is happy and back to gaming.

Albert Baker -

Thank you for postingthis fix. The original sd card reader had come unplugged from the motherboard, so replacement reader will be a spare.

Anybody found a way to ensure the sd reader stays in place?

Craig Thwaites -

It was my first time repairing a Switch and the fan replacement wasn't too hard, but unfortunately I think there should be a better warning about the SD card connector because I damaged it while trying to put it back in. I couldn't hear any click and it didn't seem to stay put and I think I ended up applying to much force and damaging the pins.

Serge Huber -

Schritt 11

Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und entferne die sechs 3 mm JIS 000 Schrauben, mit denen das Abschirmblech am Gerät befestigt ist.

Some models have a small board in the lower left beneath the kickstand which accepts SD cards. This will have to be carefully removed with its connections popped out, then replaced after.

Draque Thompson -

Yeah, that “small board” is the microSD Card reader chip, which was covered literally one step ago. All models have a microSD Card reader, that’s how game data is stored…

nin10doh - 12/12/21

Schritt 12

Ziehe das Stück Schaumstoff an der Oberkante des Gerätes nahe bei der Lüfteröffnung mit den Fingern oder einer Pinzette zurück.
Wenn sich der Schaumstoff nicht leicht ablösen lässt, dann ziehe ihn nicht mit Gewalt ab, er könnte zerreißen. Löse ihn behutsam an verschiedenen Stellen ab, bis du ihn ganz entfernen kannst.

My Switch (bought about two weeks after launch) seems to be missing this foam piece… Was it added later, similar to the foam piece in the left joy-con (to improve connectivity)?

firetech - 05/02/21

It’s possible it was added to newer units! Nintendo slightly updated the internals of the Switch not too long ago.

Craig Lloyd - 05/02/21

My launch Switch also does not have this piece of foam, so it was most likely added later.

Christoph -

Also did not see this in my launch switch.

matthew.raehl -

Schritt 13

Setze einen Spudger am Rand des Gerätes unter das Abschirmblech ein.
Heble nach oben, hebe das Abschirmblech hoch und entferne es.
Es geht vielleicht ein bisschen schwer, weil das Abschirmblech wegen der Wärmeleitpaste am Kühlkörper haftet.
Der Spalt zwischen Abschirmblech und dem darunterliegenden kupfernen Kühlkörper wird durch eine dicke rosafarbene Wärmeleitpaste überbrückt. Dies schützt die Switch vor Überhitzung
Wenn du vorsichtig bist, kannst du die rosa Wärmeleitpaste weiterverwenden. Achte beim Zusammenbau darauf, dass sie nicht schmutzig wird und einen guten Kontakt zwischen dem Kühlkörper und der Abschirmung herstellt.
Wenn die Wärmeleitpaste ausgetauscht werden muss, dann entferne sie zuerst ganz mit Hilfe unserer Anleitung für Wärmeleitpaste und ersetze sie durch eine geeignete Paste, wie z.B. K5 Pro.

How do you know if the thermal paste needs to be replaced?

Youji Hong - 27/08/19

Once you remove a heatsink you must always replace thermal paste even if you had just applied it ( or add a little more) . The reason is that once heat sink is fitted, paste splits around because of pressure and only needed amount will remain. If you remove the heatsink then some paste will move so when installed again there will be spots without paste. Hope this is clear enough. In any case cost of paste is very small compared to work time and value of your equipment…..

MacTek - 15/12/19

When your switch starts to lag and drop FPS, if you play breath of the wild and it starts to slow down in heavy areas like the forest where you get the master sword, can i use artic mx 4 insted of the pink compound?

Diego Soto - 30/08/19

I’d like to know as well if a cpu thermal compound like arctic mx-4 can be used to replace the pink compound

Adam Stillman - 06/09/19

No you shouldn't . It will spill around because it is not viscous enough and then there will be no heat transfer. As suggested by author K5 PRO is the most appropriate compound for such cases.

MacTek - 15/12/19

Arctic is generally only supposed to be used on bigger heat sinks like a personal computer. Its not nearly as thick or gummy compared to K5 PRO, and you should always use something that’s thicker for smaller project like a Switch/phone/tablet.

Shawn Christensen - 20/12/19

Why was this not included in the tools/equipment list? Getting to this step and now I will have to reverse and wait for yet another order to arrive. ? Very frustrated

Amanda Nally - 12/03/21

Hi Amanda,

Thanks for bringing this up. Sorry! We inadvertently left that part out during the guide refresh. I’ll add the necessary info into the step.

Arthur Shi - 12/03/21

To apply new thermal paste, the directions state to use the application method recommended for your specific processor type—vertical line, horizontal line, middle dot, or surface spread.

Which method should be used for the Nintendo Switch processor?

Philip W -

As stated in the comment above, is there a particular method to apply thermal paste to the Switch’s processor? Or as long as you distribute it evenly is enough?

lievjorg -

Schritt 14

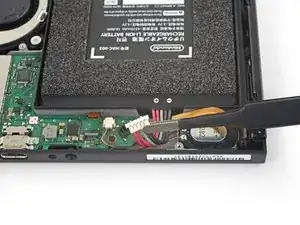

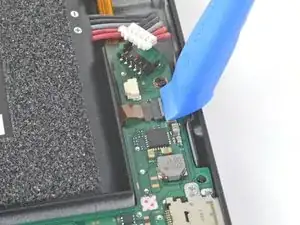

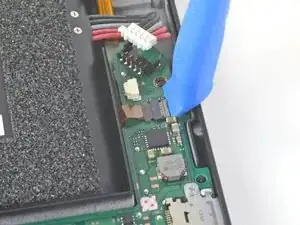

Heble den Akkustecker mit der Spudgerspitze gerade nach oben und löse ihn aus seinem Anschluss auf der Hauptplatine heraus.

be careful not to pry it off the board entirely

Nathan McKenna -

This was an old switch and the entire thing with the black plastic came off.. Most of the pins aren't there anymore, too.. is there a solution to that? Does soldering work?

Dawn Martin -

it's probably possible, but unless you have experience with microsoldering, you'd probably be better off taking it to a local repair shop

just some mango -

Schritt 15

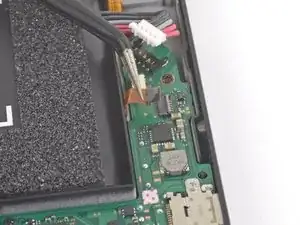

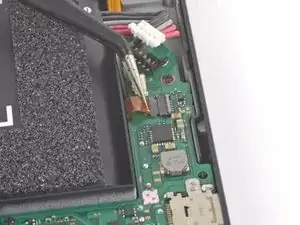

Klappe den kleinen, scharnierartigen Sicherungsbügel am ZIF-Verbinder des Datenkabels zum Joy Con Sensorschiene mit einem Fingernagel, Spudger oder einem Öffnungswerkzeug hoch.

Schritt 16

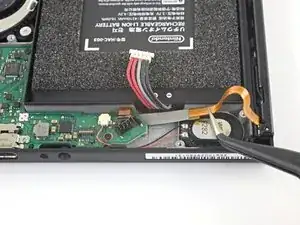

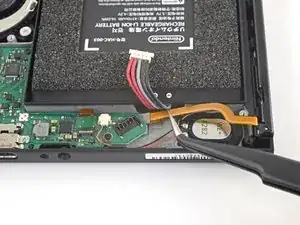

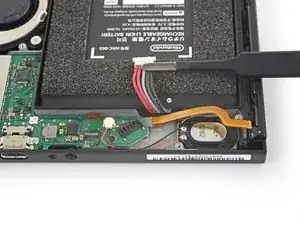

Schiebe das Datenkabel der Joy Con Sensorschiene mit einer Pinzette gerade aus seinem Anschluss auf der Hauptplatine heraus.

Schritt 17

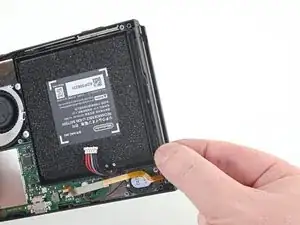

Hebe den Akkustecker mit den Fingern oder einer Pinzette nach oben, so dass er nicht mehr im Weg des Datenkabels zur Joy Con Schiene ist.

Schritt 18

Hebe den Akkustecker mit den Fingern oder einer Pinzette nach oben, so dass er nicht mehr im Weg des Datenkabels zur Joy Con Schiene ist.

Schritt 19

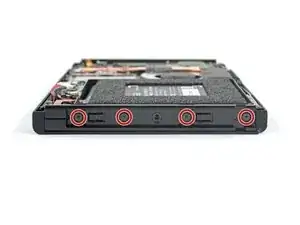

Nimm einen JIS 000 Schraubendreher/Bit oder ein Original PH000 Bit von iFixit und entferne die vier 3,7 mm Schrauben, mit denen die linke Joy Con Schiene am Rahmen des Gerätes befestigt ist.
Diese Schrauben sind kräftig angezogen, es kann schwer sein, sie herauszudrehen. Passe auf, dass die Schraubenköpfe nicht rundgedreht werden. Drücke das Werkzeug beim Herausdrehen fest nach unten und arbeite langsam. Wenn die Schraube nicht herauskommt, dann probiere einen anderen Schraubendreher/Bit.

2 of the screws woint budge whats should i do ??

Tim Lelieveld -

Schritt 20

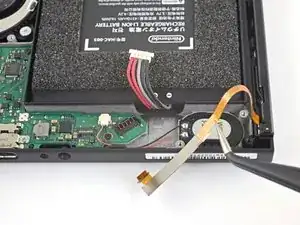

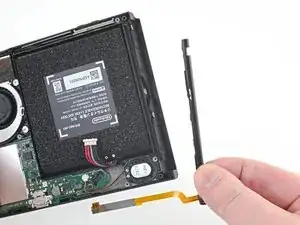

Entferne die linke Joy Con Sensorschiene.

Is the silver section on the ribbon of the rail, close to where it locks in, important? My replacement part I bought doesn't have one, and I can't find anything specified about it anywhere.

Angel Lawson -

Hello, Angel! That silver section has the adhesive to hold the ribbon cable in place, but it’s not a crucial component. If you can plug in the ribbon cable and the rail works just fine, then that’s probably good enough!

Craig Lloyd -

Abschluss

Vergleiche das Ersatzteil mit dem Originalteil. Möglicherweise musst du fehlende Bauteile übertragen oder Schutzfolien vom Neuteil abziehen.

Um dein Gerät wieder zusammenzubauen, folge den Schritten dieser Anleitung in umgekehrter Reihenfolge.

Entsorge deinen Elektromüll fachgerecht.

Lief die Reparatur nicht wie geplant? Probiere zunächst einige grundsätzliche Lösungen oder frage in unserem Nintendo Switch Forum nach Hilfe bei der Fehlersuche.

Tinte & Feder

Craig Lloyd

Mitglied seit: 10/02/16

30032 Reputation

5 Kommentare

If this was a neon Switch, this would be the rail that gets attached with the blue or the red joy con?

felipemanzur21 - 25/06/19

it would be the Blue joy con

Nick Heilman - 25/06/19

I completed this guide, but the left joy con is still not being detected after the sensor rail was replaced with a sensor rail purchased on this site. The joy con in question will attach and sync with another console, so that leads me to believe it is a fault with the switch console itself. Is there something else that I can replace that would fix this issue?

Sean Douglas - 23/06/20

Depending on where you get your replacement rail, it may not have the silver on the ribbon cable. No worries, as I did this repair 3 months ago (Jan) and had no issues at all.

To get the ribbon cable in place, I recommend first getting the battery wires out of the way, then slightly bending it and sliding it under that section of the Motherboard. If you do it right, the end of the ribbon cable will pop up and that can be slid into place. Took some fiddling but I eventually got it to work!

No matter what, never crease your ribbon cables!

Yakarot Sennin -

I have a joycon where it will disconnect if it is slotted all the way down. I have to push it up about 1mm for it to stay connected. The joycon works perfectly on other Switch consoles. Any idea of what troubleshooting I can try before replacing the whole rail?

Azrael -
