Samsung Galaxy Book Pro 15" Touchpad Replacement

Geschrieben von: Alex Diaz-Kokaisl
  • Kommentare: 0
Samsung Galaxy Book Pro 15" Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

15 - 30 Minuten

Einleitung

Use this guide to replace the touchpad in your Galaxy Book Pro 15" Laptop with a genuine Samsung part.

Before you begin, refer to the Samsung PC Repair Guide for safety information.

For your safety, discharge the battery below 25% before disassembling your device. This reduces the risk of a thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

  1. HTyDgbiLsTi2wgNM
    HTyDgbiLsTi2wgNM
    5aE4tSww6TYMyDLj
    aRGCQqZ4CrH2GU42

    • Before you begin, power down your laptop and unplug it.

    • There are two kinds of rubber feet along the top and bottom of the rear case. Keep track of their position as you remove them.

    • Insert an opening pick between the rubber foot and the rear case.

    • Pry up with the opening pick to release the clips securing the foot.

    • Remove the foot.

    • Repeat this procedure for the three remaining feet.

    • During reassembly, press the feet into their correct slot to reinsert them. Mismatched feet won't fit correctly.

  2. jLcXiL1IG2511Ytk
    jLcXiL1IG2511Ytk
    SYUMGMUY1JZ5IDBo

    • Use a Phillips screwdriver to remove the four 4.5 mm-long screws securing the rear case.

    • If you're reassembling with the Samsung Self-Repair kit, be sure to replace the screws with new ones labeled #3313.

  3. dZ15UHrTO2rDYrW4
    dZ15UHrTO2rDYrW4
    utVDfO3wyKKNEnT4
    WEwAYSWxSMHrXvFr

    • Apply a suction cup to the rear case, as close to the center of the bottom edge as possible.

    • Pull up on the suction cup with strong, steady force to create a gap between the rear case and the frame.

    • Insert an opening pick into the gap.

  4. Y2kHCiQhGT6GoIy2
    Y2kHCiQhGT6GoIy2
    tVWucyBNEdF5pSJg
    ukgx5LvtimGNGDOJ

    • Slide the pick along the bottom edge of the rear case to release its plastic clips.

    • Repeat this process for the left and right edges, but stop before reaching the top edge.

  5. KeNh3JiLb2hYVUxH
    KeNh3JiLb2hYVUxH
    4W2uOnJGDkvmPCRj
    wXFQvLmBfuvEFOS6

    • The top edge of the rear case is lightly adhered to the frame.

    • Pull the top of the rear case away from the frame to separate the adhesive and release the remaining clips.

    • If you're having trouble separating the adhesive, use an iOpener, hair dryer, or heat gun to soften it.

    • Remove the rear case.

    • During reassembly, perform the following:

    • If you're using a using a genuine Samsung replacement rear case, be sure to peel off any adhesive liners from the rear case before securing the top edge's clips.

    • If you're reusing your rear case, you can use some pre-cut adhesive to re-adhere the top edge if your existing adhesive is no longer sticky.

    • This is a good point to power on your laptop and test all functions before sealing it up. Be sure to power your laptop back down completely before you continue working.

  6. MAARGWltOuSoyXI3
    MAARGWltOuSoyXI3
    ePOaLgYQuOR2Cw1a

    • Insert a spudger between the frame and the bottom of the battery cable connector.

    • Pry up and disconnect the battery cable connector.

  7. PfHENlDDDhBJICEP
    PfHENlDDDhBJICEP
    lYSoKvJKX4JP3tBp

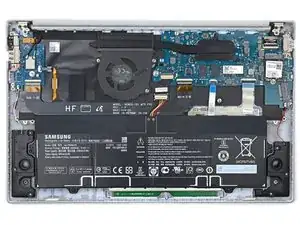

    • Use a Phillips screwdriver to remove the four 4.5 mm-long screws securing the battery.

    • Take care not to puncture the battery with your screwdriver—a punctured battery may leak dangerous chemicals or cause a fire.

  8. 3jOmw6HLMEE6HPiG
    3jOmw6HLMEE6HPiG
    qpieHrsQjyWdLq4H
    raaIx2HlZAVBnPKd

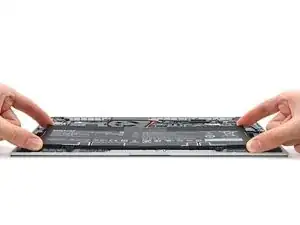

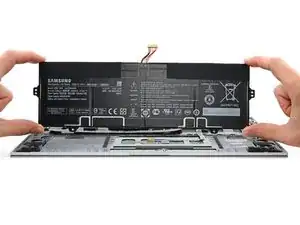

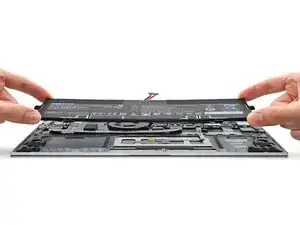

    • Lift the battery straight out of the frame and remove it.

  9. Fy2M1OOmXq1aOOaO
    Fy2M1OOmXq1aOOaO
    dxqvEoDa1eTBfQnG

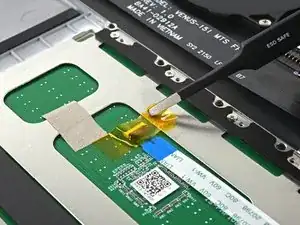

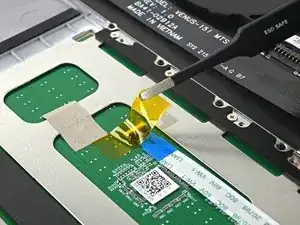

    • Use tweezers, or your fingers, to peel back and remove the yellow tape covering the touchpad's cable connector.

  10. 5342sJm3xRLI4Nch
    5342sJm3xRLI4Nch
    fOIKYMeqJM33pxfK

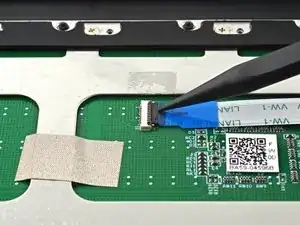

    • Use a spudger to gently pry up the locking flap on the ZIF connector for the touchpad cable.

  11. splHFCEapqW2IEeO
    splHFCEapqW2IEeO
    pBitUlJNRVTTVOJp

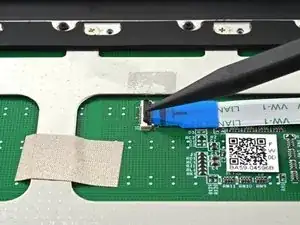

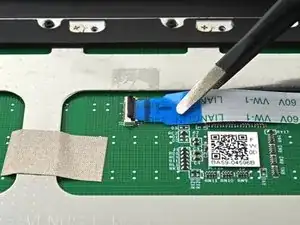

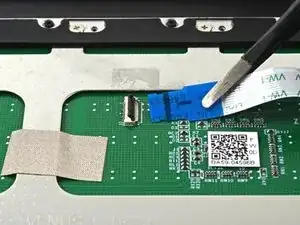

    • Disconnect the touchpad cable by sliding it out from its socket on the touchpad.

  12. KbTrf1MrCJUVGyZE
    KbTrf1MrCJUVGyZE
    NBVFqtbSfSuxR5yP

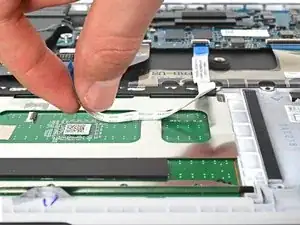

    • The touchpad cable is lightly adhered to the touchpad.

    • Use your fingers, or tweezers, to peel the touchpad cable away from the touchpad and separate its adhesive.

  13. 2EwrdeTOuukS2UIZ
    2EwrdeTOuukS2UIZ
    mVQaMbWKJU2h2ejl

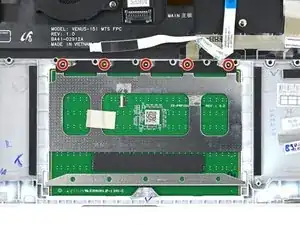

    • Use a Phillips #00 screwdriver to remove the five 1.7 mm screws securing the touchpad.

  14. gCciAQ5CCmOrLRkH
    gCciAQ5CCmOrLRkH
    jjREOpN4kbDOerNU
    5qEfZWDmmHJs5tJJ

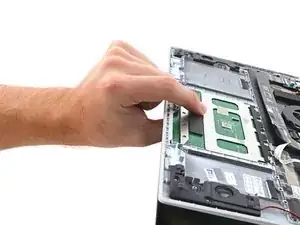

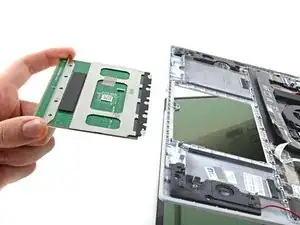

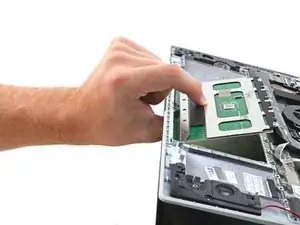

    • Swing the display open slightly, but keep the laptop upside-down.

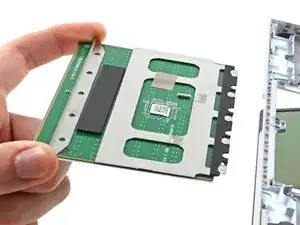

    • Tilt the touchpad upwards and away from the frame.

    • Pull the touchpad towards the top of the laptop to separate it from its recess in the frame.

    • Remove the touchpad.

  15. NPX4LcYSf3CBaitU
    NPX4LcYSf3CBaitU
    tMiCnKrB55F5fTUS

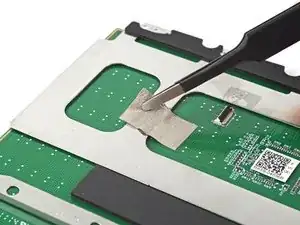

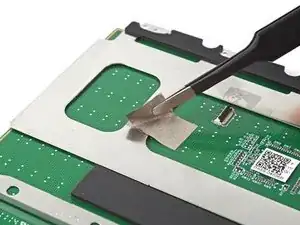

    • Use tweezers to peel off and remove the conductive tape on the touchpad.

    • Set the tape aside. You'll reuse it during reassembly.

Abschluss

To reassemble your device, follow the instructions in reverse order and perform the opposite actions, e.g., "reattach" instead of "removing." Skip steps that use heating and prying, and pay close attention to the 📌 bullets as you work through the steps.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Check out our Answers community for troubleshooting help.
