Use this guide to replace the motherboard in your Samsung Galaxy Tab S7+

For your safety, discharge the battery below 25% before disassembling your tablet. This reduces the risk of fire if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

There is a significant chance that you may break the unreinforced and fragile display panel during this procedure. Be sure to apply plenty of heat and be extremely careful during the prying stage.

You'll need replacement adhesive in order to complete this repair.

Some photos in this guide are from a different model and may contain slight visual discrepancies, but they won't affect the guide procedure.

  1. 2NfdVT3Z4g1ZNL2V
    • Completely power off your device before you begin.

    • Apply a heated iOpener to the bottom edge of the device for three minutes to loosen the adhesive underneath.

    • The display adhesive of the Galaxy Tab S7+ is extremely strong, and it's likely you need to reheat and reapply the iOpener several times before starting the display removal and during the removal procedure.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the device.

  2. pUKUy1REmsiHN5iP
    pUKUy1REmsiHN5iP
    gyqtMjSUYXATwNUH
    vDLgxA4JfbsJvVN2
    • While you're waiting for the adhesive to loosen, note the following:

    • There's a long circuit board attached to the screen that sits parallel to the bottom edge.

    • Don't insert the pick more than 2 mm to avoid damaging the circuit board.

    • This image shows an example of a damaged display separating from the glass panel.

    • Don't insert the pick more than 3 mm to avoid damaging the display.

  3. h6wmhRLGOcepVyGB
    h6wmhRLGOcepVyGB
    bqUIoJIuuxGcPCAm
    CvYtnhYQ1CLtfUte
    • Once the screen is warm to touch, apply a suction handle to the bottom edge of the screen and as close to the edge as possible.

    • If your screen is badly cracked, covering it with a layer of clear packing tape may allow the suction cup to adhere. Alternatively, very strong tape may be used instead of the suction handle. If all else fails, you can superglue the suction cup to the screen.

    • Lift the screen with the suction handle to create a small gap between the screen and the frame.

    • Insert an opening pick into the gap between the frame and the screen.

    • Don't insert the pick more than 2 mm to avoid damaging the circuit board.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  4. pZeWxIWPiMbKkVCr
    pZeWxIWPiMbKkVCr
    DWysWRIegKJ3Zxl1
    XcjcDcNBRmlKZqhj
    • Insert a new opening pick into the gap you created.

    • Slide the new pick along the bottom edge of the device towards the bottom-right corner.

  5. uKlDEsgoiBBvY3Zs
    • Apply a heated iOpener to the right edge of the device for two minutes to loosen the adhesive underneath.

  6. QHOAFXpZZwQQ5Lml
    QHOAFXpZZwQQ5Lml
    tyt1FMVSbM1MCTZ6
    LvLHPgJvxvIjKCUp
    • Rotate the opening pick around the bottom-right corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  7. Ux4GTHVEgxjPGK3n
    Ux4GTHVEgxjPGK3n
    As2DCWARjrdYXPhr
    gSLXWUQrZNK1yeWr
    • Insert a new opening pick into the gap you created at the bottom right corner.

    • Don't insert the pick more than 3 mm to avoid damaging the components along the right edge.

    • Slide the new pick along the right edge of the device towards the top-right corner.

  8. HU6RIAXg2QwoZN4k
    • Apply a heated iOpener to the top edge of the device for two minutes to loosen the adhesive underneath.

  9. yAcGGRwmCdrCFuc6
    yAcGGRwmCdrCFuc6
    BjDL5YayaRTVFnqE
    EiF2VfQb4XI4y1jB
    • Rotate the opening pick around the top-right corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  10. LUAJ2MnN3bfTyKno
    LUAJ2MnN3bfTyKno
    YCag2XJs1SvTabcW
    YsZ1ShNuSyogs4RB
    • Insert a new opening pick into the gap you created.

    • Slide the new pick along the top edge of the device towards the top-left corner.

  11. fMCg54njxAwyWMEV
    • Apply a heated iOpener to the left edge of the device to loosen the adhesive underneath.

  12. BfZ3xJYsiGL4igkE
    BfZ3xJYsiGL4igkE
    EJHHOUk3JVPtWC1N
    XchZUpxLpZxYmsHs
    • Rotate the opening pick around the top-left corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  13. dFQcEjUDv4vgdKrF
    dFQcEjUDv4vgdKrF
    sBbSDhuTHTVk1EcL
    FEAsrhQRiuK6nume
    • Insert a new opening pick into the gap you created.

    • Slide the new pick along the left edge of the device towards the bottom-left corner.

  14. hFDIWJQOZWsblOGJ
    hFDIWJQOZWsblOGJ
    XCr4PdQpcRlnZ5xi
    YYpQ2jfcuDZ6RfwY
    • Rotate the opening pick around the bottom-left corner of the device.

    • Leave the opening pick in place to prevent the adhesive from resealing.

    • At this point, the perimeter of the screen should be separated from the frame. If there's still resistance around the edges of the screen, use an opening pick to cut the adhesive again.

  15. UkOrkkKjMYuSqH3U
    UkOrkkKjMYuSqH3U
    VEmpR2AZ1iULvEsn
    UZTCkKtTlkasKndD
    • Don't try to remove the screen all the way yet; it's still connected by a flex cable.

    • With the top of the device facing you, lift the bottom edge of the screen up and away from you like you're opening a book.

    • Rest the screen upside down before continuing.

    • Be careful not to strain the flex cable.

    • During reassembly:

    • This is a good point to power on your tablet and test all functions before sealing it up. Be sure to power your tablet back down completely before you continue working.

    • Remove any adhesive chunks with a pair of tweezers or your fingers. Use some high concentration (over 90%) isopropyl alcohol to wipe away any adhesive residue.

    • If you're using Samsung custom-cut adhesives, follow this guide. If you're using double-sided tape, follow this guide.

  16. FPMrkFmmoHIlCcaY
    FPMrkFmmoHIlCcaY
    1VoICHCo4qJNkU5X
    • Use the flat end of a spudger to pry up and disconnect the display cable's press connector from the back of the screen.

    • Be careful not to damage the wide display flex ribbons on the bottom edge of the screen.

    • To re-attach press connectors like this one, carefully align and press down on one side until it clicks into place, then repeat on the other side. Do not press down on the middle. If the connector is misaligned, the pins can bend, causing permanent damage.

  17. OUf6KFT3xax4VObQ
    OUf6KFT3xax4VObQ
    EikEZB2HIDD2xAmj
    • Use tweezers, or your fingers, to hold the display cable in place.

    • Use the flat end of a spudger to pry up and disconnect the fingerprint sensor's press connector attached to the display cable.

    • Take note of the display cable's position—you'll need to bend it in the same way when connecting a new screen.

  18. NRaiy5IHwKnwYmAJ
    NRaiy5IHwKnwYmAJ
    h2lAXccTlcnUaH2Z
    • Remove the screen from the frame.

  19. nYlFwZIsycL2y1n5
    nYlFwZIsycL2y1n5
    fPlNtyuZGKlR1rdO
    2DFRXYBjIdCO14d1
    • Use a Phillips #00 screwdriver to remove the fifty 3 mm-long screws securing the frame bracket to the frame.

    • The third photo has the same screws marked by quadrant. Use this photo during reassembly to help account for all the screws:

    • Bottom-left = 9 screws

    • Bottom-right = 14 screws

    • Top-right = 12 screws

    • Top-left = 15 screws

  20. EoDnLuHTCo2gjkLv
    EoDnLuHTCo2gjkLv
    ElfpMDIFbWdkIrQZ
    Q4VJEjpZgwkdJHFb
    • Lift the frame bracket away from the frame, making sure to thread the display cable through its socket.

  21. AwgdXSRtOrbYnbmJ
    AwgdXSRtOrbYnbmJ
    BKf5SHUheTsBnKAZ
    • Use the flat end of a spudger to pry up and disconnect the battery's press connector secured to the motherboard.

  22. aLQdURSQSXAXxZ1H
    aLQdURSQSXAXxZ1H
    bmEFIQZgRF6kMWrg
    HZBXXwdPvwsEBSCW
    • Use the flat end of a spudger to pry up and disconnect the display cable's press connector secured to the motherboard.

    • Repeat for the fingerprint sensor cable attached to display cable.

  23. qwjcqT5OdlyVppJG
    qwjcqT5OdlyVppJG
    qEr3W4HeIubCk4yl
    • Use your fingers to remove the display cable.

  24. Zp62pyjOnZUHmhJp
    Zp62pyjOnZUHmhJp
    VkUDFGiabTKk1etl
    • Use the flat end of a spudger to pry up and disconnect the daughterboard interconnect cable's press connector secured to the motherboard.

  25. atJZrolNAQajGCSH
    atJZrolNAQajGCSH
    NhBytggfVmLUVClx
    • Use the flat end of a spudger to pry up and disconnect the keyboard dock port cable's press connector secured to the motherboard.

  26. PETCmGJyCdr2TaXL
    PETCmGJyCdr2TaXL
    F2JyYEZ6PFa2UkVM
    eVQYcOpOfcFiYU3x
    • Use the flat end of a spudger to pry up and disconnect the front camera's press connector secured to the motherboard.

    • Use tweezers, or your fingers, to remove the front camera.

  27. Yij3A1LHCd5oywaJ
    Yij3A1LHCd5oywaJ
    Vts1ROVM1jJdOWJA
    • Use the flat end of a spudger to pry up and disconnect the microSD card reader's press connector secured to the motherboard.

  28. aWfFUcMw1DEVvwsE
    aWfFUcMw1DEVvwsE
    ConG6EjZv1fgbp5L
    • Use the flat end of a spudger to pry up and disconnect the 5G antenna's press connector secured to the motherboard.

  29. 2iYTOi4ejsTVgcbi
    2iYTOi4ejsTVgcbi
    svrUSDMvltBQTAsB
    MpArhesZICHwSWRq
    • Use tweezers to pull the antenna out of the frame by its bracket.

    • Remove the 5G antenna.

  30. JBWcElHQBOAap6vm
    JBWcElHQBOAap6vm
    3sKhZkF4xRbfecSF
    TE2AL3ACnbHagPAG
    • Use the point of a spudger to carefully pry up and disconnect the green coaxial cable from the left side of the motherboard.

    • Repeat this process for the red coaxial cable.

  31. LjJp4VJy3PBLv1YH
    LjJp4VJy3PBLv1YH
    ullFKhLcLFDLNPji
    ifXKAdBuXTs2cPdY
    • Use the flat end of a spudger to pry up and disconnect the rear camera's two press connectors secured to the motherboard.

  32. UDUdjDMuqclbPSIK
    UDUdjDMuqclbPSIK
    RGGktbWQcqnPXGKq
    • Use the flat end of a spudger to pry up and disconnect the power button cable's press connector secured to the motherboard.

  33. nOTvyUxNDirsrNaC
    nOTvyUxNDirsrNaC
    UiKk4kPRfIMwZlqM
    • Use the point of a spudger to carefully pry up and disconnect the bottom-right loudspeaker's yellow coaxial cable from the motherboard.

    • Take care not to puncture or bend the battery with your tool—a punctured or bent battery may leak dangerous chemicals or cause a fire.

    • During reassembly, these can be tricky to reconnect. One at a time, hold each connector in place over its socket and press down with the flat end of a spudger. The connector should snap into place.

  34. pk6johjpPnrT5fnn
    pk6johjpPnrT5fnn
    FGnDrKmuGH6mc6wW
    • Pull the coaxial cable away from the frame, making sure the cable is completely unthreaded from the motherboard.

  35. olMOqoQRDkEYyYEi
    olMOqoQRDkEYyYEi
    QsEkpG2meKxTcW5n
    • Use the flat end of a spudger to pry up and disconnect the interconnect cable's press connector secured to the motherboard.

  36. BmLwAtKmZiH41eb4
    BmLwAtKmZiH41eb4
    yGXBPxUBSj4OAaaw
    dcB12XHtSYmP1GBF
    • Use the point of a spudger to carefully pry up and disconnect the top-right loudspeaker's blue coaxial cable from the motherboard.

    • Repeat this process for the white coaxial cable.

  37. UNIBybr2HgHOmm4f
    UNIBybr2HgHOmm4f
    P1tVUBKrfNyCBhJS
    • Use a Phillips #00 screwdriver to remove the three 2 mm screws securing the motherboard to the frame.

  38. 5yD5LvrEplnM55PG
    5yD5LvrEplnM55PG
    MGvcECArtUHinJtO
    4wiLBRcZRwxTnIXk
    • Insert a spudger into a gap between the motherboard and the frame.

    • Pry up with the spudger to release the motherboard from its clips.

    • Remove the motherboard.

    • During reassembly, refasten the motherboard screws first to properly align it into place, then reconnect the cables.

  39. EYyNTWGGiPFciDcP
    EYyNTWGGiPFciDcP
    RiYXEBCbCJXqilMq

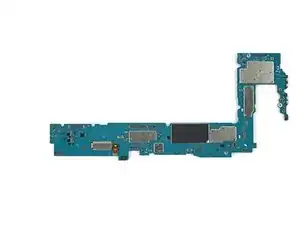

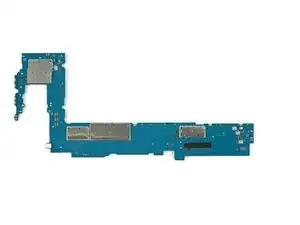

    • You're now left with the motherboard.
