Xbox 360 Red Ring of Death Fix Kit

Geschrieben von: Andrew Bookholt
  • Kommentare: 114
Xbox 360 Red Ring of Death Fix Kit

Schwierigkeitsgrad

Schwierig

Schritte

55

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

Verwende diesen Guide um iFixits Red Ring of Death Fix Kit zu installieren

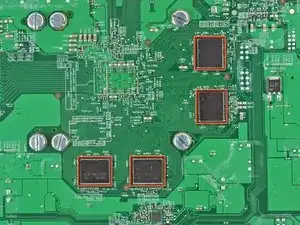

Reflowing Das Motherboard nach fertigstellung des Guides Step 48 (bevor du das RROD fix kit installierst). Beide sorgen für eine höhere Erfolgschance, den Red Ring of Death zu beheben und schützt vor zukünftigen Schäden.

  1. yMUJPMnCJJuiSO6X
    yMUJPMnCJJuiSO6X
    14IrWYZVEVr1aEfS

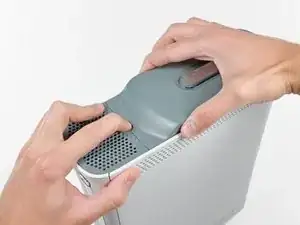

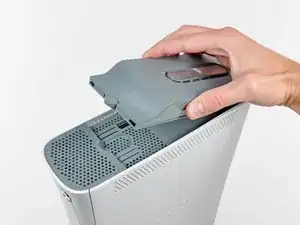

    • Greife die Festplatteneinheit mit einer Hand und drücke mit der anderen den kleinen Hebel, während du die Festplatteneinheit nach oben hebst.

    • Nimm die Festplatteneinheit von der Konsole.

    WARNING: Just replacing the drive will not make it work correctly. Microsoft has married the drives to the motherboard. Hence, in order to get full operation out of the drive you'll have to perform more steps not listed here. Search in the FAQ on this specific topic for more details. Otherwise, before buying a new drive, try cleaning the inside of the old one and/or replace the belt involved in opening and closing the drive door.

    - Good Luck

    Eric -

    Thanks..helped!

    joseph zulu -

    bress the button and lift with the same hand! i thought mine was stuck because of this pic!!!

    Maths with Luigi -

  2. J6CIpEaLOoYAQHxb

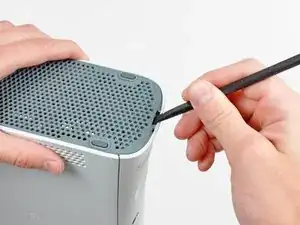

    • Stelle die Konsole auf den Kopf, sodass die Unterseite nach oben zeigt.

    • Während der folgenden Anweisungen kann auch ein Xbox 360 Opening Tool anstelle des Spudgers verwendet werden.

    • Führe das flache Ende eines Spudgers oder die Kante eines Xbox 360 opening tools in den kleinen Schlitz an der Seite des Front Pannels in der Unterseite.

    • Hebel die vordere Kante des Lüfters weg von der Frontplatte.

    You can avoid this step by pulling the front cover off. Just make sure you don't break the springs for the USB bay area.

    Repair Doctor -

    Hello, thank you ifix for this guide, I followed this guide, I got stuck at some point but I resolved it. Also I want to share this resource: Step by Step guide to fix Xbox 360 errors it helped me go through all the things associated with Xbox 360 and the troubleshooting of errors. Hope this can also help you all.

    Christopher Sage -

  3. ELe3ImNHnfjH5CMS
    ELe3ImNHnfjH5CMS
    XlYWdcnwtOrB1W3S
    NJBPRBLSExTr3Den

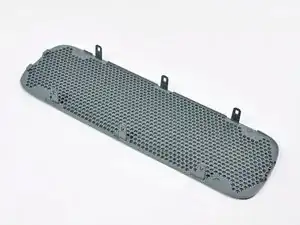

    • In den nächsten Schritten, nutze die Spitze eines Spudgers oder den Stift eines Xbox 360 opening tools um die Klammern entlang der Abdeckung zu lösen. Ihre Positionen sind rot markiert.

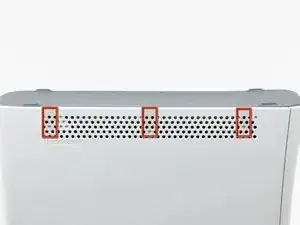

    • Führe das Werkzeug in die Löcher der weißen Plastik-Seitenabdeckung ein.

  4. MacUdYZ1EwkBWQmW
    MacUdYZ1EwkBWQmW
    kL3iWK2V1YIMoyBX

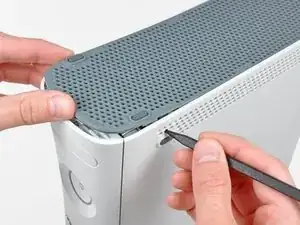

    • Um die Klammern zu lösen, arbeite dich von der Vorder- zur Hinterseite der Lüftereinheit entlang.

    • Während du die Bodenabdeckung leicht anhebst, nutze die Spitze eines Spudgers um die Klammern zu lösen.

  5. vPypAIcA45sMw4Y4
    vPypAIcA45sMw4Y4
    o6vXGPFRiS5OhrXC

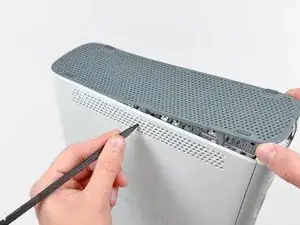

    • Wiederhole den selben Schritt mit den mittleren Klammern.

  6. HS2EJegmA2DGOAE1
    HS2EJegmA2DGOAE1
    3VgWioIEgIExHeDa

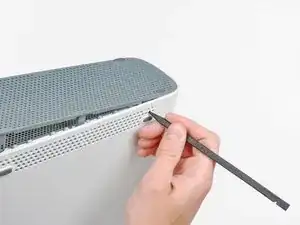

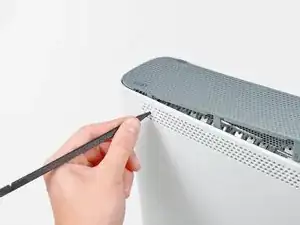

    • Nun fehlen nur noch die hinteren zwei Klammern um den Lüfter herauszunehmen.

  7. IIcCSDqQGMSuBFJW

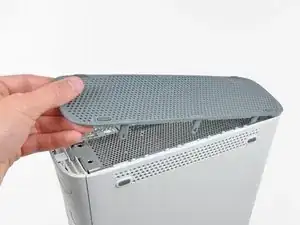

    • Hebe den Lüfter aus dem Gehäuse.

  8. K34QYfxVrrftatym
    K34QYfxVrrftatym
    ytuwV2efqMfxRndW

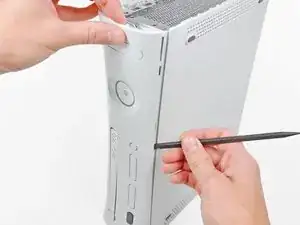

    • Führe die flache Seite eines Spudgers zwischen der Frontabdeckung und der Außenhülle, nahe des An/Aus-Schalters, ein.

    • Führe den Spudger entlang der Kante der Frontabdeckung um die Klammern zu lösen, die sie an der Konsole halten.

    • Dieser Schritt ist auch mit einem Xbox 360 Opening Tool möglich, zerkratzt allerdings evtl. die Plastikabdeckung.

    • Alternativ kannst du auch deine Hände verwenden.

    The faceplate just pulls off, using a tool is completely unneccessary. https://beta.support.xbox.com/help/xbox-...

    Erik Tomlinson -

  9. xM4CxhxJnIT4eHCA

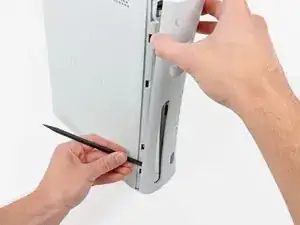

    • Wiederhole den selben Ablauf an der anderen Seite der Frontabdeckung.

  10. uqjqI2HkmxeYCGNH

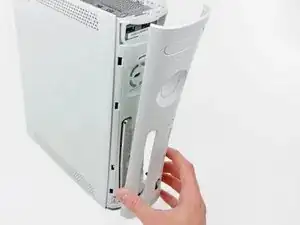

    • Entferne die Frontabdeckung.

  11. HMMFtOmkPd6YTvo4
    HMMFtOmkPd6YTvo4
    CM3dOusgANm2syl1

    • Stelle die Konsole aufrecht hin mit der Oberseite nach oben.

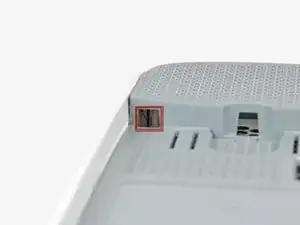

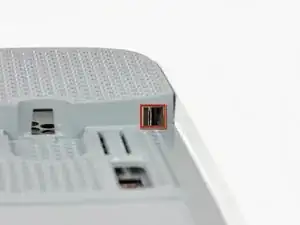

    • Die obere Lüftereinheit wird mit Klammern in der Konsole gehalten. Die ersten zwei sind hier rot markiert.

  12. hLQONPwYWw5wwuku
    hLQONPwYWw5wwuku
    vG3S2NKpGQNSJi2m

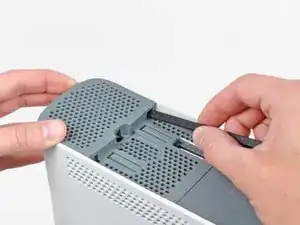

    • Führe das flache Ende eines Spudgers in die kleine, bereits erwähnte, Öffnung ein um die Klammern zu lösen.

    • Dieser Schritt lässt sich auch mit dem Stift eines Xbox 360 Opening tools durchführen.

    I found it easier to open these clips using the pointy end of the spudger rather than the flat end. Just slide it in against the side of the case and the clip will pop off.

    dave -

  13. Jcd3cuuefWPTrKGO
    Jcd3cuuefWPTrKGO
    ESFwEvEAkCyE1Y51
    GHihpIrQVQUlSBCN

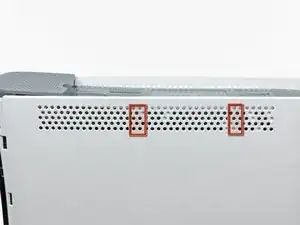

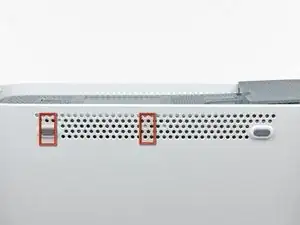

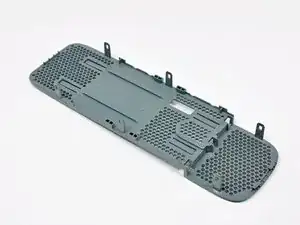

    • In den nächsten Schritten, verwende die Spitze eines Spudgers oder den Stift eines Xbox 360 opening tools, um die Klammern an der Oberseite der Seitenabdeckungen zu lösen.

  14. cLODuehWcnPCYpHx
    cLODuehWcnPCYpHx
    ZNDntxLmkPnmgeDd

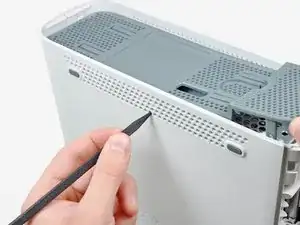

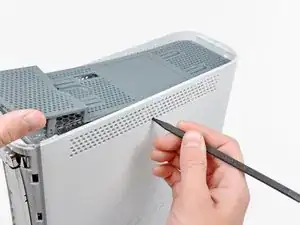

    • Um die Klammern zu lösen, beginne in der Mitte der oberen Lüftereinheit.

    • Während du leicht die Kante der Lüftereinheit anhebst, nutze die Spitze eines Spudgers um die Klammern in der oberen Mitte der Seitenabdeckung hineinzudrücken um sie zu lösen.

  15. 3NS6J5nJKAOQxDdZ

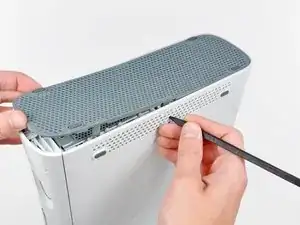

    • Nutze die Spitze eines Spudgers um die Klammern an der hinteren Seite der oberen Lüftereinheit zu lösen.

  16. satartHPCh3cCoKK
    satartHPCh3cCoKK
    pfYZbHEZFGAGpkAw

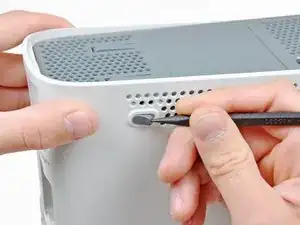

    • Die letzte Klammer ist unter dem Gummifuß am hinteren Teil der Konsole versteckt.

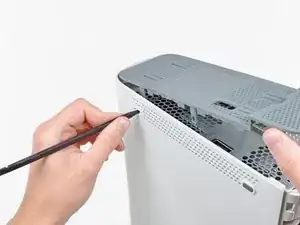

    • Nutze die Spitze deines Spudgers um die Klammer an der hinteren Seite der oberen Lüftereinheit zu lösen.

    • Entferne die obere Lüftereinheit.

  17. IyFVa2YVF16dYNPr

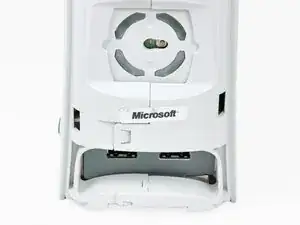

    • Um fortzufahren, musst du den Garantiesticker von der Konsole abziehen. Dadurch erlischt die Garantie der Konsole. Fortfahren auf eigene Gefahr.

    • Siehe vorsichtig den Sticker von der Konsole ab.

    There is an alternate to breaking the seal. If you open the back first starting with the opposite side of the sticker you can get the rear to "Clam Open" retaining the seal.

    Eric -

    LOL “Romove the warenty seal”

    Alexander Wiand -

  18. bfLLW2eb1mul2OvC
    bfLLW2eb1mul2OvC
    nGyMgcPrm6q5alKf
    PatF4YGqcIFHXTGM

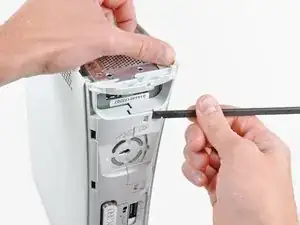

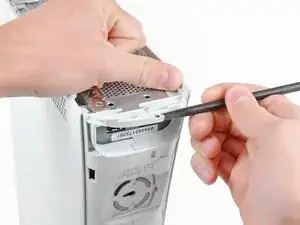

    • Die obere und untere Abdeckung der Konsole sind mit mehreren Verriegelungen befestigt. Diese Verriegelungen müssen gelöst werden um die obere und untere Abdeckung von der Konsole zu nehmen.

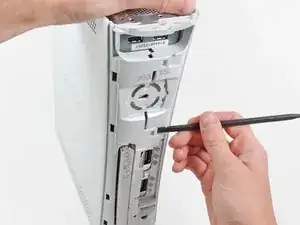

    • Nutze das flache Ende eines Spudgers um die folgenden Verriegelungen zu lösen:

    • Über dem Front-USB Port

    • Unter dem Front-USB Port

    • Über den Speicherkarten-Schlitzen.

  19. 3xXd6DhVwt4ibPIW

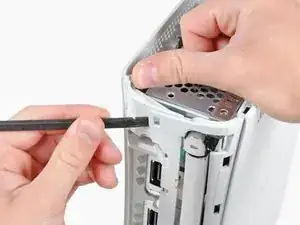

    • Führe das flache Ende eines Spudgers in der Verriegelung über der Eject-Taste ein und hebel nach oben um die letzte Verriegelung zu lösen.

  20. G54PXDV62XGnhhuV

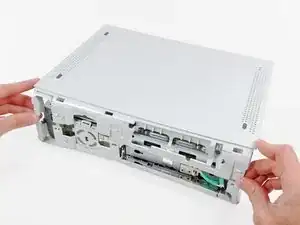

    • Hebe vorsichtig die vordere Kante der Seitenabdeckung an, um sicherzustellen, dass die Verriegelungen an der Vorderseite komplett gelöst sind.

  21. xCaY2FIFFFI4Isfv
    xCaY2FIFFFI4Isfv
    RSrCtVYWkTQCbQaq

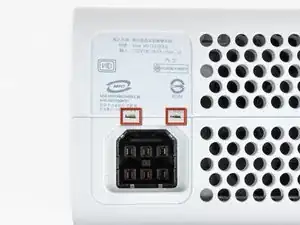

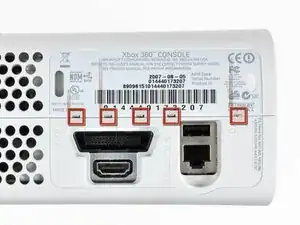

    • Die obere und untere Seite der Hülle werden zusammengehalten von 7 weiteren Verriegelungen auf der Rückseite der Konsole. Ihre Positionen sind rot markiert.

  22. Yujni1lYPGpADBlS
    Yujni1lYPGpADBlS
    kOdJT5HjlrWoW44h
    FaKq6NRVtQOZjelM

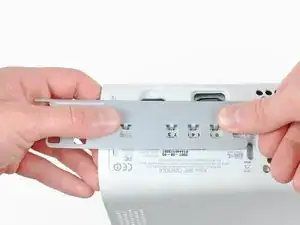

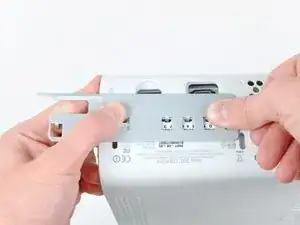

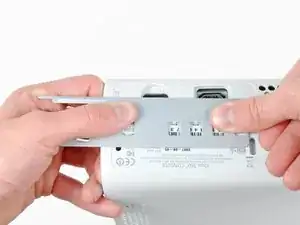

    • Drücke das Xbox 360 Opening Tool in die Schlitze für die Klammern, die Ober- und Unterseite verbinden in der Nähe der I/O Ports.

    • Während du das Opening Tool in die Xbox drückst, drücke die obere und untere Hülle auseinander um die Klammern zu lösen.

    I didn't have an XBox tool, so I followed instructions in this video for this step (https://www.youtube.com/watch?v=qaxIB6cX...) to pry it open with your fingers and a screwdriver.

    Nick Karnik -

    The small (metal) women's hair clip is best for un-latching the tabs. The screw drivers just make the holes bigger.

    Denny Ross -

    You can also use the pointed end of a plastic spudger to push each clip free while you separate the case with your free hand.

    Michael Carson -

  23. IAAAOka4GMbPLtIU
    IAAAOka4GMbPLtIU
    r1n4vHDX1G6iMJg5

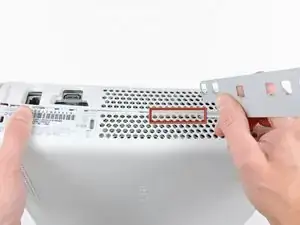

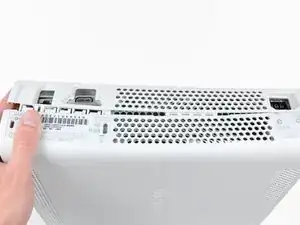

    • Während du die obere und untere Hülle auseinander drückst, nutze die Spitze eines Spudgers oder den Stift eines Xbox 360 Opening Tools um die lange Klammer (rot markiert) in das Gehäuse zu drücken.

    • Die Klammer löst sich und hinterlässt die Klammern in der Nähe des Stromanschlusses als einzige Klammern zurück, die die Gehäuseteile verbinden.

  24. ONLOcaEGdYN5F5XJ

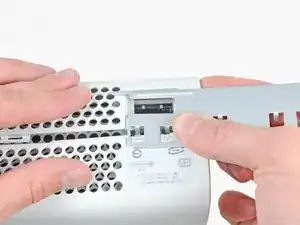

    • Drück das Xbox 360 Opening Tool unten in die zwei verbleibenden Schlitze um die Klammern in der Nähe der Stromverbindung zu trennen.

    • Drücke die beiden Gehäuseteile auseinander um sie komplett voneinander zu trennen.

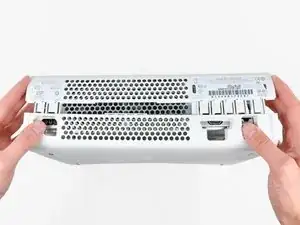

  25. jrKfppdCFKeYeJTs

    • Positioniere die Konsole so, dass die Frontseite nach unten zeigt.

    • Greife den hinteren Teil der Rückseite und hebe ihn an um ihn von der Konsole zu trennen.

    • Sei vorsichtig, die untere Gehäuseabdeckung nicht zu weit zu biegen. Sie kann leicht brechen.

  26. vKpq2mTLPKe6FEdf
    vKpq2mTLPKe6FEdf
    hPMYNsCmxTPh1auj

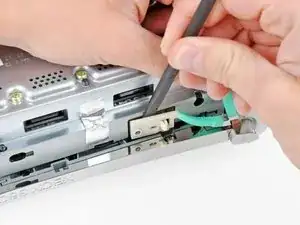

    • Verwende die Spitze eines Spudgers um die Klemme, die den Auswurfknopf festhält, aus dem Metallgehäuse zu lösen.

    • Führe die Flache Seite des Spudgers zwischen die Auswurftaste und das optische Laufwerk ein.

    • Hebel die Auswurftaste aus ihren letzten Verankerungen und nimm sie heraus.

    • Alle Schritte lassen sich auch mit einem Xbox 360 Opening Tool anstelle des Spudgers durchführen.

  27. xWrVtTRiATabXKR5

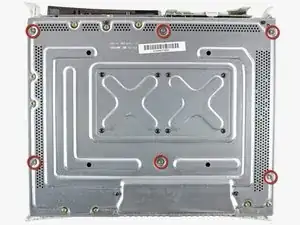

    • Drehe die 6 silbernen 64 mm T10 Torx Schrauben heraus, die die obere Abdeckung am Metallgehäuse halten.

  28. xK4P5MWDdRargYm4

    • Drehe die Konsole so, dass die obere Abdeckung nach oben zeigt.

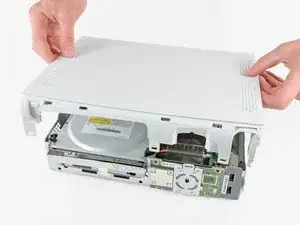

    • Hebe die obere Abdeckung nach oben um sie von der Konsole zu trennen.

  29. MZPUUJVPxxANUeoT

    • Zieh die silbrige Klebefolie ab, die das optische Laufwerk am Gehäuse festhält.

    Does anyone know if the Silver Tape is Lead Tape?

    Sean -

  30. ZtSZCTiWnI1mFySC

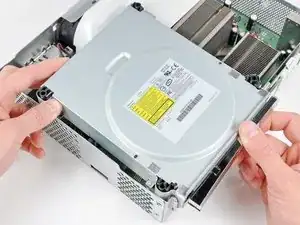

    • Hebe das optische Laufwerk leicht nach oben um an das SATA Kabel und das Stromkabel des Laufwerks heranzukommen. Die Kabel befinden sich auf der Rückseite des optischen Laufwerks.

    • Versuche nicht, das Laufwerk jetzt schon herauszunehmen. Es ist noch durch zwei weiter Kabel mit dem Motherboard verbunden.

  31. aP5BgixloKHsaQOB
    aP5BgixloKHsaQOB
    bFYsJNjL6UUJtumE

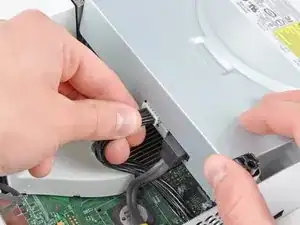

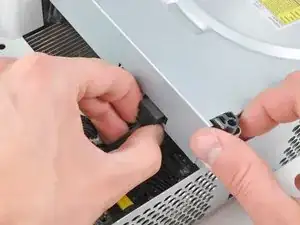

    • Greife das Stromkabel kurz hinter seinem Stecker und zieh es gerade aus dem optischen Laufwerk heraus.

    • Greife das SATA-Kabel am Stecker und ziehe es gerade aus dem optischen Laufwerk heraus.

    I found the power cable to be very tough to get out, at least it is the first time doing this.

    Nick Flacco -

  32. NlR5YgLZKUOY6y2G

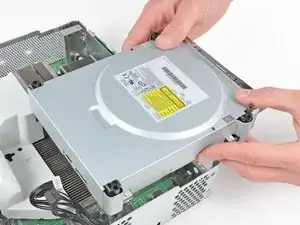

    • Hebe das optische Laufwerk aus dem Metallgehäuse heraus.

    Be careful not to lose or break the two teeny metal clips securing the optical drive assembly snugly to the metal casing on either side of the drive's front face. I used a spudger to press in the topmost tines on these clips because they were catching on the drive and bending up. The clips should stay on the metal housing, not come off with the drive.

    Vaughn Baker -

  33. FbTDBr5ICtBm1Hnb
    FbTDBr5ICtBm1Hnb
    KGtmstsOkUgtlFVM

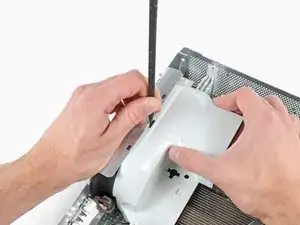

    • Führe das flache Ende eines Spudgers in die kleine rechteckige Öffnung an der Oberseite des Lüfterkanals.

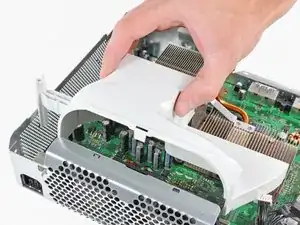

    • Löse vorsichtig die Klammer des Lüfterkanals und nimm den Lüfterkanal aus der Xbox.

    • Die Klammer kann alternativ auch mit dem Stift eines Xbox 360 Opening Tools geöffnet werden.

  34. lgWG2cHPjbDgEgAb
    lgWG2cHPjbDgEgAb
    ypaTyJutIXsFFfeL

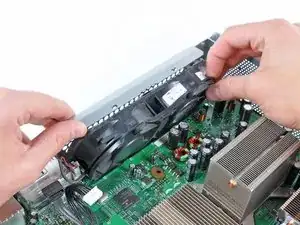

    • Hebe die Rahmenleiste über den Doppelventilatoren an und ziehe die Doppelventilatoren in Richtung des Motherboards.

    • Nimm die Doppelventilatoren noch nicht komplett aus dem Gehäuse, sie sind noch durch Kabel mit dem Motherboard verbunden.

    Cleaning out the fan now, will help problems in the future.

    Joe Begley -

    Super easy as long as you have that tool and follow the directions. Having never opened the xbox before I was able to do this in 15 min. And im sure now that I know how to do it, next time will be even quicker.

    Thanks for the great instructions!

    Lasher M -

    Do Step 35 first (remove the fan connector from the motherboard), otherwise as you pull the fans forward out of the metal bracket you risk stressing the connector's attachment to the motherboard (because the fans will press against the connector as you pull them forward).

    Vaughn Baker -

    There are small black feet on the bottom of the fan assembly, You can push up from the bottom of the case if needed.

    Gary Gallant -

  35. G6NIJ4hBE6MvQIsA

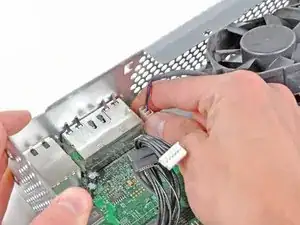

    • Ziehe das Kabel der Doppelventilatoren vom Mainboard ab.

    • Einige Ventilatorenkabel haben eine Verriegelungslasche, stelle sicher, dass du diese reindrückst, während du das Kabel abziehst.

    • Entferne die Doppelventilatoren aus dem Gehäuse.

  36. dWt1tegCBKUiIdKV
    dWt1tegCBKUiIdKV
    2AHDxmfnKnWSgDUE
    3IeYMLga1WChZUVP

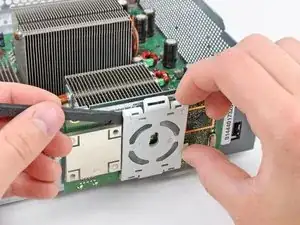

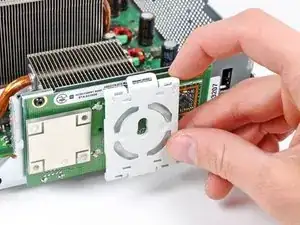

    • Verwende die flache Seite eines Spudgers um die Klammern, an der oberen und linken Seite des RF Modulschilds zu lösen.

    • Vielleicht geht es einfacher, die Klammern mit einem Fingernagel zu lösen.

    • Entferne das RF Modulschild von der Konsole.

  37. UrbhkaS1VHTDaQDm

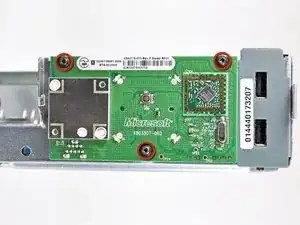

    • Drehe die drei 5,6mm T8 Torx-Schrauben heraus, die das RF Modul am Metallgehäuse befestigen.

    for whatever reason the T8 screws holding the RF receiver on my unit were torqued on pretty hard. almost impossible to get off. IS taking the RF off really necessary?

    matt337 -

  38. slFxInXBlk6up4RI
    slFxInXBlk6up4RI
    YmFTx6tt3IGitaNV

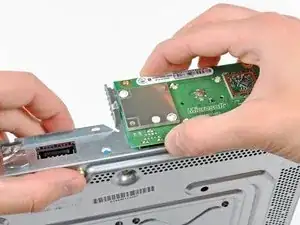

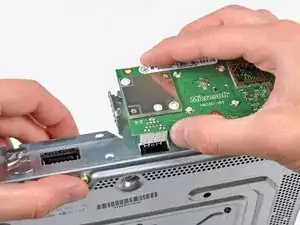

    • Greife das RF Modul und zieh es vorsichtig hoch um es aus seinem Sockel im Motherboard zu nehmen.

    • Nimm das RF Modul aus der Konsole.

  39. PYK1RfYL3qeZk1VW

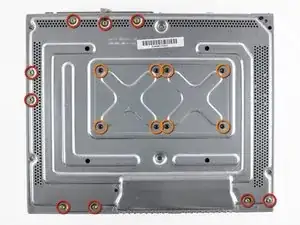

    • Entferne folgende Schrauben, die das Motherboard am Metallgehäuse befestigen:

    • Neun goldene 11mm T10 Torx-Schrauben.

    • Acht schwarze 5,6mm T8 Torx-Schrauben.

    • Wenn du deine Xbox 360 wieder zusammenbaust, nachdem du das Red Ring of Death Fix Kit eingebaut hast, werden die acht T8 Torx-Schrauben (hier orange eingekreist) nicht wieder verwendet.

    kinda hard for a KID to do this huh also I am a 9 year old you get it

    Andy Ewing -

    well, it almost as if this is labeled as Difficult in the beginning!

    Francisco Ontiveros-Nuñez -

    The T8’s were T9’s on mine. This guide could be wrong, or my toolkit was mislabeled. If you can’t get the T8’s out, try a T9 before stripping the screws!

    Braden Estenson -

    They were T8’s for me

    Ryan Lee -

  40. 2ZJNWwkmk62rFwXw
    2ZJNWwkmk62rFwXw
    QkWCORJTETni2VmH

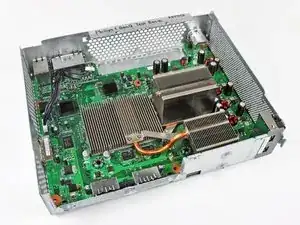

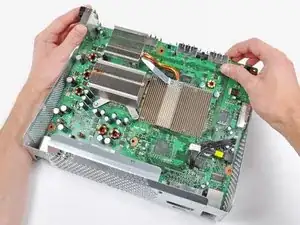

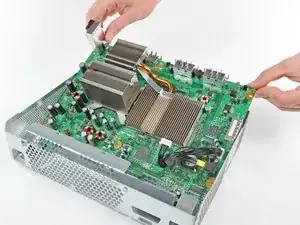

    • Drehe deine Xbox um, aber sei vorsichtig, dass das Motherboard nicht aus dem Gehäuse fällt.

    • Hebe das Motherboard an der vorderen Kante an.

    • Sei vorsichtig, dass du keinen der Stecker beschädigst, während du das Motherboard aus dem Metallgehäuse hebst.

    • Entferne das Motherboard aus dem Metallgehäuse.

  41. SRplgWZDQ51qRj2U

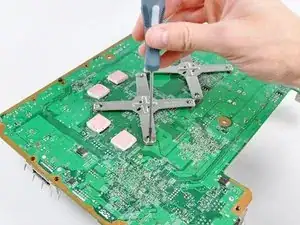

    • Führe die Spitze eines kleinen Flachkopfschraubenziehers an den Enden der X-förmigen Klammer zwischen der Klemme und der Befestigung ein.

    • Hebel die X-förmingen Klammern aus den Befestigungen, bis die Kante mit der Rille über die übrigen Befestigungen gehoben ist.

    Place a piece of cardboard on the motherboard to protect it from scratches in case the screwdriver slips.

    Aaron -

    The instructions on how to remove the x clamps are insufficient. I had a great deal of trouble with them. The small flathead screwdriver included with the kit is too small and weak to do the job. I ended up Googling other how-to's. I used a larger screwdriver and FINALLY popped them off, however as careful as I tried to be in the process I accidentally damaged a few traces around the screw hole. Repair was a failure, still have 3 red lights. Waste of time and money.

    sbrasfield1 -

    Why the heck would you suggest using a screwdriver to release the x-clamps from the motherboard, knowing that the screwdriver could slip and damage some of the traces on the motherboard!? Didn't see the comment about placing a piece of cardboard on the motherboard to prevent scratching until I had already screwed up my Xbox. How hard would it be for iFixit to develop a tool to easily remove the x-clamps like they did to open the Xbox? I wanted to do this to prevent any possibility of overheating, and went from a working Xbox to a dead one because of this bad step. Definitely took my view of iFixit down a notch, will be much more hesitant to recommend their tools and guides after this. Would like a refund but I know that's not going to happen. Super ticked!

    fdwboy -

    Same thing just happened to me, the tiny screw driver they say to use has next to 0 leverage to get it off. Now my repair kit is useless cause I physically removed some of the bits because my screwdriver slipped.

    Forren -

    I found that inserting a sprudger between the X clamp and retaining post and turning while lifting worked well without damaging the board

    Patrick Kremer -

    The tool provided in the kit is completely incapable of performing this step (prying the X off the post).

    Ben Mulligan -

    I had no problems using the tools provided in the RROD kit. Patience is key, also pay close attention to the pictures referenced in the guide, they are incredibly helpful.

    Adam Hall -

    I originally had a lot of issues prying them up; I was really worried about accidentally scratching the board. The instructions don’t seem fully adequate. Instead, first pry all four corners as high up as possible, pointing the screwdriver towards the center of the X clamp. If you pry them practically horizontally, then it makes the whole process a lot easier. Then work individually, pushing each corner slowly outwards and upwards, putting the screwdriver in from above (not the side as step 42 shows, too dangerous) into the small space between the screw and the X. Be careful at this point, just in case. Also, DON’T use the small flat head screwdriver provided; it’s too tiny to get proper leverage. I used 1/8 in. See this tutorial: https://www.youtube.com/watch?v=pHzEV3c_...

    Sophia Vera -

    Maybe the tiny flathead in the kit I got is newer than the old ones…

    DO NOT stick the screwdriver vertical as shown in step 41!

    Instead use it like step 42. Insert it only that way, between each front of the X clip arm and the post, and turn it so the screwdriver turn pushes the bottom of the X clip off the post.

    No risk of damaging the board this way.

    Christopher Evert -

    Instructions were very unclear, but comments helped. Both used cardboard and the tutorial found here https://www.youtube.com/watch?v=pHzEV3c_... as mentioned by Sophia Vera. Took my time, and mostly used a longer screwdriver like in step 42. Once the first 3 clips come off, the fourth one essentially falls off, so be ready to catch your heat block when you pop the third one.

    KYLE MANN -

  42. gOORwSsCQwKDF3gA
    gOORwSsCQwKDF3gA
    ZEHpIpLJCZSuiBNV

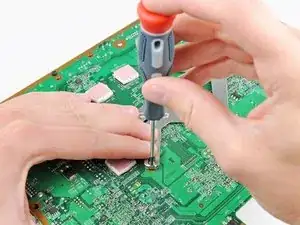

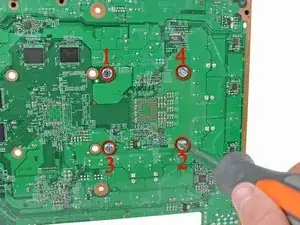

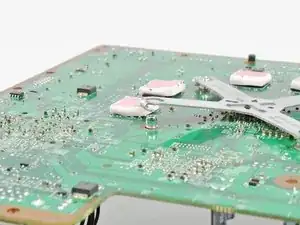

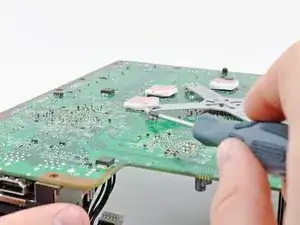

    • Führe den Flachkopfschraubenzieher parallel zum Motherboard zwischen die X-förmige Klammer und die Befestigungen.

    • Dreh den Schraubenzieher um die X-förmigen Klammern von der Befestigung zu trennen.

    • Wiederhole diesen Prozess bei allen 4 Ecken der X-förmigen Klammer.

    • Wenn du die letzte Ecke der Klammer löst, halte den GPU Kühlkörper fest, damit er nicht herunterfällt.

  43. qUDamKNxa21OFASG

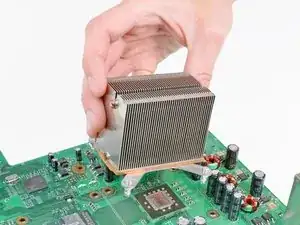

    • Um die X-förmigen Klammern wieder einzusetzen, beginne mit den zwei Ecken an den Befestigungen des Kühlkörpers.

    • Während du den dritten Arm der X-förmigen Klammer runterdrückst, nutze einen kleinen Flachkopfschraubenzieher um die Klammer von der Kühlkörper-Befestigung wegzuhebeln.

    • Während du hebelst, drücke den Arm der X-förrmigen Klammer runter, bis es in der Rille der Befestigung des Kühlkörpers einrastet.

    • Wiederhole diesen Vorgang beim vierten Arm der X-förmigen Klammer.

    Is the x-clamp supposed to be reinstalled? It's not pictured in any part of the instructions after this point, so I did not reinstall it, and putting the xbox back together now is different than taking it apart.

    amplifiedgir -

    The X-clamps are not reused. Since you install machine screws in place of the X-clamp mounting posts, you do not reinstall the eight screws highlighted in orange on step 41.

    Andrew Bookholt -

  44. BD1X4kXXJmALiSsv

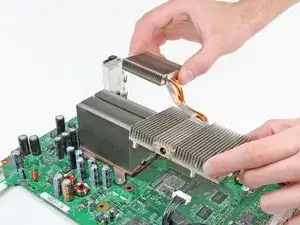

    • entferne den GPU Kühlkörper.

    • Bevor du den GPU Kühlkörper wieder einsetzt, trage eine neue Schicht Wärmeleitplaste auf.

    • Dieser Guide zeigt dir, wie die Wärmeleitpaste auf dem Kühlkörper aufgetragen wird.

  45. BRaIPGTiYbCUVsoo
    BRaIPGTiYbCUVsoo
    QoIDm3J2Yf45FPZo

    • Führe die Spitze eines Flachkopfschraubenziehers zwischen den Ecken der X-förmigen Klammer und den Befestigungen des Kühlkörpers ein.

    • Hebel die X-förmige Klammer weg von der Befestigung, bis sie über die Rille in der Befestigung gehoben ist.

    • Wenn notwendig, führe deinen Schraubenzieher parallel zum Motherboard zwischen die X-förmige Klammer und die Befestigung ein. Drehe den Schraubenzieher um die Klammer herauszuhebeln.

    • Wiederhole diesen Vorgang für alle vier Ecken der Klammer.

    • Wenn du die letzte Ecke der Klamme entfernst, halte den CPU Kühlkörper fest, damit er nicht runterfällt.

    • Entferne den CPU Kühlkörper vom Motherboard.

  46. MhahQa1sWuwKpwFE
    MhahQa1sWuwKpwFE
    kepjqctiiSfEKLnX

    • Die X-förmigen Klammern werden nach dem Einbauen des Red Ring of Death Fix Kits nicht wiederverwendet.

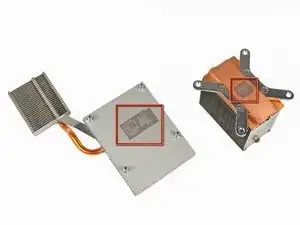

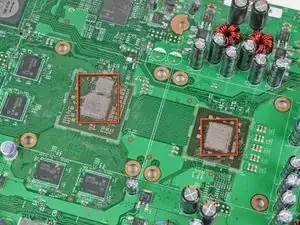

    • Jetzt, wo die Kühlkörper von beiden Prozessoren abgelöst sind, verwende einen Spudger aus Plastik um die Reste der alten Wärmeleitpaste von den Porzessoren und Kühlkörpern abzulösen.

    • Arbeite langsam und vorsichtig, während du die alten Rückstände entfernst, da sich viele sensible Komponenten in der Nähe der Prozessoren befinden. Werden diese beschädigt, benötigst du vielleicht ein komplett neues Motherboard.

    • Am besten verwendest du ein Lösungsmittel wie ArctiClean um alle Rückstände abzulösen bevor du neue Wärmeleitpaste aufträgst. Alternativ kannst du ein sanfteres Lösungsmittel wie z.B. Reinigungsalkohol verwenden.

    • Die meisten klassischen Trockendesoxidationssprays eignen sich ebenfalls: Sprüh etwas auf die Paste, dann reib sie weg.; Du wirst die Paste fast ohne Aufwand und ohne Rückstände entfernen.

    • Jetzt ist ebenfalls ein guter Zeitpunkt, um die Lamellen der beiden Kühlkörper von Staub zu befreien.

    Do yourself a favor and buy some ArctiClean... I used Isopropyl Alcohol and Q-Tips and ended up spending 45 mins scrubbing the surfaces. I imagine with the Arcticlean it would've taken mere minutes.

    Vaughn Baker -

    WD-40 is another option, Be sure to apply minimal amounts carefully using q-tips to gently rub away the thermal paste. Use isopropyl to clean up afterwards.

    PATRICK BRUNER -

  47. 4PiZY1NMGktcjaRb
    4PiZY1NMGktcjaRb
    cyCUUxcPjx16ihFZ

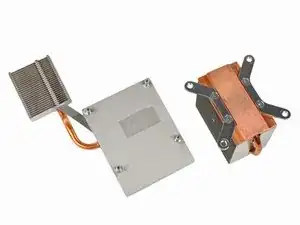

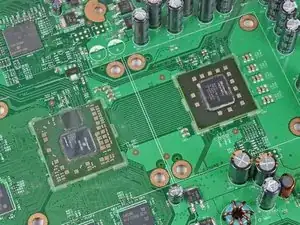

    • Nachdem die Kontakte gesäubert wurden, sollten sie aussehen wie auf den Bildern.

    • Bevor du fortfährst: jetzt ist ein guter Zeitpunkt, zum Reflow-Löten auf dem Motherboard. Reflowen bietet eine höhere Chance, zukünftige Red Ring Fehler zu verhindern oder zu beheben und ist nicht schwer durchzuführen. Alles, was du dafür brauchst ist ein Heißluftgebläse. Dieser Guide erklärt dir, wie es geht.

  48. QUBftrgteVKGuMIJ

    • Dreh das Motherboard um.

    • Wenn dein Motherboard keine RAM Chips an der Unterseite hat, überspringe den nächsten Schritt.

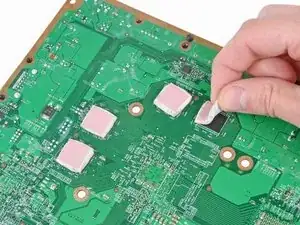

    • Löse die die Silikon-Wärmeleitpads von den RAM Chips an der Unterseite des Boards.

  49. HYyGYJdxAmHZEA6F

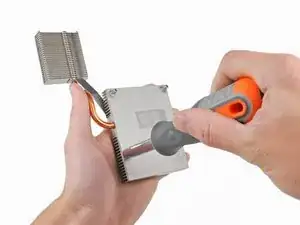

    • Nutze den 1/4'' Steckschlüsselaufsatz des beiliegenden Schraubenziehers ohne ein Bit um die vier Befestigungen der X-förmigen Klammern vom CPU und GPU rauszuschrauben.

  50. CHQlCFJjSq6lTwoj

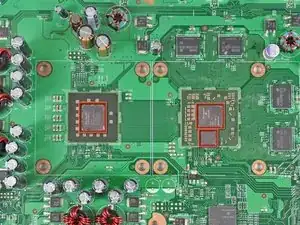

    • Trage eine dünne Schicht Wärmeleitpaste an den rot markierten Stellen auf.

    • Wenn du noch nie Wärmeleitpaste aufgetragen hast, erklärt dir dieser Guide wie es geht.

    • Nachdem du die Wärmeleitpaste auf den Prozessoren aufgetragen hast, setze beide Kühlkörper nacheinander wieder auf. In unserem Fall haben wir mit dem CPU Kühlkörper begonnen.

  51. EyFI4HmiTR3p1bQj
    EyFI4HmiTR3p1bQj
    YsZ4pSYor24CWqOi
    Ur5hVkL6FMvvsj6v

    • Diese Schritte werden mit dem Mainboard außerhalb vom Gehäuse durchgeführt.

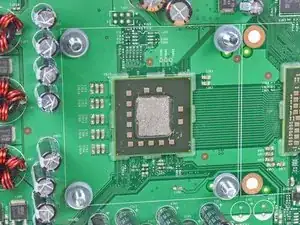

    • Führe eine Maschinenschraube durch jedes der vier Löcher um den CPU Kühlkörper mit den Schraubköpfen an der Rückseite des Boards.

    • Während du die Schraubköpfe hälst, stecke erst eine Nylon-Unterlegscheibe und dann eine Metall-Unterlegscheibe auf die Schraube.

    • Die Reihenfolge der Unterlegscheiben ist wichtig! stecke nicht zuerst die Metall-Unterlegscheibe auf!

    • Beim Einbau des CPU Kühlkörpers, achte darauf, dass die Lamellen in Richtung des Luftstroms verlaufen (wie im dritten Bild). Falsches Einbauen führt zur Überhitzung der Konsole.

    • Verwende das große Flachkopfschraubenzieher-Bit um die Schrauben am CPU Kühlkörper festzuschrauben. Schraube erst leicht zwei diagonal liegende Schrauben hinein, wie im Bild gezeigt. Danach schraube die anderen beiden Schrauben hinein und ziehe alle fest.

    • Hab keine Angst davor, die Schrauben zu fest zu schrauben. Sie müssen sehr fest sitzen, um die Kühlkörper und Prozessoren wieder fest an das Board zu pressen.

    • Wiederhole den selben Ablauf für den GPU Kühlkörper.

    what size screws and washers are those?

    Matt -

    M5 x 10 I beleive

    Marc -

    We only had a hardcopy printout of this guide when we tried this fix, but we were still confused by the relative order of the placement of the washers. If we had read the nylon washers makes contact with the motherboard and the metal washers make contact with the heatsink, we would likely get more clarity with the washer placement.

    lkvee -

    Maybe consider including a couple of extra washers in the kit. The vast majority of my repair time has been spent looking for the nylon washer that dispersed onto the kitchen tile floor.

    Christopher Garner -

    There is exactly one valid orientation for the CPU heatsink - the heat pipe must be on the side with the capacitors, not the side where the GPU is, otherwise it’d block the GPU heatsink from fitting back. I had to take the CPU heatsink off and re-do it after doing it the wrong way the first time.

    ajanata -

    is one single nylon washer important? because I bumped into the table and it fell out and got lost :/

    Francisco Ontiveros-Nuñez -

    This part was a little tricky fitting the screws under the tray through the heat sinks

    Ishmael Willis -

  52. p56nKyGvUKShwNST
    p56nKyGvUKShwNST
    5gONgEsmmMAlZRjF

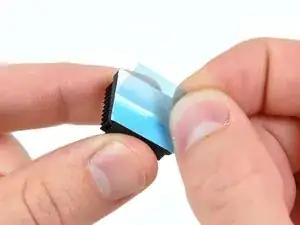

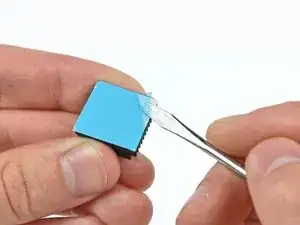

    • Verwende die Kante deines kleinen Flachkopfschraubenziehers oder einen anderen dünnen, scharfen Gegenstand um vorsichtig die Ecke einer blauen oderweißen Plastikfolie, die den Kleber an der Unterseite der beiden Kühlkörper schützt.

    • Sei vorsichtig, bei diesem Schritt nicht den Kleber abzulösen oder zu beschädigen.

    • Löse die Schutzfolien von der Klebeseite beider Kühlkörper ab.

  53. 6yPUhxy2AkNGYF5w
    6yPUhxy2AkNGYF5w
    F4MNEWGN6whEQXQG

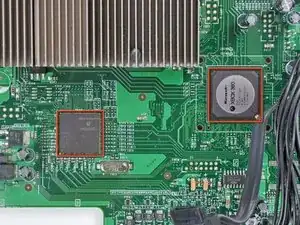

    • Säubere vorsichtig die zwei (im erste Bild rot markierten) Chips

    • Sei vorsichtig, dass du die Kühlkörper korrekt positionierst, bevor du sie festklebst, da der Kleber sehr stark ist und es schwer wird, sie umzusetzen.

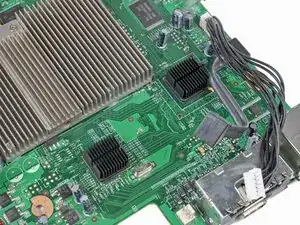

    • Klebe die zwei Kühlkörper oben auf die zwei (im ersten BIld rot markierten) Chips. Hier ist es wieder sehr wichtig, sie mit den Lamellen in Richtung des Luftstroms (wie in Bild 2 gezeigt) zu positionieren.

    • Beim Wiedereinbau des optischen Laufwerks, achte darauf, das Strom- und SATA-Kabel nicht mit den Kühlkörpern in Kontakt kommen.

    They provide you with different heat sinks in the kit. Correct me if i am wrong but it looks like it is not nessary to make sure your are placing the heat sinks correctly, since all sides look the same.

    Joey J -

    I did the fix and now it does nothing I can't figure out why

    Andrew woods -

  54. DK2FDOR2uYYafK4F
    DK2FDOR2uYYafK4F
    bcMJFRUPJ1IYlNZn

    • Wenn das Motherboard keine RAM Chips an der Unterseite hat, ist es nicht notwendig. Wärmepads anzubringen.

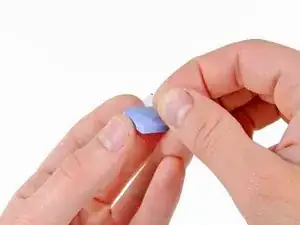

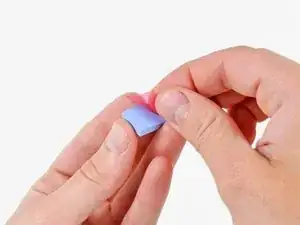

    • Löse vorsichtig die Schutzfolie von den Wärmepads ab.

  55. bXQbTKTEZWw4Ji3M
    bXQbTKTEZWw4Ji3M
    WHG5MVHuOFHYCVi5
    5asNXlV3uriBgaPW

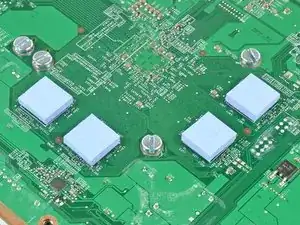

    • Klebe die Wärmepads auf die RAM Chips an der Unterseite des Boards.

    • Die Wärmepads in deinem Kit haben eventuell etwas andere Farben als die auf dem Bild.

    • Setze das Mainboard zurück in das Gehäuse und baue deine Xbox 360 wieder zusammen.

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.

Tinte & Feder

Andrew Bookholt

578335 Reputation

67 Kommentare

I didn't have a heat gun so I disabled the fan and left the 360 on for 1/2 hour to heat up the weak solder points and then let it cool down for 1/2 hour before re-assembling the 360. This gave me all green lights.

ChasCam580 -

Unfortunately this repair only lasted a few months on my xbox, going to try it again and hope for better results.

zima539 -

When you take it apart, I recommend following our reflow guide before installing the RROD fix kit. I recently did this to an X360 that the RROD kit fixed only momentarily and afterwards it worked good as new.

Andrew Bookholt -

I did the relowing of the motherboard this weekend, hopefully it lasts longer than the previous repair.

zima539 -

I followed this guide and even performed the reflowing procedure. It worked perfectly. I noticed that when I took my Xbox 360 apart there were no existing thermal pads on the RAM chips on the underside of the mobo. Perhaps this caused the problem...? Either way this guide was thorough and easy to follow. Be sure to read ahead a step or two because some things are described generally in one step, then in better detail in the step after.

joekane1 -

first of all -> THANK YOU iFIXIT!

my xbox died on me 3 days before the MW3 release. 3 red lights! what a timing.

i followed the guide and did everything slow and careful as instructed. (didnt do the reflow.)

the thermal paste thing was a bit tricky wasnt really sure how much i

have to put on the CPU and GPU to provide the right cooling but after

assembling all back together and hitting the "on" button the green lights came on!

haven't tried to play a longer session but i definetly will do this weekend with MW3.

Tsimi -

my 360 didn't have the three lights, but it still didn't work. First I thought there was something with the AV cables because the power button was green like normal yet there was no audio or video response coming from the TV. I tried swapping cables and that didn't work so I figured it was the xbox. I tried this fix and it worked great! So if anyone is wondering if this can fix a broken xbox only if that xbox has a RROD, perhaps give this fix a try because it worked for me.

Alexander DeBavelaere -

I have a question, can i do it only by changing the 4 thermal pads, and not moving on those x things? like, not changing anything on the cpu or gpu, please someone let me know asap

SergioSilva -

no change.didnt work

terry -

What's the best place to purchase all the parts in repair kit, but individually. I don't need everything provided, but just the heat sinks etc.

Eric Long -

Eric,

you can get the kit and tools to repair your xbox thru www.Ifixit.com for a little over $30. for everything you get its well werth it.

Hope this helps!

Laurap6286

Laurap6286 -

iFIXIT store probally

Alexander Wiand -

first off the instructions were great i followed everything didn't have a heat gun so i tried what the first commenter tried with just lettting it run without the fan let it cool still nothing I used rubber washers instead of nylon washers could that be whats preventing my xbox from working? any comments or advice would be greatly appreciated

tdawg -

This worked perfectly! Took a bit longer than I thought, but I went slow with the X clamps and decided to reuse them as well. Just paid for a $5.00 tube of thermal paste. $5.00 and no more RROD, thanks!

avoca120 -

I didn't have 3 red rings before the repair, but I knew it was overheating as it couldn't run a game for long, but was fine with some arcade games and DVDs. After the repair, and removing lots and lots of dust that has accumulated over 6 years, it NOW has the 3 red rings. Did I not put enough paste on? Any ideas would be helpful.

larzjudith -

The RROD is caused by the mother boards bending form poor heat transfer out of the system....the circuits become weak and break. the heating gun is used to effectively resolder the system and hopefully unbend the motherbaord enough to ge the system working again....their solutions to keeping it from happening again is thermal paste and new conduction tech that is more modern...once you get it working try getting more fans...or some sort of cooling solution in the system.

Samuel Irwin -

Guide worked great. Cleaned off all the old thermal paste with isopropyl then used a heat gun to reflow the solder. To all those wondering if you have to remove the x-clamps; the answer is yes. The reason the consoles RRoD is because of the x-clamps putting too much stress on the motherboard. Just make sure you clean everything really well and be careful. Also, I used MX-2 instead of the crap they send with the kit.

fliprealsorry101 -

i did all the thing it said in the guide to do worked great my xbox is working again but now i cant sink my wireless controllers to my xbox iv read online that it might be the RF that needs replacing i just want to see if anyone can tell if there is anything i can try before i buy the part

bradley -

Just used your Red Ring of Death Kit with success. Did the thermal rework too. It has been working for over an hour now so looks ok. Cooking the chips on "High" for four minutes was a bit scary but it survived. I have a thermal rework gun which I check with a thermocouple temperature probe which plugs in to my test meter. If I may make one small criticism it would help to have actual temperatures where you have stated "Low" and "High" Just ball park figures would be enough. This is the first use I've made of the rework gun so still building up skill with the technique. Obviously the effective temperature will vary according to the nozzle distance from the job. Otherwise very good kit and excellent instructions. Also worked with your Android app running on my tablet next to the job. Fantastic. Have fitted very many heat sinks as I have built computers since they ran on steam so no problem here. I'm a retired Electronics Engineer and will be 80 in December this year. Hands as steady as a surgeon but need glasses to work now. Many thanks. Keep up your good work.

Pete Green -

Well that made 2 hours of my time worth it, my old 360 runs again. Thanks to Ifixit for the kit and the guide on how to do it. Well worth the cost.

mittelk -

This technique works. Use a heat gun. Don't try any of the dopey "hack" fixes, like wrapping your Xbox in a towel, running it without the fans, or putting it in the oven. This is iFixit - they show you the right way to do things. Their guides work for a reason - they know what they're doing.

You CAN buy thermal compound, cleaning solution, and even the screws & washers elsewhere, but these dudes deserve your cash.

bundito -

i had the code E74 problem for my xbox 360 elite. the Ring Of Death kit fixed the problem. now my elite works like a charm. it had 1 ring on bottom right corner of the console. thank you for the support

Mathology317 -

I originally tried to fix my Red Ring of Death issue by just applying new thermal paste and not using iFixit's RRoD kit. Unfortunately, the repair did not work. So stopped being cheap and decided to buy the iFixit RRoD kit. Reflowing my XBOX's motherboard and applying the iFixit RRoD kit worked like a charm. GTA 5...here I come!

Hero Johnson -

Thank you for the guide and the repair kit. It unfortunately didn't solve my issue, but everything went smoothly and if I were to get another old Xbox - for repair or for a friend - I'd look here first to getting it up to par and to increase its life.

And to those who go "The video wasn't all that descriptive about x"... READ! Seeing can help, but the text guide was perfect at describing every aspect of my Xbox's dis-assembly.

markwatermaniac -

this didnt work at all im afraid, it would have been great if it did. but nothing has changed.

Ben Kiddle -

So successfully installed RROD kit and did a very cautious reflow... had green lights and went to bed. Woke up to continue reassembling unit and it was right back to 3 light RROD... I have just done a slightly less cautious reflow and am hopeing it will ressurect the console... if it doesn't well there goes the cost of the kit, 30 bucks in shipping and an unhappy family.

Kassandra Ariel Sherry -

Just received my kit and installed it in my RROD Xbox 360. Followed all the steps as well as the reflow and thermal paste guides. After reassembling the whole thing carefully... the kit unfortunately didn't work.

neilkrentz -

Do i really need arctic silver thermal paste or i can use any other?

vladtiry -

You can use a different type of thermal paste, but we recommend Arctic Silver.

Taylor Arnicar -

Hi all,

I did the advices in the guide but unfortunately, it doesn't work. Now i have two red lights before i had three. Anybody can help me ?

Thank you.

garcialoic1 -

This RROD fix kit didn't work for me, sadly.

Julian -

I don't care what anybody says, this guide actually worked for me. I made an account just to say that. Although, I will tell you, after immediately following the guide I got RROD again. What I did was towel trick (Google it ;) my console for a good 45 minutes. I then, let it cool for like another 45 minutes. Next thing you know.... :D

Shohid Islam -

The RROD kit did not work for me. :( So I guess I wasted $30 I could have put toward buying a different one.

neptune3452 -

I went through the guide a few nights ago. I have an older Xbox, One of those old white guys that everyone knows and loves. It lasted me a lot longer than I had expected, outliving a few of the newer versions that my friends had bought long after I had gotten mine. However, a few months ago it came down with a case of RROD. I thought "Great, no more warranty, I guess i can pay 100 bucks to get it repaired or just buy a whole new system for even more!" but thankfully, I bought the kit and now it's working like new. Super easy to take apart, no problems except for two. The first being that it's a pain to bolt in the heatsinks with the washers and everything. I used a trick where I used a few toothpicks through the mobo holes and washers to hold everything in place until I could get the bolt in and threaded. Aside from initially reinstalling the CPU heatsink in the wrong way (i blame lack of sleep) i was able to take it down again and redo it no problem at all. A fairly easy, cheap, and effective repair.

Zombie1995 -

Is this fix permanent? If it is not how long does it last?

Potato -

Kit was missing a nylon washer, and peeling the backing off of the thermal pads tore the pads to pieces. I followed the instructions exactly and made due with what I had, and did an entire system dusting. Now the Xbox won't run, whereas it had the red ring and would run prior to the repair. I have a history with computer construction and repair, so I was very careful and exact. I'll troubleshoot and re-do the thermal paste, yet at this time I'm calling this product a waste of time and money.

Chase -

I didn't have a heat gun so I used a blow dryer to heat up the board. Might not have been hot enough I assume since I still have the 3 red lights. I left it connected and turned on but nothing happens with the 3 red lights flashing. Can't even get it to heat up without the fans either. I will be buying a heat gun today to try it again and hope it works. If not, is there anything else I can try?

WALTER BARRIOS -

You can put the board in your oven I've done it a long time ago on one xbox 360 and I still have it, sense then it hasn't had the rrod

coolgamez -

Imagine my horror when I went to play my brand new copy of Dragon Age: Inquisition, and received a nasty little screen that said "E74". Came here, bought this kit & a $20 heat gun from the hardware store (to reflow the motherboard), and now I and Iron Bull are roaring through the Hinterlands! I am not a particularly "handy" person, so if I can do it, so can you. iFixit, you guys are awesome!

sabina007 -

Followed all the steps meticulously and still RROD. Another $30 down the drain I suppose plus still a nonfunctional xbox. sighh

JAZYTSAX -

I finally had the chance to attempt to repair the xbox for my son, it took a few but at the end with the guide and the parts I bought NO MORE RROD :-)

Thank you for the guide

Tom G.

Thomas Giles -

I did this for error code 0020 and now I get 0003. I bought the kit installed it after reflowing the xbox. Please help, eager baby cousin waiting to get back to his minecraft.

Ivanscreativity -

I just completed the above steps. I reflowed the board prior to putting in the kit. No more Red lights! We will see how long it lasts but for now, I'm one very satisfied customer!

Toby Brogden -

Installed the RROD fix kit and it didn't work. I didn't do the reflow because I don't have a heat gun. It was a great guide and fun project.

Brent Mealhouse -

A blow dryer (Hair dryer) works great as a heat gun... I have had many successes on second tries because the first try didn't work...

Tim Gelvin -

I din't work for me.. i have purchased the repair kit and installed all but i have still the red ring!

Sorry for my bad English.

willemswesley -

It didnt work for me.. i have purchased the repair kit but i still have the red ring of dead.. please help

willemswesley -

Purchased the kit and installed, however the unit booted up, saw the Xbox logo, then it locked up and back to the red ring :(

John Wiggins -

I went this way but it was not fixed :(

Mohy -

On the bottom side of the Mainboard just under the X clips some super Tiny small blocks fell off when I tried to reflow with the heat gun. Now my xbox wont work at all. What are those TINY blocks called that is just beneath the center of the X clips.

Samuel Marcum -

Well you just made your xbox a toaster set... those pieces that fell off were electrical components. Time to go buy a new xbox! You might want to let the professionals do the repairs for you next time. Sorry for your bad luck!

Tim Gelvin -

Many thanks... tried my first one today... bought the complete repair kit.. Found the instructions an images very easy to follow.. Job done and working perfectly... THANK YOU.. keep up the good work

damian s -

Thank you! My xbox360 is almost more than 10 years old, and have three red rings after 10~15minutes. I tried this guide without kit and skipped some steps, but it works!

My six screw driver did not match small size screw…. so I skipped step 36 ~ 52 , 54, 55. I just sticked two heat sinks on two chips (only step 53) but it works. Thank you very much!!!

William Jang -

Worked for us, Thanks a lot! We have launch core console, that we bought for 40€ on the flea market, but had a 3 rrod. We 've done the reflow, and used coins instead of cooling pads. We had then 4 rrod after it, but fortunately we only forgot the AV cable (this box has no HDMI). Now it runs like new. :-)

anonymous 6698 -

Never use this “Fix”… Please please do not use bolts. It breaks the system even more and acts as a temporary fix. Use the original X Clamps that were originally on the system. Your best bet would be re flowing the chips are replacing the thermal paste. ALWAYS USE THE X CLAMPS, NEVER USE BOLTS!

Jacob Fulenwider -

bonjour, merci pour le démontage mais je veut un schéma électrique / électronique du carte mère de x box 360 fat 2005 merci d’avance mon

email : rida9901@gmail.com

rida -

Awesome! it works, and it's not the first time I deal with micro electronics, I try to be more careful every time ( I'm getting better I think?) This is a cool website and I will further look into its fixings for other things I have that need updating to figuring out questions I have.

I finally was able to fix my xbox from 20 years of rrod circle, avoiding wanting to send it in, ha, I'm curious to see if other functions are now out of date with what they have going on in their database systems to tech now in bits communication. Yes, it was like going into the past with my old profile, will have to set it up a new now.

Ishmael Willis -

I just installed the kit and everything seems to be working. However, the fans are really loud now. I may be miss remembering but I have never heard them this loud before. I’m wondering if somehow the heat sensors go off of the heat sync temp and since they are transferring heat better now they are hotter and the fans are told to spin faster? It seems to be running fine so I just want to be sure that I can keep using the system without having to worry about it.

Braxton Biggers -

Please don’t do this to your 360… all you will do is damage it beyond repair bu trying to fix “broken solder joints” that aren’t even there… the issue lies in the flip chip itself, not the solder under the substrate.

RockL79 -

Yeah right microsoft design the xbox 360 do die back in 2006-2008

sportyantoniow1 -

I bought the RROD repair kit from IFIXIT. I think the motherboard solder reflow step was critical for fixing my unit. I used an Ancor heat gun on low setting (572 F) for 1 minute on the bottom side followed by 3 minutes on top side. I monitored the temp of the board by touch and when it started getting pretty warm, decided to stop the reflow. it’s all a guess as to what time and temp will work. I then applied the thermal paste and heat shields, reassembled the unit, powered it on and it ran perfectly. The RROD repair kit and instructions were great.

Michael Phillips -

I performed this repair about 8 months ago as a preventive measure. Console has not had any issues since the repair, but I’ve been reading that replacing the x-clamps with the screws and washers (the so-called “bolt mod”) actually will (1) cause the motherboard to flex and (2) lead to unrepairable damage. iFixit contributors, is it true? If so, does the method in this guide somehow protect against flexing? Should I disassemble my console and reinstall the x-clamps?

Michael Fleischmann -

Well, I have everything torn down and cleaned up and am ready to put the thermal paste on and put things back together. BUT I noticed there were two small silver “clip like” pieces that came off from somewhere and I don’t know where!! HELP!! They are about 1 - 1.5 “ long and 1/8 inch wide or narrower. There are 6 small rectangular holes with little flaps that look like they should slide onto or connect to something. One end has a small clip and the other end has a arrow like slide. Anyone have any ideas where these go? Thanks for any advice!!

Dschue -

I think the ones you mean are the clips of the chassis that go on the left and right side of the dvd drive opening . You have to put the bottom of the clip in the chassis and then slide it up over the edge on the top of the chassis

TheKillerbee24 -

Where do I even start? PLEASE FOR THE LOVE OF GOD DON’T DO THIS TO YOUR CONSOLE. Instead of me rambling about how this should be removed, watch this video which explains why this is a BAD IDEA: https://www.youtube.com/watch?v=C8gggL3f...

wavvy01 -

I didn't work for me but I'm going to let it run for a little while to over heat it also were do you solder the motherboard?

Aurelio -

Try hot iron on the chip instead of reflow.And pls check capacitor's they go.bad.fast.usualy I recap first.

ediflorianUS -
