Zojirushi Rice Cooker NP-HMH10 Internal Battery Replacement

Geschrieben von: Sirui Wu
  • Kommentare: 14
Zojirushi Rice Cooker NP-HMH10 Internal Battery Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

45 Minuten

Einleitung

This guide walks through the disassembling of a Zojirushi Rice Cooker NP-HMH10 and replacing the internal battery.

If the front panel screen of a Zojirushi Rice Cooker does not show information, most likely the internal battery of the rice cooker is dead (except damage caused by human factors).

In this guide, the soldering iron is necessary, and be sure you have a basic knowledge of soldering or use the tool under the supervision of a person who has experience.

For safety reasons, unplug the device before you begin.

  1. NE5wDi4QuyZvfQCV
    NE5wDi4QuyZvfQCV
    TXUwljbJOpPHCj6I
    PIwlaZGkukGZ6ssN

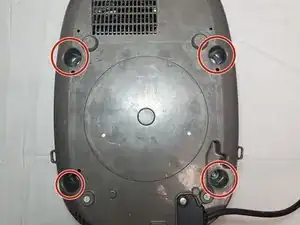

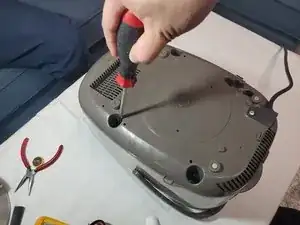

    • Flip the device over and remove the four screws on the base using the Phillips #0 screwdriver.

    I have the hex security screw. Where can I get that tool?

    Michael Hoy -

    My Zojirushi comes with the Hex security screw. Where can I get that tool?

    Michael Hoy -

    Hi, you can find these hex screwdrivers on any big online shopping website like amazon. Make sure you measure the screw size before your buying, the screw size may differ base on your product.

    Sirui Wu -

    Hi Michael, we don't sell individual Hex security screwdrivers but if you're interested in buying a toolkit, our Manta toolkit includes various Hex security bits and Hex security SAE bits. There is an assortment of 112 steel bits in total with 2 drivers included too. Thanks!

    Sarah Westberg -

    It might be relevant to mention that the battery has the solder tabs welded onto them, so you will need to have a new one with these pre-welded to keep things simple.

    registration -

    These instructions also work for the HB618, with a few slight modifications. I added comments where appropriate.

    registration -

  2. clpuop1cBI2KvTcm
    clpuop1cBI2KvTcm
    6ZiGZSmiDIF2uWTQ

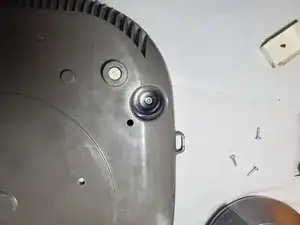

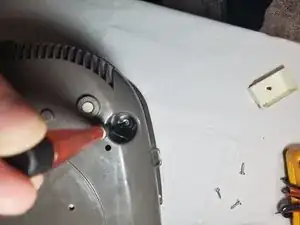

    • Be aware, one of the four screws is a security Torx screw.

    • Using a Torx T9 screwdriver remove one screw from the bottom of the rice cooker.

  3. yArLQG3MRJkycAZF
    yArLQG3MRJkycAZF
    sgFgXMccyIcwbQiT

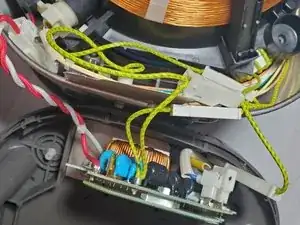

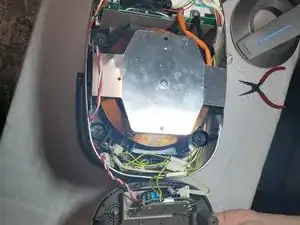

    • Gently lift the base from the device.

    • Be aware, DO NOT damage the cables that connect the base part and device.

    For the HBC18 you may want to disconnect the while clip connecting cables coming from the front, and going to the little board at the back. This allows complete removal of the bottom.

    registration -

  4. EJwVLIRjYbGTC3xP
    EJwVLIRjYbGTC3xP
    IFufqOFQK2XnUkpE
    GYIdq6BEtW3ISZ6w

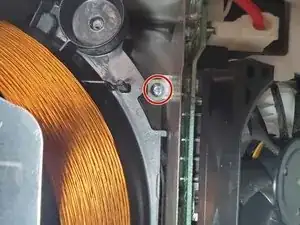

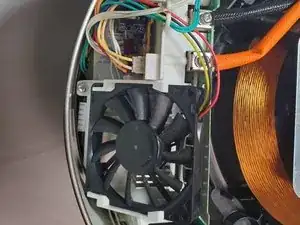

    • Remove the five screws connecting the heatsink to the device.

  5. yWtnxBi5qQB61OEN
    yWtnxBi5qQB61OEN
    bO125kIIJ3fRqkoJ

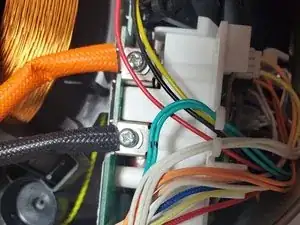

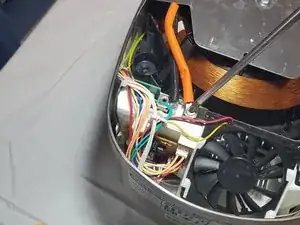

    • Remove the screws that connect the thick black and orange cables to the heat sink.

    The heatsink cables do not exist for the HBC18, but undo the copper wiring from a little black tab in between the white housing and the pot coils.

    registration -

  6. ExcRY24nRQ2LEbiy
    ExcRY24nRQ2LEbiy
    4VQHDNwy5bMNppKu

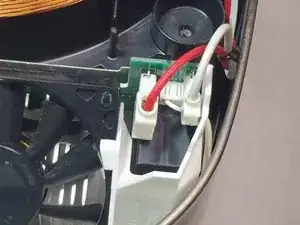

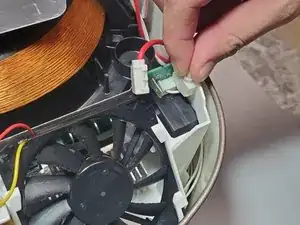

    • Gently unplug the white-head pins with red and white cables on the other side.

    Pull up on the flat cable connectors on the upper circuit board and disconnect all connectors.

    registration -

  7. lxwTiitY2QlkJABh
    lxwTiitY2QlkJABh
    tyVX4VIgMWkXcuYA

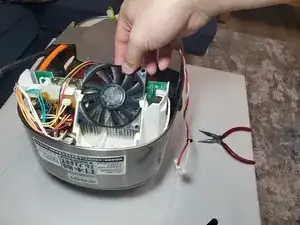

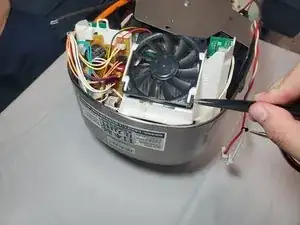

    • Now switch to the fan of the heatsink. Using a tweezer carefully lift the four clips around the fan.

    • Pull out the fan.

    For HBC18 pul out fan and moe to the left of the machine hang it down the front (still attached to lower circuit board).

    registration -

  8. IsNHAT6BQH1CjQ2w
    IsNHAT6BQH1CjQ2w
    MZYJWUopECpTXncc

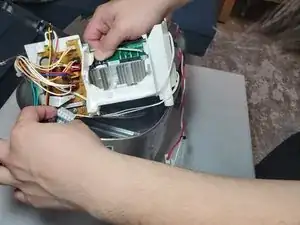

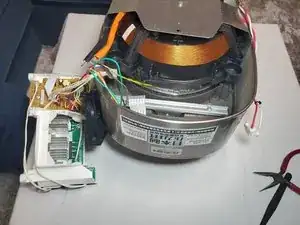

    • After removing the fan now you can take out the whole heatsink and access the below part.

    • Be careful about the cables that are still connected to the heatsink.

    For HBC18 you want to disconnect all cables and untangle them first. Take a picture if you need to remember where everything goes. After that gently lift up the white plastic contraption that holds the upper circuit board etc. Rotate it out of the way.

    registration -

  9. eXriplmJZANHDtrT
    eXriplmJZANHDtrT
    U5nu1hVWyVhpS5JV
    BIXgv1HtVxDDEdoC

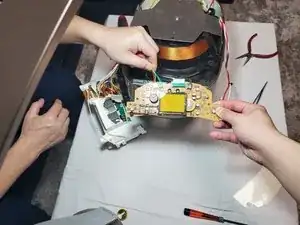

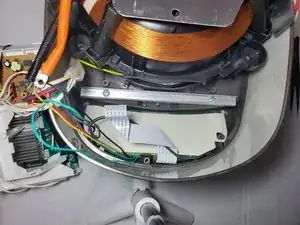

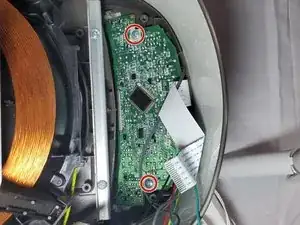

    • Above the PCB (Printed Circuit Board) is an isolated-plate. Take it away and unscrew the PCB below it.

    • Now you can have the access to the battery.

    HBC18 does not have the cover plate. Just unscrew the two screws lift up the PCB, disconnect remaining connecters so you can work on the PCB separately. This PCB is otherwise identical to what is described here, so no more HBC18 specific instructions.

    registration -

  10. pijMPfhQMKMOmtnr
    pijMPfhQMKMOmtnr
    bK6ZXC2aexk4VURX
    UXhNkMt5aSdThOQu

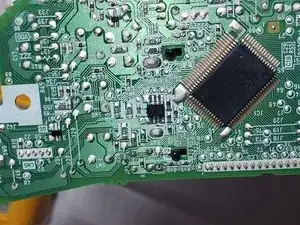

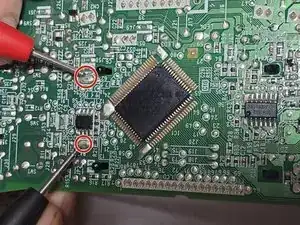

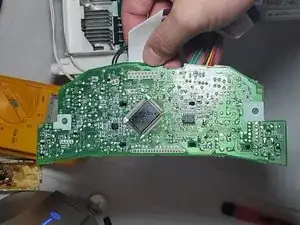

    • Turn the PCB to the other side. Find the soldering point of the battery as in the picture.

  11. RV6WBeb6raGynJjj
    RV6WBeb6raGynJjj
    MJJmrEaLRIeuyecn

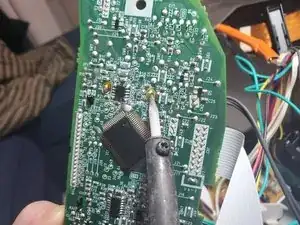

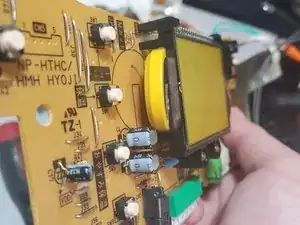

    • Desolder the two tabs then unplug the old battery.

  12. VhSbk2sSS2BIudof
    VhSbk2sSS2BIudof
    UANnWrGsPQL1ubcK
    6dmTL4YPkskAI23E

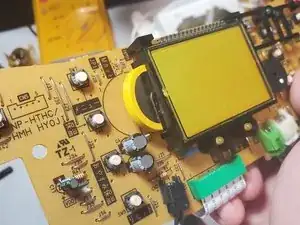

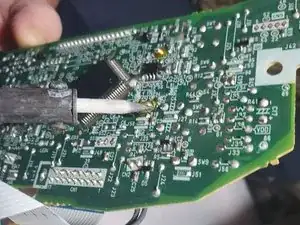

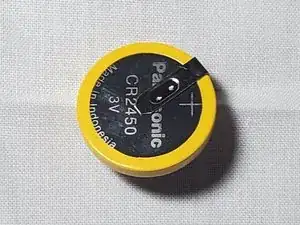

    • Take out the new battery. Install it onto the PCB and solder it.

    • When you install the battery, be sure to put the positive and negative tabs into the right hole.

  13. BspBUN45ORMpCnxl

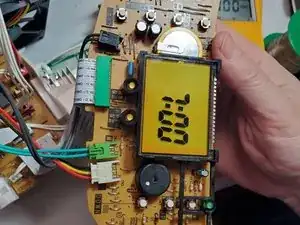

    • After soldering, you can check your result by making sure the front screen is displayed properly.

  14. Ba3NZLUvdaHFnRtP

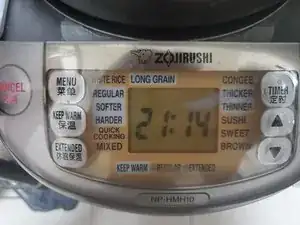

    • To reassemble your device, follow these instructions in reverse order.

    • Set the device to the correct time and save the setting. If the time is displayed properly, then congrats, you have successfully completed the replacement of the rice cookers battery! Go to make a delicious rice bowl to reward yourself.

Abschluss

To reassemble your device, follow these instructions in reverse order.
