iPad Pro 12.9" 2nd Gen Screen Replacement

Before starting repairs, take your iPad off the charger and power it down.

Do your best to follow the rest of the guide as described. However, once the glass is broken, it will likely continue to crack as you work, and you may need to use a metal prying tool to scoop the glass out.

As you slice through the adhesive, note the following:

The adhesive on the long edges of the iPad is about 4 mm wide. Avoid slicing deeper than that, or you risk damaging the display panel.

The adhesive on the short edges of the iPad is about 2 mm wide. Avoid slicing deeper than that.

Take especially care when slicing near the home button and charging port to avoid damaging the flex cables.

Take extra care when you slice near the front facing camera, to avoid damaging or smearing it.

Apply a heated iOpener to the left edge of the screen to loosen the adhesive underneath. Apply the iOpener for at least 5 minutes.

Pull the blue handle towards the hinge to disengage opening mode.

Elevate the iPad enough for the Anti-Clamp's arms to rest above and below the screen.

Position the suction cups near the left edge of the iPad—one on the front, and one on the back.

Push down on the cups to apply suction to the desired area.

Push the blue handle away from the hinge to engage opening mode.

Turn the handle clockwise until you see the cups start to stretch.

Wait one minute to give the adhesive a chance to release and present an opening gap.

Insert an opening pick under the screen when the Anti-Clamp creates a large enough gap.

Skip the next two steps.

Once the screen is warm to touch, apply a suction handle to the left edge of the iPad's screen, above the Smart Connector port and as close to the edge as possible.

While holding down the corners of the iPad, repeatedly pull up on the screen, then ease it back down to weaken the adhesive. This will eventually create a small gap in the seam.

Once you've created a small gap, insert the tip of an opening pick into the gap.

Reapply the iOpener to the bottom left corner of the iPad for at least 2 minutes, spanning from the opening pick to the home button.

After letting the adhesive soften, insert an opening pick or halberd spudger into the gap next to the opening pick.

Use an opening pick or halberd spudger to slice the adhesive along the bottom left side of the iPad. If the slicing becomes difficult, reheat the edge and try again.

Insert an opening pick underneath the bottom left corner of the screen to prevent the adhesive from resealing.

Reapply the iOpener to the upper left corner of the iPad for at least 2 minutes, spanning from the opening pick to the front facing camera.

Use an opening pick or halberd spudger and slide along the upper left edge of the iPad to slice the adhesive.

Insert an opening pick underneath the top left corner of the screen to prevent the adhesive from resealing.

Reheat your iOpener and apply it the top edge of the device for at least 2 minutes.

Use an opening pick or halberd spudger and slide along the top edge of the iPad to slice the adhesive. Stop before you reach the front-facing camera.

Insert an opening pick underneath the screen just before the front-facing camera to prevent the adhesive from resealing.

Reheat your iOpener and apply it to the top edge of the device for at least 2 minutes.

Insert an opening pick or a halberd spudger just past the front-facing camera.

Use your cutting tool to slice the remaining adhesive underneath the top edge of your device.

Insert an opening pick underneath the upper right corner of the screen to prevent the adhesive from resealing.

Apply a heated iOpener to the right edge of the screen for 5 minutes to loosen the adhesive underneath.

Use an opening pick or halberd spudger and slide along the right edge of the iPad to slice the adhesive.

Insert an opening pick underneath the center of the right edge to prevent the adhesive from resealing.

Insert an opening pick underneath the bottom right corner of the iPad to prevent the adhesive from resealing.

Reheat your iOpener and apply it to the bottom edge of the device for at least 2 minutes.

Insert an opening pick or a halberd spudger underneath the bottom right corner of the iPad.

Slide the opening pick along the bottom edge of the iPad, stopping short about 12 mm before reaching the home button.

Insert an opening pick underneath the screen just before the home button to prevent the adhesive from resealing.

Use the tip of an opening pick or an halberd spudger to slice the adhesive beneath the home button.

Insert an opening pick or a halberd spudger just past the home button.

Use your cutting tool to slice the remaining adhesive underneath the bottom edge of your device.

At this point, you've sliced through most of the screen adhesive. Use an opening pick to carefully slice any remaining adhesive along the edges until the screen is freed.

Lift up the upper edge of the screen and slide the entire screen towards the front-facing camera to access the iPad's internal components.

Use masking tape to tape the lower edge of the screen to the frame to prevent the screen from slipping.

Attach a long strip of masking tape to the top edge of the screen. Fold the tape over the edge and make sure that the tape is attached securely.

Attach the other end of the strip to the bottom edge of the iPad frame to hold the screen at an angle. Make sure the tape attaches securely to the frame.

Use a Phillips screwdriver to remove the six screws securing the logic board EMI shield:

Two 2.4 mm-long screws

Four 1.2 mm-long screws

Lift the logic board EMI shield from the edge nearest the top of the iPad.

Peel up the EMI shield from the logic board.

Remove the logic board EMI shield.

Use a Phillips screwdriver to remove the 1.6 mm-long screw securing the battery connector.

Use a piar of scissors to cut two 6 mm x 20 mm strips of a playing card to use as a battery blocker.

Gently insert the card strips on each side of the battery connector as far as they will go.

Use a Phillips screwdriver to remove the four screws securing the display connector bracket:

Two 1.2 mm-long screws

Two 2.4 mm-long screws

Remove the display connector bracket.

Use the pointed end of a spudger to pry up and disconnect the display and digitizer cables from their logic board sockets.

Remove the screen assembly.

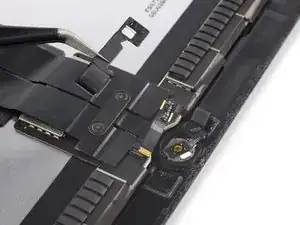

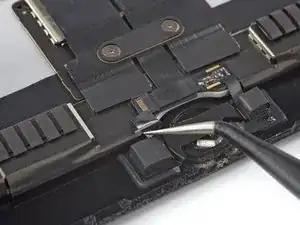

Use tweezers to peel off the tape covering the ZIF connector above the home button.

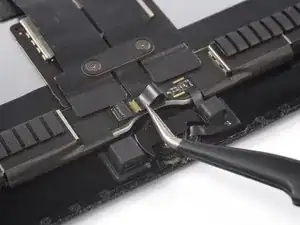

Use the point of a spudger to open the ZIF connector that secures the cable by bringing its flap in an upright position.

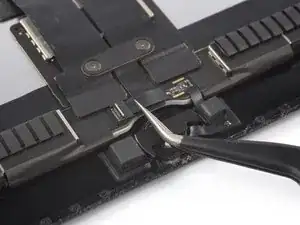

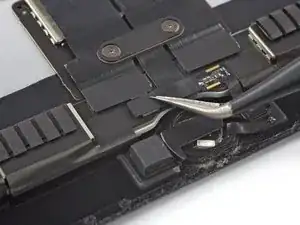

Use tweezers to slide the cable out of the ZIF connector.

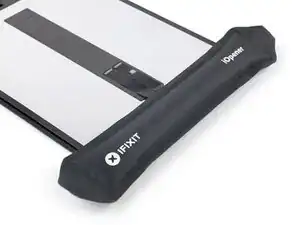

Apply a heated iOpener to the home button for 2 minutes to loosen the adhesive underneath its cable.

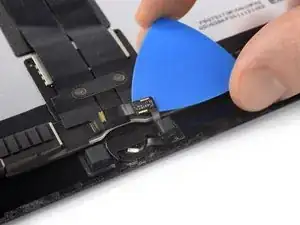

Carefully slide an opening pick underneath the home button cable to separate it from the screen.

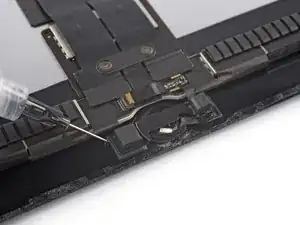

Apply a few drops of high concentration (90% or higher) isopropyl alcohol to the base of the home button bracket to loosen its adhesive.

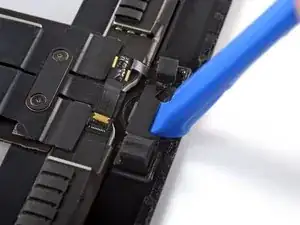

Insert the edge of an opening tool under the home button bracket lip.

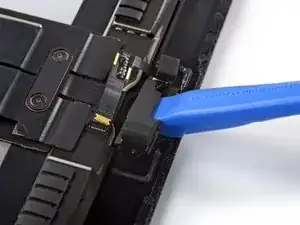

Carefully pry up with steady force to loosen the bracket.

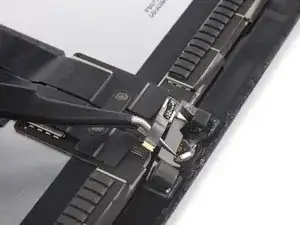

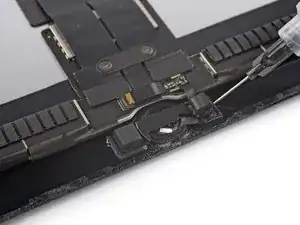

Use tweezers to carefully pull the home button bracket from underneath the home button cable.

Remove the home button bracket.

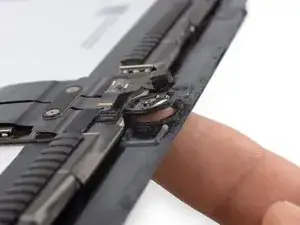

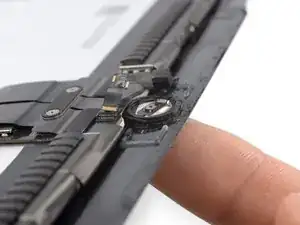

Gently push the home button from the front of the display inward using the tip of a finger.

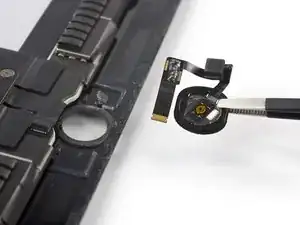

Remove the home button.

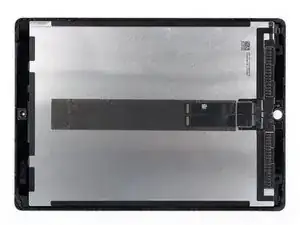

Only the screen remains.
