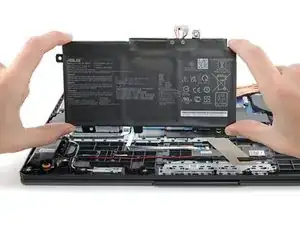

Battery Disconnect
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background
The ASUS TUF Gaming F15 FX506HEB-DB74 is geared towards serious gaming and streaming. It offers a sleek, metallic design and plenty of processing power and battery life to last hours of gaming.
Identification
The ASUS TUF Gaming F15 FX506HEB-DB74 is a sleek laptop with a metallic top and sturdy plastic sides. It is sleek for such a powerful gaming laptop and has an orange accented keyboard. It comes in Eclipse Gray or Graphite Black. It has a honeycomb grip pattern on the bottom.
Specifications
Display
- 15.6-inch FHD anti-glare; 1920 x 1080 pixels
Processor
- Intel Core i5/i7/i9
Graphics
- NVIDIA GeForce RTX 3050/3060
Storage
- 512 GB or 1TB M.2 SSD
Memory
- 8/16 GB DDR4
- 32 GB max capacity
Battery
- 48-watt-hour 3-cell lithium-ion or 90-watt-hour 4-cell lithium-ion
Dimensions
- Width: 14.13 inches (35.9 cm)
- Depth: 10.08 inches (25.6 cm)
- Height: 0.9 inches (2.28 cm)
- Weight: 5.07 pounds (2.3 kg)
Ports
- USB 3.2 Gen 2 Type-C (DisplayPort support)
- 3 USB 3.2 Gen 1 Type-A
- RJ45 LAN port
- 3.55 combo audio jack
- HDMI 2.0b
