Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

In order to troubleshoot your device, please use this troubleshooting guide.

Background and Identification

The Acer Aspire R5-571T-57Z0 laptop is a part of the Aspire series by Acer. It is a budget laptop released on October 15, 2016, that has an Intel Core i5 processor, 8 GB of standard memory, and a 1 TB hard drive. It weighs 5.29 lbs and has a 15.6” screen.

The model number is located on the bottom of the laptop near the hinge area of the outer covering. This can be used to differentiate this model from similar models in the Aspire series.

One of the main features of the laptop is that it has a touchscreen, enabling extra controls for the convenience of the user. The outer hinges are also flexible allowing it to be used as both a traditional laptop and as a standard tablet.

One of the most common problems with the laptop is issues with the touch screen. People have reported that the touch screen can become unresponsive after some time. There have also been issues where the laptop stops functioning completely and is unable to turn on.

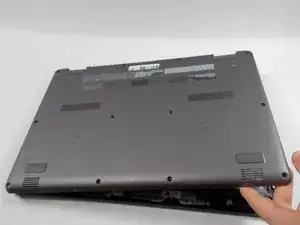

Luckily, the laptop is relatively easy to repair. It can be opened by simply removing 12 screws from the bottom of the shell. Most of the components are easily replaceable, but replacing the screen will take a little more work.

Specifications

Processor

  • Processor Manufacturer: Intel
  • Processor Type: Core i5
  • Processor Model: i5-7200U
  • Processor Speed: 2.50 GHz
  • Maximum Turbo Speed: 3.10 GHz
  • Cache: 3 MB

Memory

  • Standard Memory: 8 GB
  • Maximum Memory: 12 GB
  • Memory Technology: DDR4 SDRAM
  • Memory Card Reader: Yes
  • Memory Card Supported: SD
  • Memory Card Supported: SDXC

Storage

  • Drive Type: HDD
  • Total Hard Drive Capacity: 1 TB
  • Hard Drive Interface: Serial ATA
  • Hard Drive RPM: 5400
  • Optical Drive Type: No

Display & Graphics

  • Screen Size: 15.6”
  • Display Screen Type: LCD
  • Display Screen Technology: In-plane Switching (IPS Technology)
  • Aspect Ratio: 16:9
  • Screen Mode: Full HD
  • Screen Resolution: 1920 x 1080
  • Backlight Technology: LED
  • Touchscreen: Yes
  • Multi-touch Screen: Yes
  • HDCP Supported: Yes
  • Graphics Controller Manufacturer: Intel
  • Graphics Memory Technology: DDR4 SDRAM
  • Graphics Memory Accessibility: Shared
  • TV Card: No

Network & Communication

  • Wireless LAN: Yes
  • Wireless LAN Manufacturer: Qualcomm Atheros
  • Wireless LAN Model: NFA344A
  • Wireless LAN Standard: IEEE 802.11ac
  • Ethernet Technology: Gigabit Ethernet
  • Bluetooth: Yes

Built-in Devices

  • Front Camera/Webcam: Yes
  • Microphone: Yes
  • Fingerprint Reader: No
  • Speakers: Yes
  • Sensor Type: Accelerometer

Interfaces/Ports

  • HDMI: Yes
  • Total Number of USB Ports: 4
  • Number of USB 2.0 Ports: 1
  • Number of USB 3.0 Ports: 2
  • Number of USB 3.1 Ports: 1
  • USB Type-C: Yes
  • Audio Line Out: Yes

Software

  • Operating System Platform: Windows
  • Operating System: Windows 10 Home
  • Operating System Architecture: 64-bit

Input Devices

  • Keyboard: Yes
  • Keyboard Backlight: Yes
  • Pointing Device Type: TouchPad
  • TouchPad Features: Multi-touch Gesture

Battery Information

  • Number of Cells: 4-cell
  • Battery Chemistry: Lithium Ion (Li-Ion)
  • Battery Capacity: 3220 mAh
  • Battery Energy: 48 Wh
  • Maximum Battery Run Time: 9 Hour

Power Description

  • Maximum Power Supply Wattage: 45 W

Physical Characteristics

  • Height: 0.79”
  • Width 14.6”
  • Depth 10.1”
  • Weight (Approximate): 5.29 lb
