Reparaturanleitungen

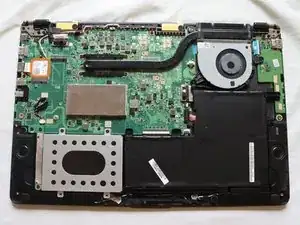

Back Cover

Back Cover

 en
Battery

Battery

 en

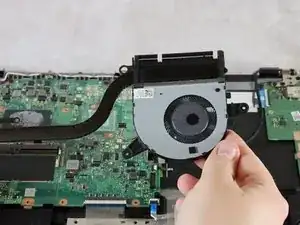

CPU Fan

CPU Fan

 en

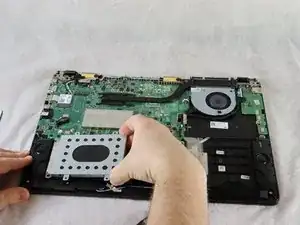

Hard Drive

Hard Drive

 en
RAM

RAM

 en
Wi-Fi Card

Wi-Fi Card

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Troubleshooting

If you are experiencing any issues with this device, try visiting the Troubleshooting page.

Background and Identification

The Asus Q525U is a multi-function laptop with a 360 degree rotatable display released in July of 2019. This laptop is best identified by the model number on the back of device, ABI7T9, and provides various functions for optimal productivity.

The sleek design is convenient for a variety of applications, including gaming, web browsing, and multimedia functions. The 15.6” touch-capacitive display provides a crisp picture and is thin and light. This laptop also includes 3 USB ports, a HDMI port, and has fingerprint and facial recognition capabilities.

Specifications

Display/Weight:

  • Screen size
    • 15.6”
  • Resolution
    • 1920 x 1080 pixels
  • Touchscreen
    • Yes
  • HD type
    • Full HD
  • Weight
    • 4.2 lbs

Processor:

  • Processor type
    • 8th Gen Intel Core i7
  • Processor frequency
    • 1, 8 GHz
  • Processor cores
    • 4
  • Processor boost frequency
    • 4 GHz

Software:

  • Operating system installed
    • Windows 10 Home
  • Operating system architecture
    • 64-bit

Memory:

  • Max internal memory
    • 16 GB
  • Internal memory type
    • DDR4-SDRAM
  • Memory clock speed
    • 2400 MHz

Storage:

  • Total storage capacity
    • 2000 GB
  • Storage media
    • HDD
  • Card reader integrated
    • Yes

Graphics:

  • On-board graphics card model
    • Intel UHD Graphics 620
  • On-board graphics base frequency
    • 300 MHz
  • Max on-board graphics card memory
    • 32 GB

Audio:

  • Number of built in speakers
    • 2
  • Built in microphone
    • Yes

Camera:

  • Front camera
    • Yes

Network:

  • Bluetooth
    • Yes
  • Bluetooth version
    • 4.1
  • Wi-Fi
    • Yes
  • Top Wi-Fi standard
    • Wi-Fi 5 (802.11ac)

Ports:

  • USB ports
    • 2 USB type A, 1 USB type C
  • HDMI port
    • 1
  • Headphone/mic port
    • Yes

Battery:

  • Number of battery cells
    • 3

Power:

  • AC adapter power
    • 45 W
  • AC adapter frequency
    • 50 - 60 Hz
  • AC adapter input voltage
    • 100 - 240 V
  • AC adapter output voltage
    • 19 V

For more specifics and to access the websites referenced, please utilize the following sources:

https://kelaptop.com/en/asus-q525ua-bi7t...

https://www.asus.com/us/SupportOnly/Q525...

Additional Information

For general support on this device.

In order to repair individual keys on the keyboard of this laptop.

How to repair a black screen on an Asus laptop.

Amazon reviews for the Asus Q525U
