Reparaturanleitungen

Battery Connection

Battery Connection

 en

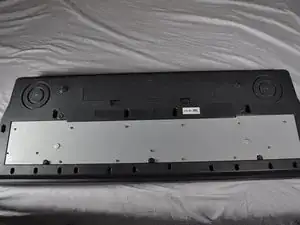

Bottom Panel

Bottom Panel

 en

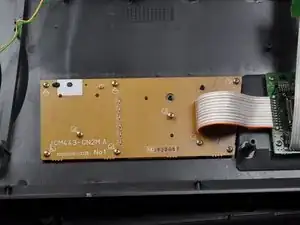

Buttons

Buttons

 en

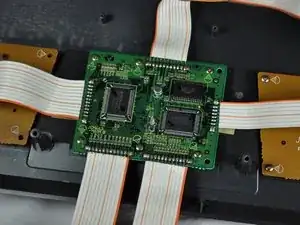

Keys

Keys

 en

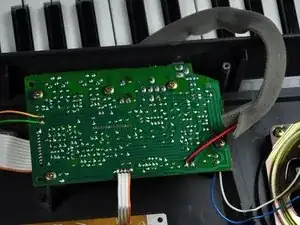

LCD Screen

LCD Screen

 en

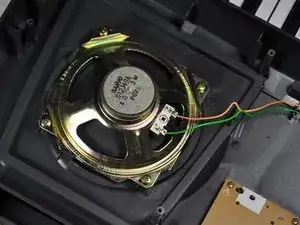

Speaker

Speaker

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Identification

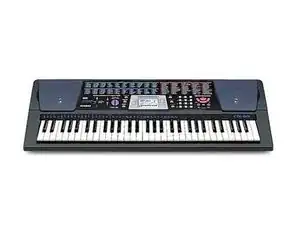

The CTK-501 has a black plastic exterior and one blue trapezoidal shaped speaker on either side of the top panel. The model name, CTK-501, is printed on the backboard above the keys on the far right side.

Specifications

  • unique tones: 100
  • unique rhythms: 100
  • capable of 12-note polyphony
  • 5-channel multi-timbre MIDI
  • GM simulated mode (GM tone map)
  • Auto-accompaniments
  • Comes with a score book
  • Size (W x D x H) : 961 x 381 x 139 mm
  • Weight : 5.4 kg
  • Batteries : D-size x 6
  • AC adaptor : AD-5
  • EAN code : 4971850311621

Troubleshooting

Use our Casio CTK-501 Troubleshooting Page to diagnose any issues.

Additional Resources

CTK-501 Specifications Webpage: http://www.casio-intl.com/asia-mea/en/em...

Casio Website: http://www.casio-intl.com

CTK-501 User Manual at www.Exodes.co under "Device" tab.
