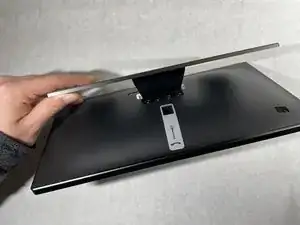

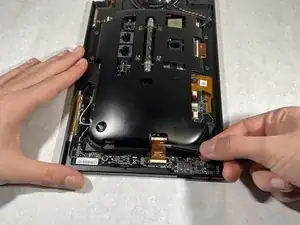

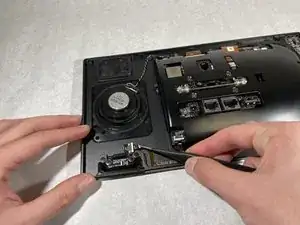

Back Housing and Device Stand
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For any help identifying issues with your device, check out our troubleshooting page.
Background and Identification
The Cisco Meraki MC74-HW is a device designed by Meraki to be used to place/ receive calls and is capable of transferring calls to other MC74 devices while also having a tablet like screen within reach of the phone when in use. Sadly this device model is no longer being manufactured but it is still functional and serviced by the company.
The device has some useful features such as wideband audio which enhances calling experience by allowing it to connect smoother, and a wide range of connectable USB/Bluetooth devices so that the user may be comfortable when placing and receiving calls. The device also allows for quality hands-free use by having a sensitive microphone and full range speaker.
If you are unsure if the device you have is the Cisco Meraki MC74-HW there are a couple ways you can identify it. First, try and locate the model number on the back of the device and see if it is the same model as the device we are displaying here. If there for some reason is no way to read the model number or maybe the label has been taken off, you can use some visual ques to identify and confirm your device. By making reference to the photos provided on this device page, make sure that the prominent, visible features all match up such as making sure the color is an all black design, the LCD touch screen is present, there is a branded title “Cisco” centered on the top part of the frame, the volume and mute button on the right hand side of the frame, and there is an auxiliary jack on the bottom right side. If all of these features seem to line up and match your device, it is safe to assume that you have and MC74.
Specifications
Telephone
- Type: VoIP phone
- Conference Call Capability: yes
Features
- Speakerphone: yes
- Call Services: call hold, call transfer
- Volume Control: yes
Display
- Type: LCD display
- Display Resolution: 1280 x 800 pixels
- Diagonal Size: 7 inch
- Diagonal Size (metric): 17.8 centimetre
- Color Support: Color
- Display Location: Base
- Features: Touch screen
IP Telephony
- Main Features: Integrated Ethernet switch
- VoIP: Yes
- VoIP Protocols: SIP
- Voice Codecs: G.711a, G.711u, G.722
- Security: TLS
- Network Protocols: SRTP
- Network Ports Qty: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T
- Power Over Ethernet (PoE) Support: Yes
- Network Features: Class 3 PoE
Phone Connections
- Connections: Headset jack / mini-phone 3.5 mm
Miscellaneous
- Color Category: Black, Black
- Placing / Mounting: Table-top, Wall-mountable
Dimensions and Weight (Base)
- Width: 10.7 inches
- Depth: 7.3 inches
- Height: 3.7 inches
- Weight: 2.4 lbs
