Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Dell Inspiron 14 3459 is a 14-inch laptop with an Intel processor and an AMD graphics card inside. The laptop comes in various configurations with specific processor ranging from a low-power Intel Celeron to a 6th-generation Intel Core i5. All models feature the same AMD Radeon R5 M315 graphics card which powers the 1366x768 pixel display. The chassis for the Inspiron 14 3459 is fully black with a circular Dell logo on the back of the screen.

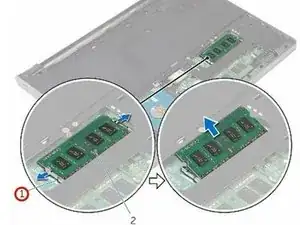

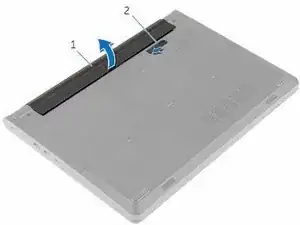

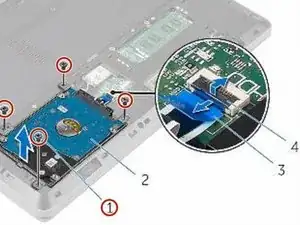

You can find instructions for opening this laptop either here on iFixit or in the Dell service manual for this laptop. The battery is held in place at the back of the laptop with a single clasp, and the service cover on the bottom of the device can be removed with only a Phillips screwdriver. Once you’re past this cover, you have access to the hard drive (in a 2.5-inch drive bay), the two memory slots (for up to 8 GB total), and the wireless card. Replacing other components in the laptop is a bit more difficult because you need to remove the keyboard and palm rests first.
To identify this laptop, look on the bottom cover for a sticker containing the model name “Inspiron 14 3459.” If this number isn’t shown, look for the service tag/code shown on the sticker. Either number works as a unique identifier that you can enter on the Dell support website for more exact information about your device.
Technical Specifications
Processor
- Intel Celeron (dual core)
- or Intel Pentium (dual core)
- or 6th-generation Intel Core i3 or Core i5
Memory
- 2 GB, 4 GB, or 8 GB total
- Two SO-DIMM slots
- DDR3L at 1600 MHz
Storage
- Standard 2.5-inch drive (uses a SATA 6 Gbit/s connection)
Graphics
- Integrated graphics
- Intel HD Graphics 610
- or Intel HD Graphics 620
- Dedicated graphics
- AMD Readon R5 M315
Display
- 14.0 inches (35.6 cm) on the diagonal
- 1366x768 pixels
- 60 Hz refresh rate
Connections
- Two USB 2.0 ports
- USB 3.0 port
- HDMI port
- 3.5 mm headphone/microphone jack
Wireless
- 802.11a/b/g/n/ac Wi-Fi
- Bluetooth 4.0
Additional Information
Dell Inspiron 14 3459 official support page
Inspiron 14 3459 specifications
