Before working inside Dell inspiron 15 5502
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background Info

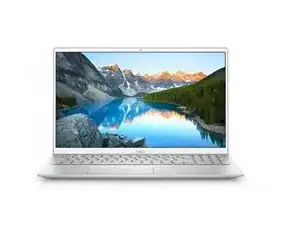

This laptop was the successor to the model Inspiron 5593 in the Dell lineup. Major changes were the new hinge design, New 11th gen CPU.
Major components
- Base cover
- Battery
- Power-adapter port
- Heat sink
- Memory module
- Solid-state drive bracket
- M.2 2230 solid-state drive in M.2 slot two
- Speakers
- System board
- Touchpad
- Palm-rest and keyboard assembly
- Display assembly
- Power button with optional fingerprint reader
- Coin-cell battery
- I/O board
- Fan
- Wireless card
- M.2 2280 solid-state drive in M.2 slot one

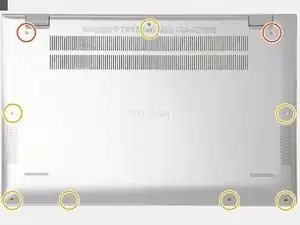

Screw List
Here you can find a detailed list of screws. This come useful when you lose a screw (probably on repair), so that you can order the screw online.
