Dell Inspiron 15 3501 Repair

The Dell Inspiron line of laptops, desktops, and all-in-one computers are designed with consumers and home users in mind. The Inspiron series has grown much over time, from the initial Celeron 1.4GHz processors and limited motherboards. Now, they host more ports, power management, and up-to-date performance parts. This, however, only came after a total overhaul by Dell after successive issues with batteries and design flaws of the mid 2000's. The Dell Inspiron 3501 is one of many daily-drivers offered at a very reasonable price point for hardware only a generation or two behind higher end devices.

Manufacturer: Dell Inc.

Released: July of 2020

Dimensions: 14.33 inches wide, 9.8 inches long, 0.78 inches thick

Screen-to-body ratio: 74%

The Inspiron 3501 comes in a variety of options:

1. 10th Gen Intel Core i3-1005G1 2-core up to 3.4GHz
2. Intel Celeron N4020 2-core up to 2.8GHz
3. Intel Celeron 6305 2-core up to 1.8GHz
4. Intel Pentium Gold 7505 2-core up to 3.5GHz
5. 11th Gen Intel Core i3-1115G4 2-core up to 4.1GHz
6. 11th Gen Intel Core i5-1135G7 4-core up to 4.1GHz
7. 11th Gen Intel Core i7-1165G7 4-core up to 4.7GHz

• Integrated (Options 1 - 5)
  • Intel UHD Integrated Graphics
  • Intel Iris Xe Graphics
• Discrete (Options 6, 7)
  • NVIDIA GeForce MX330, GDDR5, 2 GB

The 3501 comes in either or both of the following:

• 2.5 inch hard drive (Not described in these guides) 6Gb/s up to 2 TB

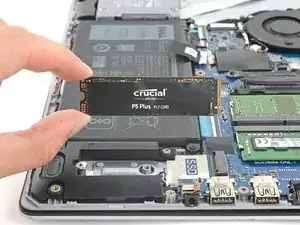

• One M.2 2230 / 2280 SSD 32Gb/s up to 1 TB

• Two SoDIMM slots
• Dual-channel DDR4
• 2666 MHz / 3200 MHz
• 4 GB to 16 GB

All options are 220 nits, 400:1 contrast, 60 Hz refresh rate, and anti-glare.

• HD 1366x768
• FHD 1080p non-touch
• FHD 1080p touch
