HAMILTON C-1 Repair

For additional help with the Hamilton C-1, check out our troubleshooting page.

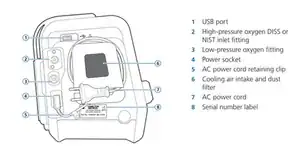

The Hamilton-C1 was released to the public in 2018 (Model number: 161001) and the equipment must be operated only by trained professionals. The serial number can be identified on the left side of the device on a sticker as represented by number 8 in the graphic below.

It is best known for many capabilities that include but are not limited to high flow oxygen therapy, invasive and noninvasive modes of ventilation, maximum mobility and 4+ hours of battery life while being very compact and convenient for transportation. The Hamilton-C1’s high-capacity battery and independence from compressed air means it is able to ventilate patients during intrahospital transport without need for an external power source. The Hamilton-C1 also has a user interface that is similar to other Hamilton ventilators, making operations easier as the same principles apply.

Some features attributed to the Hamilton-C1:

• Adaptive, lung-protective ventilation with Adaptive Support Ventilation (ASV)
• High-performance noninvasive ventilation (NIV)
• Integrated high flow oxygen therapy
• Speaking valve

For more information about Hamilton-C1’s features and capabilities, please view their product brochure.

The Hamilton-C1 is available in both Europe and the United States. Hamilton Medical also manufactures a wide range of other ventilators such as the Hamilton-G5 which is designed for critically ill patients in ICU settings, or the Hamilton-T1 which is approved for ambulance, helicopter and airplanes. In comparison to those, the Hamilton-C1 is much more compact and suitable for adult, pediatric and neonatal ventilation, making it a viable option for hospital use.

Physical Characteristics

• Weight: 4.9 kg (10.8 lb), 16.9 kg (37.3 lb) with trolley

              NOTE: The trolley can accommodate a maximum safe working load of 44 kg

              (97 lb).

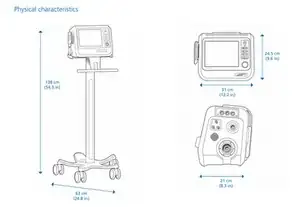

• Dimensions: See graphics below
• Monitor Size: 640 x 480 pixels, 8.4 in (214 mm) diagonal
• Trolley accessories: HAMILTON-H900 mounting system, optional O2 bottle holding system, optional tubing support arm

Electrical Specifications

• Input power: 100 to 240 VAC ±10%, 50/60 Hz
• Power consumption: 50 VA typical, 150 VA maximum
• Battery:
  • Electrical specifications: 6.7 Ah, 72 Wh, 50 W typical, 150 W maximum
  • Type: Lithium-ion, supplied by Hamilton Medical only
  • Normal operating time: One battery, display brightness = 80%: 4 h One battery, display brightness = 20%: 4.5 h

• Official Hamilton-C1 Operator’s Manual
• Hamilton Medical Official Website
• E-catalog for Accessories and Consumables

Hamilton C1 Service Manual
