Processors

Intel® Core™ 2 Duo processors

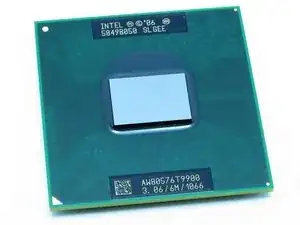

  • T9900 3.06-GHz processor, 6-MB L2 cache, 1066-MHz FSB
  • T9800 2.93-GHz processor, 6-MB L2 cache, 1066-MHz FSB
  • T9600 2.80-GHz processor, 6-MB L2 cache, 1066-MHz FSB
  • T9550 2.66-GHz processor, 6-MB L2 cache, 1066-MHz FSB, 35W
  • T9400 2.53-GHz processor, 6-MB L2 cache, 1066-MHz FSB, 35W
  • P9600 2.66-GHz processor, 6-MB L2 cache, 1066-MHz FSB, 25W
  • P9500 2.53-GHz processor, 6-MB L2 cache, 1066-MHz FSB, 25W
  • P8800 2.66-GHz processor, 3-MB L2 cache, 1066-MHz FSB
  • P8700 2.53-GHz processor, 3-MB L2 cache, 1066-MHz FSB
  • P8600 2.40-GHz processor, 3-MB L2 cache, 1066-MHz FSB
  • P8400 2.26-GHz processor, 3-MB L2 cache, 1066-MHz FSB

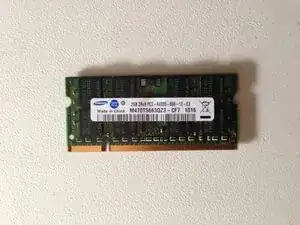

Memory

2 customer-accessible/upgradable memory module slots. Supports up to 8 GB of system RAM PC2-6400, 800-MHz, DDR2

Chipset

Northbridge: Intel GM45 with up to 1067 FSB with iAMT support (discrete graphics subsystem memory)

Northbridge: Intel PM45 with up to 1067 FSB with iAMT support (Unified Memory Architecture)

Southbridge: Intel ICH9M enhanced

Graphics

Graphics ATI M82-SCE Mobility Radeon HD3450 discrete graphics subsystem memory with 128 MB GDDR3 (operating at 700 MHz) or 256 MB GDDR3 (operating at 700 MHz)

OR

Mobile Intel GMA X4500 HD Universal Memory Architecture (UMA) graphics subsystem integrated with shared video memory (dynamically allocated), up

to 384 MB

Dimensions

Depth 24.30 cm (9.57 in)

Width 33.10 cm (13.03 in)

Height (front to rear) 3.13 to 3.41 cm (1.23 to 1.34 in)

Weight wiith an optical drive, WXGA display, and 6-cell battery) 2.40 kg (5.29 lbs)

Display

WXGA 35.56 cm (14.1 in) Diagonal

Contrast ratio 250:1 (typical)

Brightness 180 nits (typical)

Format 1280 × 800 or 1440 × 900

Viewing angle +/-40 horizontal, +20/–40° vertical (typical)

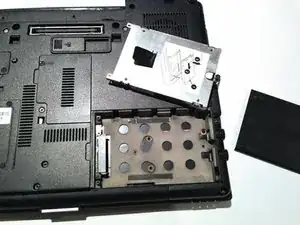

HDD

SATA 720rpm 120GB to 250GB

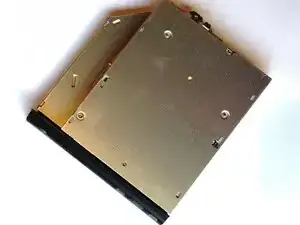

Optical Drive

DVD±RW or CD-RW or DVD/CD-RW or DVD-ROM Drive
