HP OMEN 15-ax280nd Repair

The HP OMEN (model number 15-ax280nd) is a personal computer “notebook” released by Hewlett-Packard (HP) in 2016. The first OMEN laptop was released in 2015 and was marketed toward occasional gamers. The laptop has a 15.6-inch display (measured diagonally).

The 2016 OMEN model has a Skylake processor rather than the 2015’s Haswell processor. It comes with a matte in-plane switching (IPS) display that has a resolution of 1920 by 1080 pixels. The 15-ax280nd model also includes 16 GB of DDR4 RAM by using two separate 8 GB RAM slots. It features 128 GB of internal storage and a 2-terabyte hard disk drive. The most common variant includes a Windows 10 Home 64-bit operating system, though less expensive variants of the laptop (such as the 15-ax005ng) have less powerful graphics processing units, less RAM, and smaller hard drives.

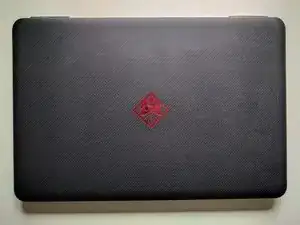

The OMEN model 15-ax280nd includes one HDMI port, one headphone/microphone combination port, one USB 2.0 port, two UDB 3.1 Gen 1 ports, and 1 RJ-45 port (RJ-45 ports are Ethernet-style data ports commonly used for Ethernet, series, and ATM IMA cards). The laptop has a black body and a keyboard with red backlight. The Hewlett-Packard logo is placed in the center of the bottom chassis of the laptop’s display. It also includes a red VoodooPC tribal mask logo on the back of the laptop.

Hardware:

• Product number: Z5E66EA
• Product name: OMEN by HP 15-ax280nd Laptop PC
• Microprocessor: Intel® Core™ i7-7700HQ (2.8 GHz, up to 3.8 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores)
• Chipset: Intel® HM175
• Memory, standard: 8 GB DDR4-2133 SDRAM (2 x 4 GB)
• Video graphics: NVIDIA® GeForce® GTX 1050 (2 GB GDDR5 dedicated)
• Hard drive:
  • 1 TB 7200 rpm SATA
  • 128 GB M.2 SSD
• Display: 39.6 cm (15.6") diagonal FHD IPS UWVA anti-glare WLED-backlit (1920 x 1080)
• Keyboard: Full-size island-style backlit keyboard with numeric keypad
• Pointing device: HP Imagepad with multi-touch gesture support
• Wireless connectivity: Intel® 802.11ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo (Miracast compatible)
• Network interface: Integrated 10/100/1000 Gigabit Ethernet LAN
• Expansion slots: 1 multi-format SD media card reader
• External ports: 1 HDMI; 1 headphone/microphone combo; 1 USB 2.0; 2 USB 3.1 Gen 1, 1 RJ-45
• Minimum dimensions (W x D x H): 38.2 x 25.3 x 2.45 cm
• Power supply type: 150 W AC power adapter
• Battery type: 3-cell, 61.5 Wh Li-ion
• Webcam: HP Wide Vision HD Camera with dual array digital microphone
• Audio features: Bang & Olufsen; HP Audio Boost; Dual speakers

Software:

• Operating System: Windows 10 Home 64
• Software Included: McAfee LiveSafe™
