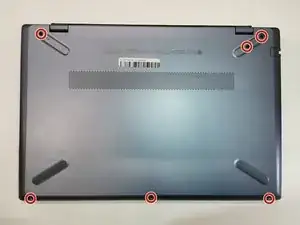

Back Cover

Back Cover

 en

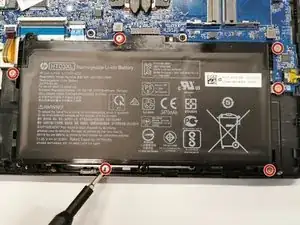

Battery

Battery

 en

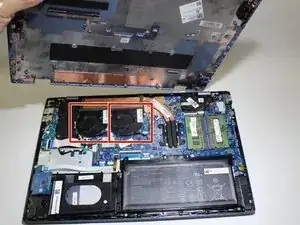

Cooling Fan

Cooling Fan

 en

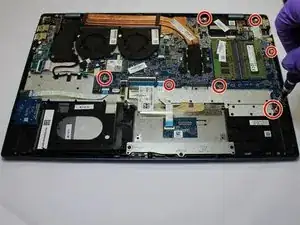

Motherboard

Motherboard

 en

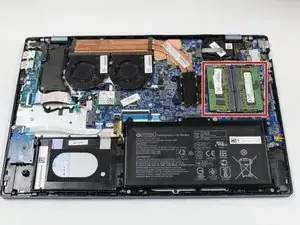

RAM

RAM

 en

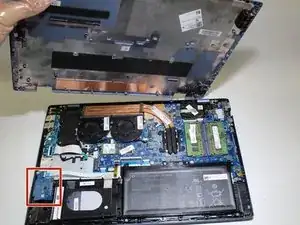

SD Card Reader

SD Card Reader

 en

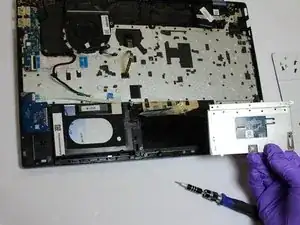

Touchpad

Touchpad

 en

Werkzeuge

Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.

Background and Identification

The HP Pavilion 15-cs2073cl is a part of the HP Pavilion series. The HP Pavilion line of computers was launched in 1995 with the Pavilion PC, HP’s first home computer. The Pavilion brand includes notebooks, laptops, and desktop computers.

The HP Pavilion 15-cs2073cl includes a 15.6-inch touchscreen display with a resolution of 1920 by 1080 pixels. The display features in-plane switching (IPS). The laptop includes a 1.3 GHz Intel Core i7-1065G7 Quad-Core processor and 16 GB of RAM and a 1 TB 5400 RPM hard drive. An NVIDIA GeForce MX250 graphics card is built into the laptop. The HP Pavilion 15-cs2073cl model features a Band & Olufsen stereo speaker system, and an external monitor can be connected to the laptop’s HDMI port.

The 15-cs2073cl model includes two USB 3.1 Type-A ports, a USB 3.1 Type-C port, an HDMI 1.4b output, and a 3.5 mm headphone/microphone input/output. The laptop can support one SD media card.

To find your exact model of HP Pavilion 15, look for the serial number and/or the model number. This is often on the bottom or side of the laptop, or in the battery compartment if the battery is removable. You can enter these numbers into the HP support website for troubleshooting and specifications.

Technical Specifications

Operating System: Windows 10 Home (64-Bit)

Performance:

  • CPU: 1.3 GHz Intel Core i7-1065G7 Quad-Core
  • Maximum Boost Speed: 3.9 GHz
  • L3 Cache: 8 MB
  • Memory Type: 2666 MHz DDR4
  • Total Installed Memory: 16 GB
  • Memory Configuration: 2 x 8 GB (User-Replaceable)
  • Memory Slot Type: 260-Pin SO-DIMM
  • Memory Slots: 2 (0 Available)
  • Buffered Memory: No
  • ECC Memory: No
  • Graphics Type: Dedicated
  • GPU: NVIDIA GeForce MX250 with 4 GB GDDR5 VRAM

Display:

  • Panel Type: IPS
  • Size: 15.6"
  • Aspect Ratio: 16:9
  • Resolution: 1920 x 1080
  • Touchscreen: Yes
  • Finish: Glossy
  • Maximum Brightness: 250 cd/m2
  • Color Gamut: 45% NTSC
  • Adaptive-Sync Technology: None
  • Viewing Angle (H x V): 178 x 178°

Storage and Expansion:

  • 2.5" Slots: 1 x Height Unspecified (In Use)
  • Total Installed Capacity: 1 TB
  • Hard Disk Storage: 1 x 1 TB 2.5" SATA (5400 rpm)
  • Optical Drive: None

I/O:

  • Ports: 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)
  • USB Type-C Ports: 1 x USB 3.1 / USB 3.2 Gen 1
  • Display: 1 x HDMI 1.4b Output
  • Audio: 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output
  • Built-In Speakers: 2
  • Built-In Microphones: 2
  • Media Card Slots: 1 x SD (Unspecified Type)

Communications:

  • Ethernet: 1 x RJ45 (Gigabit)
  • Wi-Fi: Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz)
  • MU-MIMO Support: 2 x 2
  • Bluetooth: 5.0
  • GPS: None
  • NFC: No
  • Webcam: User-Facing: 720p

Battery:

  • Battery Chemistry: Lithium-Ion
  • Capacity: 3-Cell: 41 Wh

Keyboard & Mouse:

  • Keyboard: Backlight, Number Pad
  • Pointing Device: TouchPad

General:

  • Security: Kensington Lock Slot
  • Power Supply: 65 W
  • Dimensions: 14.23 x 9.66 x 0.7" / 36.14 x 24.54 x 1.78 cm
  • Weight: 4.25 lb / 1.93 kg
