Battery
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
If you are experiencing issues with this device, try referring to the troubleshooting page.
Background and Identification

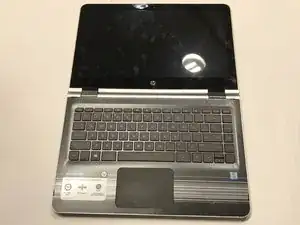

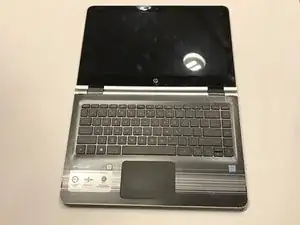

The HP Pavilion x360 m3-u101dx is a convertible laptop by HP released in 2016. This laptop functions as both a laptop and can be folded into a tablet with it’s 13.3 inch LCD touchscreen, which has a resolution of 1366 x 768. It is a thin but sturdy laptop, bearing various ports, including two 2.0 USB ports, one 3.0 USB port, an HDMI output port, and an SD-memory card reader. In January 2018, HP announced that this and some other HP devices were being recalled due to safety issues with the battery. The main problem is overheating and being a potential fire hazard.
The device has a silver exterior with a black interior, and the model number can be located underneath the device in the top-center above the fan vents.
Specifications
Microprocessor
Intel® Core™ i3-7100U (2.4 GHz, 3 MB cache, 2 cores)
Graphics
Intel® HD Graphics 620
Memory
6 GB DDR4-2133 SDRAM (1 x 2 GB, 1 x 4 GB)
Hard Drive
500 GB 5400 rpm SATA
Display
13.3" diagonal HD IPS UWVA WLED-backlit multitouch-enabled edge-to-edge glass (1366 x 768)
Ports
1 HDMI; 1 headphone/microphone combo; 1 USB 2.0; 2 USB 3.1 Gen 1 (Data transfer only)
Battery
3-cell, 41 Watt hour Lithium-ion
Power Supply
45 W AC power adapter
Wireless Connectivity
Intel 802.11ac (1x1) and Bluetooth 4.0
Physical Dimensions
Width: 12.9”
Depth: 8.8”
Height: 0.9”
Weight: 3.7lbs
Operating System
Windows 10 Home 64
