Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
Hewlett-Packard (HP) manufactures consumer electronics, including laptops, desktops, printers, monitors, and more. HP originated in 1939 when Bill Hewlett and David Packard, two Stanford electric engineering alums, combined their last names and began their new company out of a garage in Palo Alto, California. Interestingly, HP was just a coin toss away from being called PH (Packard-Hewlett). Hewlett-Packard today is still headquartered in Palo Alto, but the company supplies electronics worldwide.
Among HP consumer electronics is the HP TouchSmart IQ500 Series. The TouchSmart IQ500 is a touchscreen, all-in-one desktop computer with a wireless keyboard and mouse. The left side of the IQ500 includes two USB ports in addition to microphone and headphone audio jacks. A light switch is also included on the side of the computer which can be used to illuminate the keyboard. The right side of the PC includes a slot-loading DVD drive, volume controls, a memory card reader, and a four-pin FireWire port. Additional ports, including three more USB ports, Ethernet, an audio-out port, and an RF aerial socket, are located at the rear of the system, hidden behind a flap.
The TouchSmart IQ500 includes 4 GB of RAM and a 32-bit operating system. It features a 22-inch touch-sensitive display that uses a set of LEDs around the screen to detect the movement of a user’s fingers.
Technical Specifications
Display: 55.88 cm (22 inches) LCD panel display with touchscreen

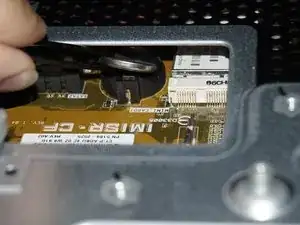

Motherboard: IMISR-CF (Eve)
Processor: Intel Core 2 Duo T5850
Memory: 4 GB
Video Graphics: NVIDIA GeForce 9300M GS
TV-Tuner: AVerMedia DVB-T/PAL A326 hybrid (software encoder)
Networking:
- LAN: 1000-Base-T
- 802.11 wireless b/g/n PCI-Express Mini card
Hard Drive: 500 GB
CD/DVD Disc Drive: Super-multi Slimslot DVD drive
Memory Card Reader: 5-in-1 multimedia card reader
Power Supply: 180W
Keyboard, Mouse, and Input Devices:
- HP 2.4 GHz wireless keyboard
- 2.4 GHz wireless optical mouse
