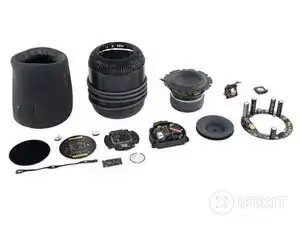

HomePod Disassembly
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The HomePod is Apple's first entry into the smart speaker market, first released on February 9, 2018. Notable features including a beamforming seven-tweeter array, high-excursion 4" woofer, and a cylindrical "acoustic mesh" enclosure. Apple includes an A8 chip as the brains of the speaker, while Siri and a top-mounted touchpad comprise the user interface.
Specifications
Measurements:
- 6.8" (172 mm) x 5.6" (142 mm)
- 5.5 lbs (2.5 kg)
Audio Hardware:
- 4" woofer with 20 mm p-p excursion, with custom amplifier
- Horn-loaded, seven beamforming tweeter array, each with custom amplifier
- Six beamforming microphone array
- Internal low-frequence microphone for woofer calibration
Touch Interface:
- + and - for volume up and down
- Hold for Siri
- Tap to play/pause music
- Double-tap to skip forward
- Triple-tap to skip backward
Wireless Connectivity:
- 802.11ac Wi-Fi with MIMO
- Direct guest access
- Bluetooth 5.0
