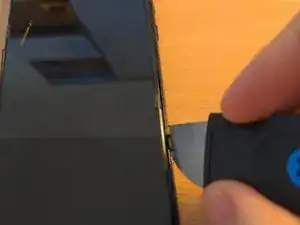

Touchscreen Assembly
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Background and Identification
The Huawei P smart Android smartphone was produced by Huawei, a Chinese electronics manufacturer, as part of the P series in January 2019. It was released in black, light blue, medium blue, and red body colors.
The P smart includes either 32 GB or 64 GB of internal storage and 3 GB of RAM. It features hybrid Dual SIM capabilities, meaning that two Nano-SIM cards can be inserted into the device and one can be in standby while the other operates normally. It also includes dual main cameras, one 13-megapixel camera, and one 2-megapixel camera for depth. It features a 16-megapixel or 8-megapixel selfie camera. The P smart includes a non-removable 3400 mAh battery and 10-Watt fast charging capabilities ( a non-removable battery is one whose adhesive is permanent, making repair and replacement difficult).
The P smart has a 6.21-inch display with a resolution of 1080 by 2340 pixels. It has a glass front and a plastic back and frame. Reviews of the P smart have found that the plastic backing scratches very easily, so it’s a good idea to put a case on this device. The P smart includes the name “Huawei” in capital letters in the bottom left corner of the phone’s backing. It also includes the words “AI Camera” in capital letters underneath the camera assembly on the back of the phone.
Technical Specifications
Models: POT-LX1, POT-LX1AF, POT-LX2J, POT-LX1RUA, POT-LX3
Release date: January 2019
Body:
- Dimensions and Weight: 155.2 x 73.4 x 8 mm (6.11 x 2.89 x 0.31 in),
160 g (5.64 oz) - Build: Glass front, plastic back, plastic frame
- SIM: Hybrid Dual SIM (Nano-SIM, dual stand-by)
Display:
- Type: LTPS IPS LCD capacitive touchscreen, 16M colors
- Size: 6.21 inches, 94.7 cm2 (~83.1% screen-to-body ratio)
- Resolution: 1080 x 2340 pixels, 19.5:9 ratio (~415 ppi density)
Platform:
- OS: Android 9.0 (Pie), EMUI 9.1, Google Play Services
- Chipset: Kirin 710 (12 nm)
- CPU: Octa-core (4x2.2 GHz Cortex-A73 & 4x1.7 GHz Cortex-A53)
- GPU: Mali-G51 MP4
Memory:
- Card slot: microSDXC (uses shared SIM slot)
- Internal: 32GB 3GB RAM, 64GB 3GB RAM
- eMMC 5.1
Main Camera:
- Dual:
- 13 MP, f/1.8, PDAF
- 2 MP, (depth)
- Features: LED flash, HDR, panorama
- Video: 1080p@30/60fps
Selfie Camera:
- Single: 16 MP or 8 MP, f/2.0
- Features: HDR
- Video: 1080p@30fps
Sound:
- Loudspeaker: Yes
- 3.5 mm jack: Yes
Communications:
- WLAN: Wi-Fi 802.11 b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
- Bluetooth: 4.2, A2DP, LE
- GPS: Yes, with A-GPS, GLONASS, BDS
- NFC: Yes (POT-LX1)
- Radio: FM radio
- USB: micro USB 2.0, USB On-The-Go
Features:
- Sensors: Fingerprint (rear-mounted), accelerometer, proximity, compass
Battery:
- Non-removable Li-Ion 3400 mAh battery
- Charging: Fast-charging 10W
Miscellaneous:
- Colors: Midnight Black, Aurora Blue, Sapphire Blue, Coral Red
- SAR EU: 0.83 W/kg (head)
