LG CU515

Visit the troubleshooting page to view possible solutions to common hardware issues with the LG CU515.

The LG CU515 clamshell model is similar to that of the CU500 and features a sleeker, lighter design with a glossy front.

Upgrades to this model are a faster HSDPA 3G data and Push To Talk. It has a two displays, a 1.3 megapixel camera, stereo Bluetooth, microSD memory card slot, and 3G video sharing.

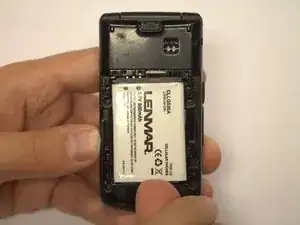

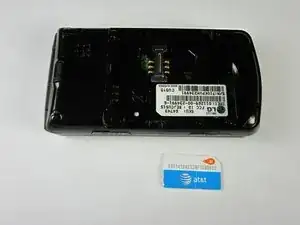

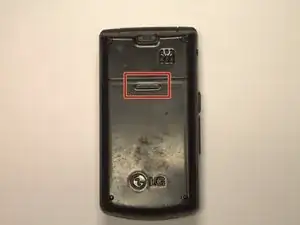

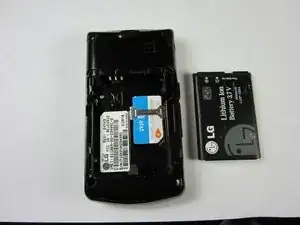

The model number can be found by removing the back battery cover and removing the battery. The model number is found in the lower right corner of the information sticker with bar codes.

• Weight: 3.36 oz (95g)
• Dimensions: 3.78" x 1.95" x 0.72" (96 x 50 x 18.3 mm)
• Battery:
  • Talk Time: 3.5 hours max. (210 minutes)
  • Standby Time: 398 hours max. (16.6 days)
  • 1000 mAh Lilon removable battery
• Display:
  • Inside
    • Type: LCD (Color TFT/TFD)
    • Resolution: 176x220 pixels
    • 2" diagonal
  • Front
    • Type: LCD (Color TFT/TFD)
    • Resolution: 96x64 pixels
    • 0.98" diagonal
  • Colors: 65,536 (16-bit)
• Memory: 55MB internal storage
• Phone Book Capacity: 500 entries
• FCC ID: BEJCU515 (Approved August 14, 2007)

• Accessibility
  • Digital TTY/TDD
  • Hearing Aid Compatible
  • Multiple Languages
• Alerts
  • External Display
  • Polyphonic Ringtones
  • Vibrate
• Connectivity
  • Bluetooth
  • USB
• Contacts
  • Multiple Numbers per Name
  • Picture ID
  • Ringer ID
• Customization
  • Custom Graphics
  • Custom Ringtones
  • Real-Music Ringers
• Data & Network
  • Data Tethering
  • Flight Mode
  • High-Speed Data
  • WAP/Web Browser
• Input
  • Predictive Text Entry
  • Side Keys
  • Memory
  • Memory Card Slot
• Messaging
  • Email Client
  • Instant Messaging
  • MMS
  • Text Messaging (SMS)
  • Text Messaging Templates
• Music
  • Music Player
• Photo & Video
  • Camera
  • Streaming Video
  • Video Capture
  • Video Sharing
• Productivity
  • Alarm
  • Calculator
  • Calendar
  • To-Do List
  • Voice Memo
• Software
  • Games
  • Java (J2ME)
• Voice
  • Push-To-Talk
  • Speaker Phone

Visit the AT&T specifications webpage to view specific specifications and features.

Visit the LG specifications webpage to view specific specifications and features.

Visit the Bing images webpage to view images of the LG CU515 SKU 64743 device.

Visit Google Parts to search parts to purchase for the LG CU515 SKU 64743 Device.

Visit Google Parts to find accessories to purchase for the LG CU515 SKU 64743 Device.
