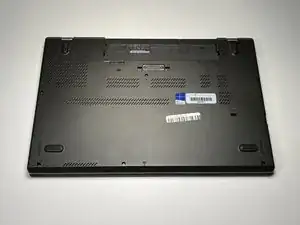

Back Panel
Werkzeuge
Es werden einige allgemeine Werkzeuge verwendet, um an diesem Gerät zu arbeiten. Du wirst nicht jedes Werkzeug für jeden Vorgang benötigen.
Troubleshooting
For additional help with this device, go to the Lenovo ThinkPad T560 Troubleshooting Page.
Background and Identification

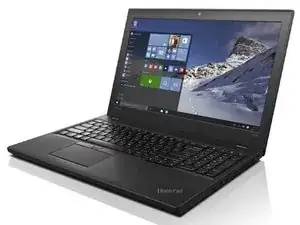

The Lenovo Thinkpad T560 is part of the T-series of Lenovo laptops. This device came out in February 2016, but it is now discontinued on Lenovo’s website. This laptop was made for productivity with a longer battery life, lighter weight, thinner profile, and better graphics. To check if your laptop is a T560, look underneath the bottom right corner of your laptop’s screen. There should be a label indicating what model number your laptop is.
This laptop features an Intel 6th Gen Core processor, along with up to 32 Gb of memory. It has a 15.6 inch anti-glare screen. The T560 also has two batteries: an external battery, and an internal battery. The external battery is easily detachable, so you could have multiple external batteries charged to make it last longer without recharging. It has multiple ports including an HDMI port, an Ethernet port, and 3 USB ports. Most of these laptops run with the Windows 10 operating system.
Specifications
Processor: Intel® Core™ i5-6200U Processor (3M Cache, 2.3GHz), Turbo Boost 2.0 (2.8GHz)
Operating System: Windows 10 Pro
Display: 5.6" HD (1366 x 768), anti-glare, 220 nits, 16:9 aspect ratio, 400:1 contrast ratio
Graphics: Intel HD Graphics in processor only
Memory: Up to 32GB, PC3-12800 1600MHz DDR3L, non-parity, dual-channel capable, 2 x SO-DIMM sockets
Storage: SSHD with 8GB NAND flash memory: 500GB
Weight: 2.25 kg
Battery: 3-cell Li-Polymer front battery (44Wh) + 3-cell Li-Ion rear battery (23.2Wh)
Webcam: Integrated 720p HD Camera, low light sensitive, fixed focus
